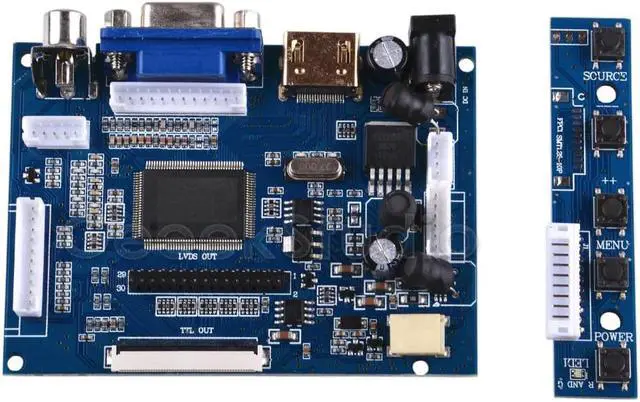

Raspberry 7 inch LCD Display 1024*600 TFT Monitor Screen with Drive Board for Raspberry 2 / 3 Model B / 4 B

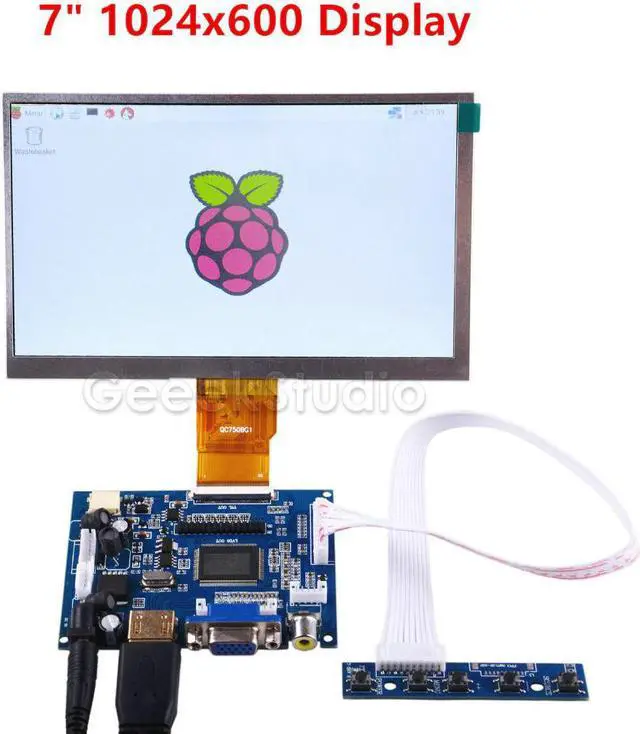

7 inch 1024*600 LCD Display Kit

User Manual:

wiki.52.com/index.php/7-Inch-1024x600_Display_Kit_(without_Touch_Screen)_SKU:Z-0051

Click here to buy:

Acrylic bracket for this 7 inch LCD Screen.

7 inch 1024*600 LCD Touch Screen.

Compatibility List:

Compatibility

Features:

Operating voltage: 5V (current requirement 1A-2A), for example car power need to add a 5V regulator

Rated power: 6-7W

Signal input: AV + VGA + ( 1.2)

Support 5V DC voltage input, you can use USB, or power bank, but the positive and negative can not be reversed, to avoid damage the circuit board

Resolution: 1024 * 600

Plug and Play: Support

OSD language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese

Control: Multi-function OSD operation or potentiometer adjust the brightness and color

Features: Using mature program, clear display

Support image flip up and down, the image can conversion 4: 3 / 16: 9 display format

LCD screen parameters:

Display size: 7 inch

Touch screen: Not support

Dimensions: 165 (W) × 100 (H) × 5 (D) mm

Viewing area: 154.08 (H) × 85.92 (V)

Resolution: 1024 × 3 (RGB) ×600

Point distance: 0.05 (W) × 0.15 (H) mm

Viewing angle: L70 ° R70 ° U50 ° D60

Panel type: TFT

Display color: 262K

Contrast ratio: 500: 1

Brightness: 220cd / m2

Interface type: Digital

The number of connection: 50 N Digital (TTL) TCON

Backlight: LED

Applications: mobile DVD, digital photo frame, car systems, multimedia applications and other audiovisual systems

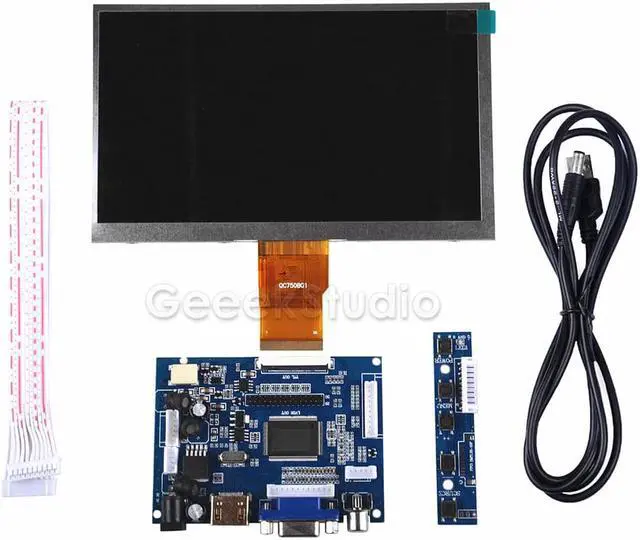

Package includes:

FAQ
