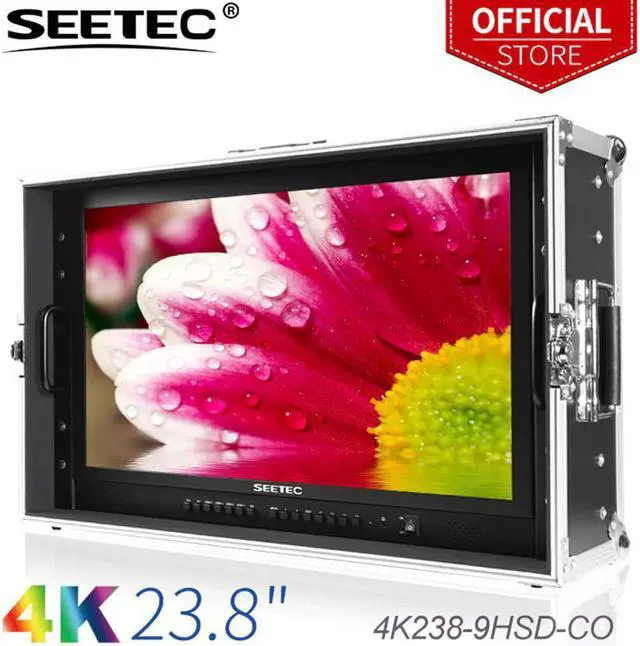

4K238-9HSD-CO 23.8" 4K 3840x2160 UHD Broadcast Monitor for CCTV Monitoring Making Movies Carry-on LCD Monitor

SDI Support Format

480i/576i

720p(60/59.94/50/30/29/25/24/23.98)

1080i(60/59.94/50)

1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

Support Format

2.0: 4K UHD 2160p (23.98/24/25/29.97/30/50/59.94/60) 1.4: 4K UHD 2160p (23.98/24/25/29.97/30)

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

General

Input Voltage

DC13~18V

Power Consumption

42W

Working Temperature

10°C~50°C

Storage Temperature

20°C~60°C

Unit Size (mm)

627L×372H×39D (mm) (W/O Suitcase) / 710L×405H×270D (mm) (W/ Suitcase)

Unit Weight

16kg (with Suitcase)

Advanced Features

Quad Slip Display (1P, 2P LR, 2P TB, 2P PIP, 4P)

Peaking Focus Assist

Overscan

Display Rotate (0°, 90°, 180°, 270°)

Check Field (Red, Green, Blue)

Image Freeze

Zoom

Aspect Ratio (Full Screen, 16:9, 4:3, 1:1)

Center Marker

Screen Marker (80%, 85%, 90%, 93%, 96%)

Line Color (Red, Green, Blue, White)

Color Temperature Adjustment

Built-in LED tally indicators (Red, Green, Yellow)

Dimensions (Unit: mm)

More Auxiliary Functions More professional functions assist users to accurately monitor when shooting, making and playing movies/ videos.

23.8" 4K Ultra-HD Resolution The 4K resolution (3840 x 2160) 23.8" LCD monitor delivers an immersive 4K experience for images and video, bring unbeatable image clarity in cinematic display.

Quad Slip LCD Display

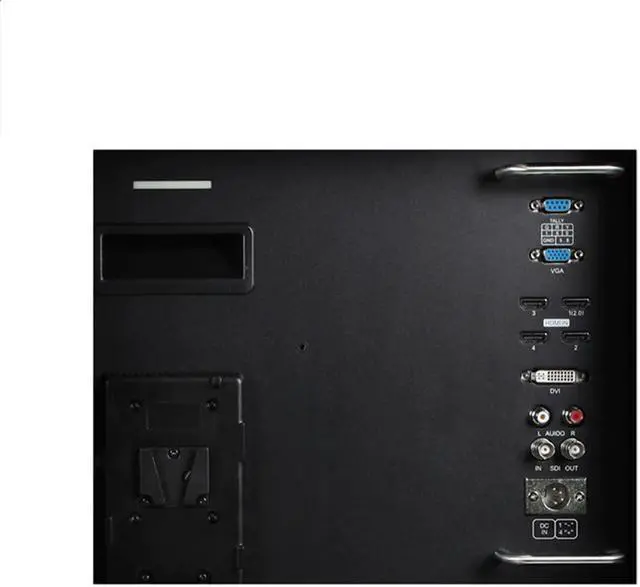

Multiple Inputs and Outputs

Output:1 X SDI
