4.3inch Capacitive Touch LCD 800x480 multicolor graphic LCD display IPS 24-bit RGB

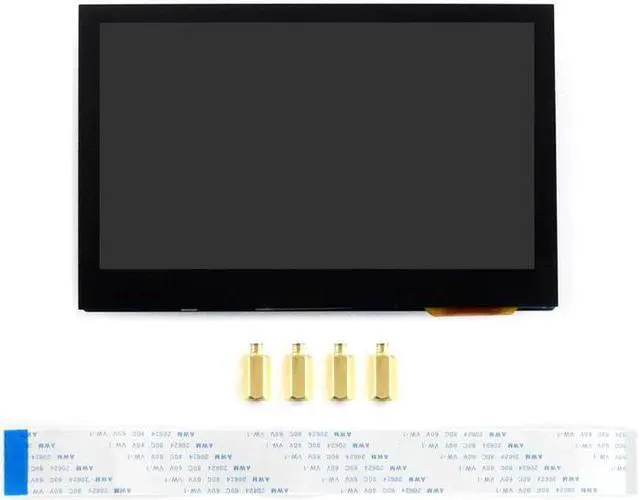

Overview

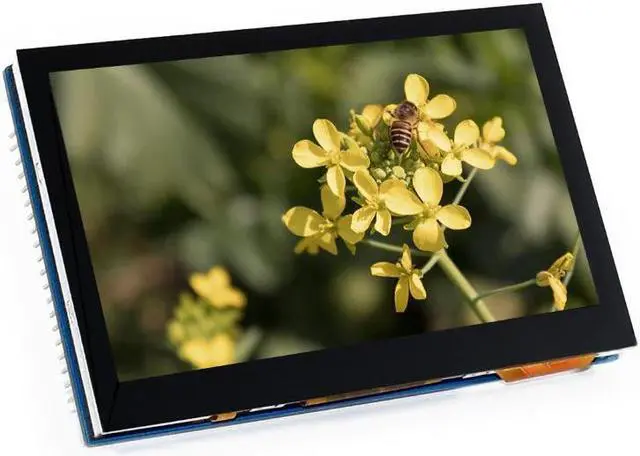

This is a multicolor graphic LCD display, 4.3inch diagonal, 800x480 pixels.

It is able to display 16,777,216 colors via the 24-bit RGB interface, supports up to 5-points capacitive touch control via I2C interface.

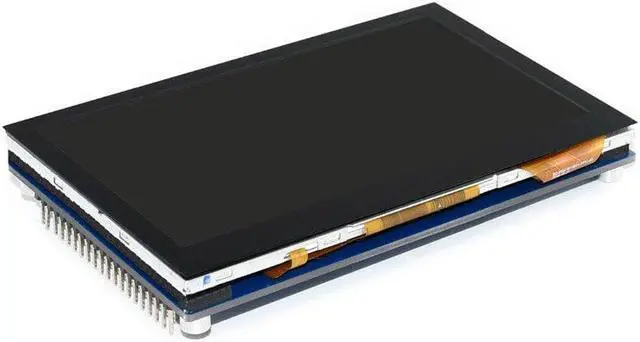

Features

4.3inch capacitive touch display, 800x480 HD resolution

Capacitive touch panel on the I2C bus, 5-points touch control, with touch interrupt

24-bit RGB display interface, 16,777,216 colors, fast refreshing

Comes with development resources and manual (examples for STM32F4 / STM32F7)

Key Parameters

LCD Type

IPS

LCD Interface

24-bit RGB

Touch Screen Interface

I2C

Display Colors

16,777,216

Touch Controller

GT911

Display Size (mm)

95.04 (W) × 53.86 (H)

Dot Pitch (mm)

0.1188 (W) × 0.1122 (H)

Backlight

LED

Resolution

800 × 480 (Pixel)

Power Supply Voltage

5V

Logic Level

3.3V

Interface Definition

SYMBOL

DESCRIPTION

TYPE

FUNCTION

5V

Power supply

Power

5V

GND

Ground

GND

3.3V

Power supply

3.3V

R0~R7

Data line

Input

Red data

G0~G7

Data line

Input

Green data

B0~B7

Data line

Input

Blue data

CLK

LCD clock

Input

LCD clock signal

DISP

Backlight control enable

Input

Enable/Disable backlight control

HSYNC

Horizontal synchronization

Input

Horizontal synchronous signal input

VSYNC

Vertical synchronization

Input

Vertical synchronous signal input

DE
