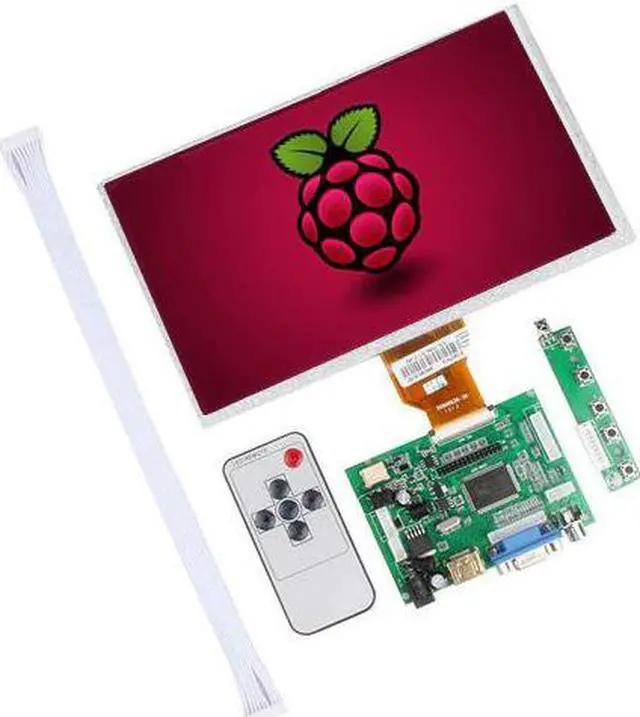

9.0 inch Orange Pi PC Banana Pi M3/Pro LCD Display Screen TFT LCD Monitor AT090TN10 + Kit VGA Input Driver Board

9.0 inch Orange Pi PC Banana Pi M3/Pro LCD Display Screen TFT LCD Monitor AT090TN10 + Kit VGA Input Driver Board

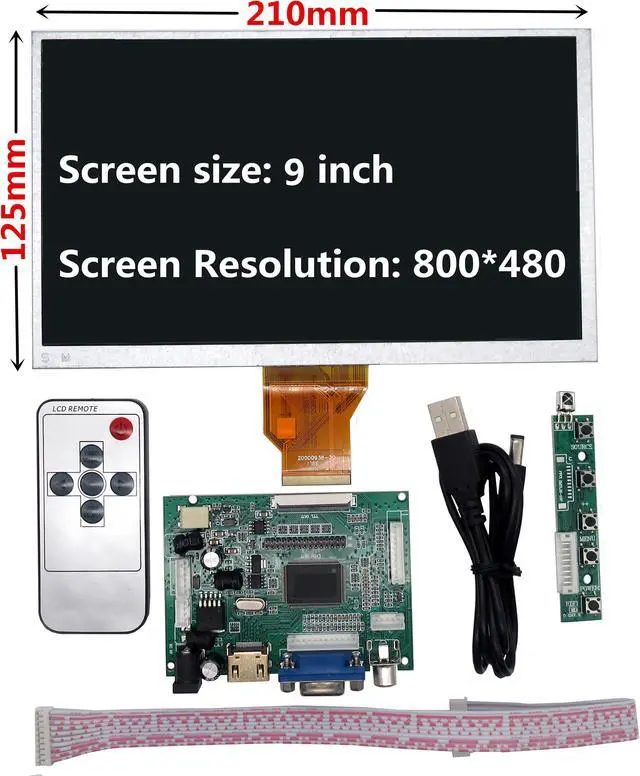

screen size:9inch

length:210mm   width:126mm   thickness:3mm

without touch Screen)

Product description

General Specifications

LCD size: 9.0 inches(Diagonal)

Driver element: a-Si TFT active matrix

Resolution: 800*3(RGB)*480

Display mode: Normally white, Trans-missive

Dot pitch: 0.05(W) x 0.15(H) mm

Interface: Digital

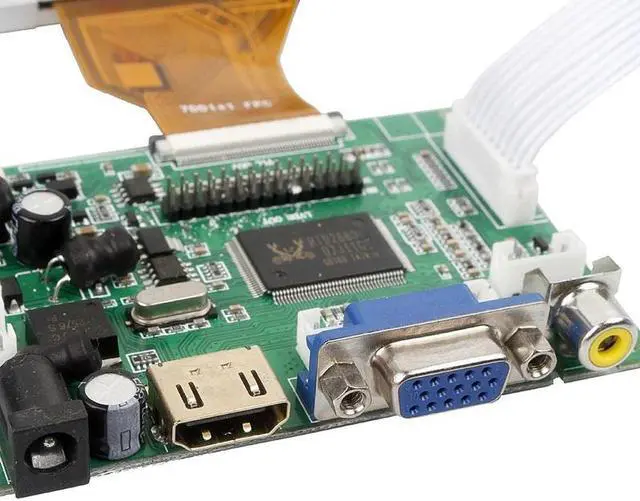

Driver Board Interfaces

1.Power supply(5-12V 2A), The LCD Panel donot include power charger, you can order Kuman 12V 2A power supply (Asin:B01GDX6PW4 )from usThe LCD Panel donot include power charger, you can order Kuman 12V 2A power supply (Asin:B01GDX6PW4 )from us.

2.

3.VGA Connector

4.AV1

5.AV1+AV2

6.Keyboard

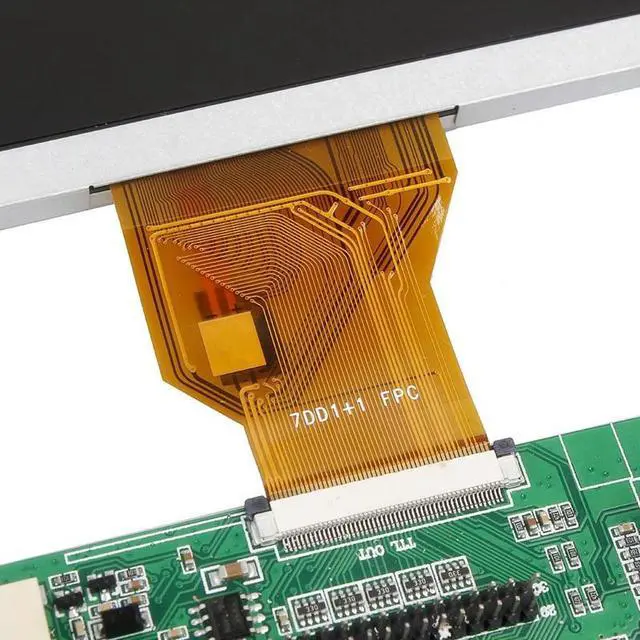

7.TTL Signal

8.LVDS Signal 1/2 ch 6bit 8bit

9.12V Backlight

10.Inverter Connector

Notice 1: Power supply NOT included,without Touch Panel, if need Touch Panel, please contact us.

Notice 2: This controller board support Automatically switch to AV2 (View Reversing camera).

Operating voltage: Power supply(5-12V >1A ), can be directly from the computer USB port or power bank!(special reminder: the use of the power plug polarity requirements for: inside positive and outside negative-Positive and negative can not be reversed, so as not to damage the circuit board)

Notice 3: The five buttons are as follows: S1 = Power, S2=Menu/Select, S3=Up, S4=Down, S5=Video Source Select
