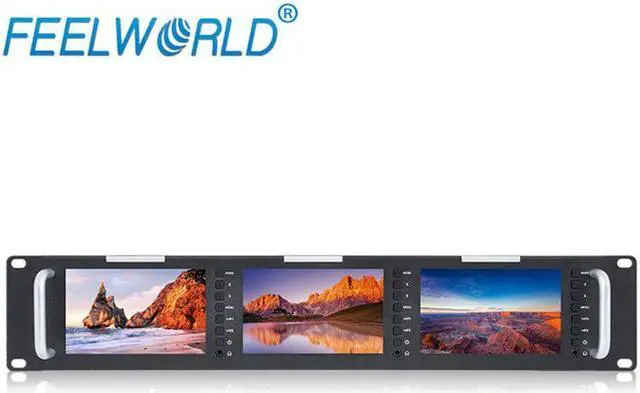

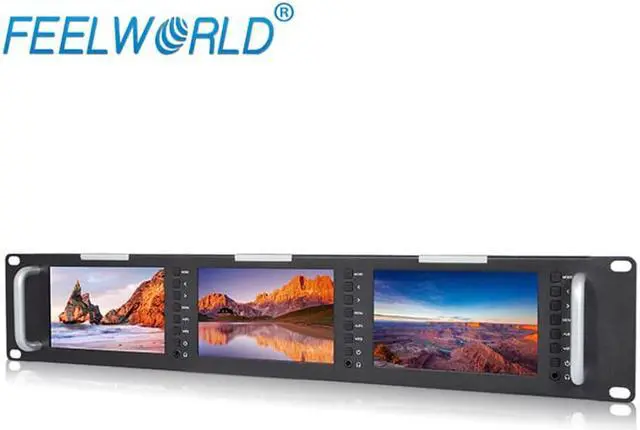

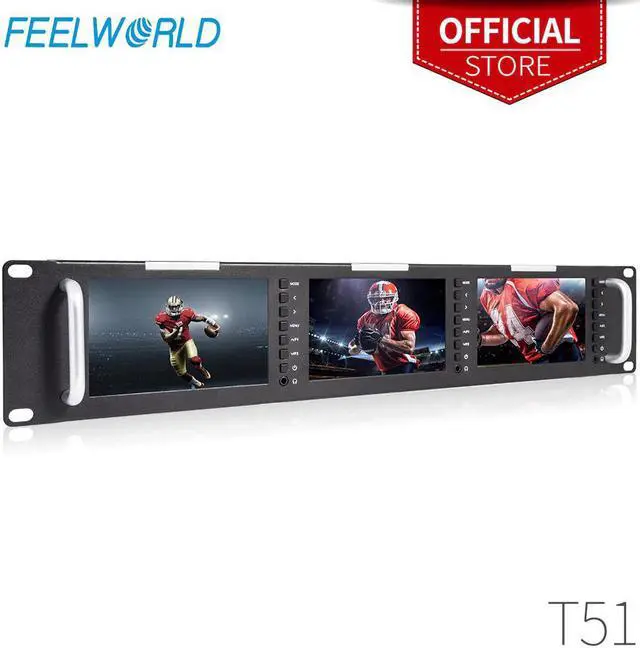

T51 Triple 5 Inch 2RU LCD Rack Mount Monitor with 3G-SDI AV Input and Output Broadcast Level Quality Monitors

More Parameters:

SDI Support Format

480i/576i

720p(60/59.94/50/30/29/25/24/23.98)

1080i(60/59.94/50)

1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

General

Input Voltage

DC9~24V

Power Consumption

25W

Power Connector

DC/ 4-pin XLR

Working Temperature

20°C~55°C

Storage Temperature

30°C~65°C

Install Way

Rack Mount

Unit Size

482.6Lx88Hx34D mm

Unit Weight

1570g

Advanced Features

Peaking Focus Assist(Red highlight over parts of the monochrome image in focus)

Check Field (Red,Green,Blue,Mono)

Pixel to Pixel

Center Marker

Screen Marker (80%,85%,90%,93%,96%,2.35:1)

Image Flip (H, V, H/V)

Image Freeze

Custom Color Temperature

Built-in LED tally indicators (Red, Green, Yellow)

5-inch 800×480 LCD

TFT Panel with LED backlight The D51 is made of 3× 5-inch TFT LCD panel, with 800×480 resolution and LED backlight, 500cd/m2; brightness and 500:1 contrast. The viewing angle is Horizontal: 140° / Vertical: 120°.

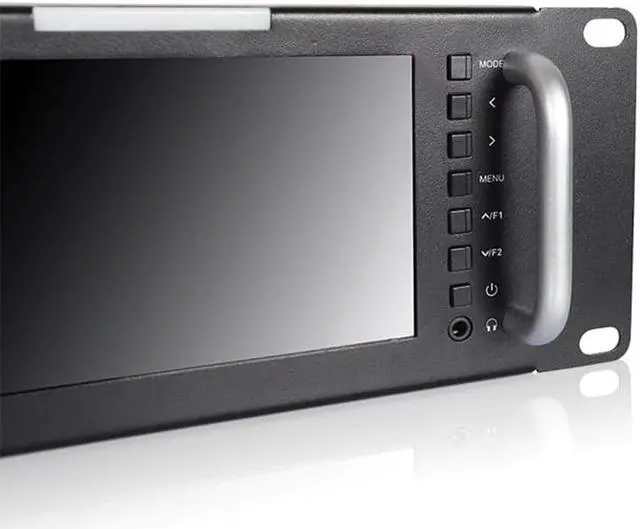

Easy to operate, time-saving

Consistent design style, the same function and operation mode setting is one of the features of the products. Users only need to know one product operation mode, you can operate the full range products, time-saving and convenient.

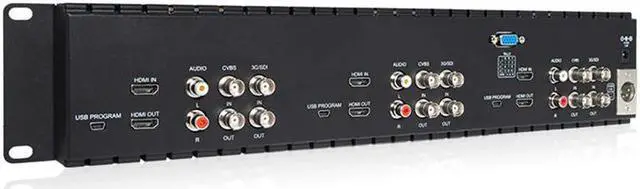

Multiple Inputs and Outputs SDI / / CVBS / Audio Each LCD of T51 monitor supports:

Output:3G-SDI X 1, X 1,Video X 1
