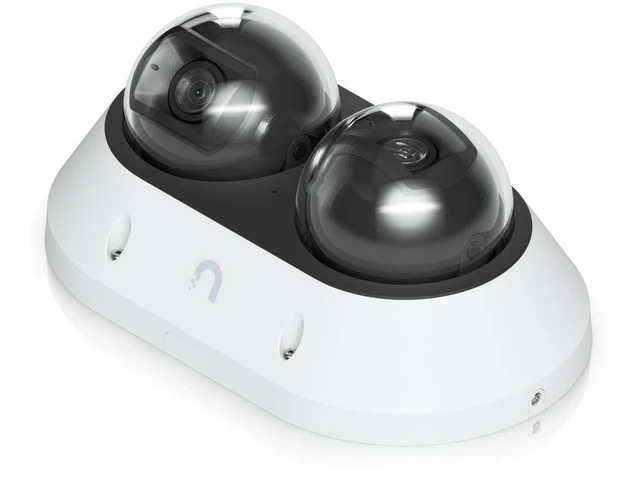

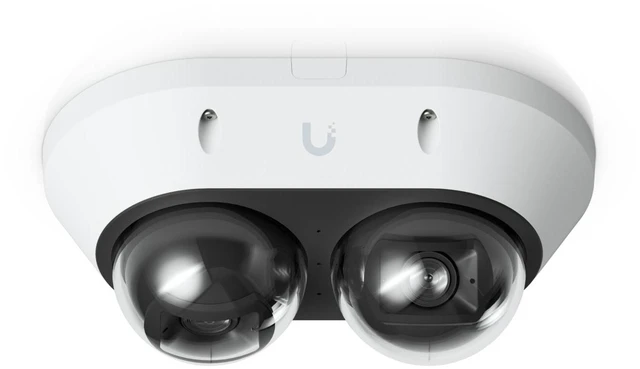

Unifi Ubiquiti Networks UVC AI Multi Sensor 2 (UVC-AI-MS-2-W)

All-weather PoE+ 16MP multi-sensor camera featuring a Multi-TOPS AI engine, 2.33× optical zoom, 20 m IR coverage, and two independently adjustable lenses for wide-area and close-up monitoring.

Overview

1. Dimensions: 218 x 132 x 93.5 mm (8.6 x 5.2 x 3.7")
2. IR Night Vision: 20 m (65 ft)
3. Zoom Mode: 2.33x Optical
4. Face Recognition:
5. License Plate Recognition:
6. Smart Detections (People, Vehicles, Animals):
7. Resolution: 16 MP
8. Field of View:
9. Wide: H: 108.8°, V: 57.6°, D: 130.8°
10. Tele: H: 42.8°, V: 24.1°, D: 49.1°
11. Audio: Microphone
12. Weatherproofing: IP66
13. Tamper Resistance: IK10
14. Mounting:
15. Ceiling, Wall, Pole mount, Conduit pipe adapter (Included)
16. Weather Shield, Arm, Pendant mount (Optional)

Performance

1. Networking Interface: GbE RJ45 port
2. Video:
3. Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
4. Max. Frame Rate: 30 FPS
5. Resolution: (2) 8MP 3840 x 2160 (16:9)
6. Optics:
7. Sensor: 1/2.8" 8MP
8. Lens: (2) F 3.187.42 mm; /1.8/2.8
9. Night Mode: Built-in adaptive IR LED illumination and IR cut filter

Hardware

1. Max. Power Consumption: 25W
2. Supported Voltage Range: 42.557V DC
3. Power Method: PoE+
4. Processor: Dual-core Arm® Cortex®-A76 based chip
5. Weight: 1.3 kg (3 lb)
6. Enclosure Material: Aluminum alloy, polycarbonate
7. Mount Material: Polycarbonate, stainless steel
8. Expansion Slot: MicroSD card
9. Button: (1) Factory-reset
10. LEDs: Status LED
11. Cable:
12. Cable Diameter: Max. 6.5 mm (0.26")
13. Ambient Operating Temperature: -20 to 50° C (-4 to 122° F)
14. Ambient Operating Humidity: 0 to 90% noncondensing
15. NDAA Compliant:
16. Certifications: CE, FCC, IC
