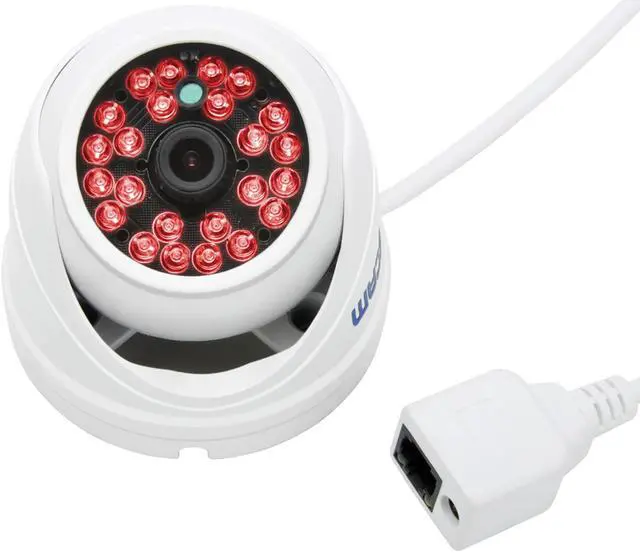

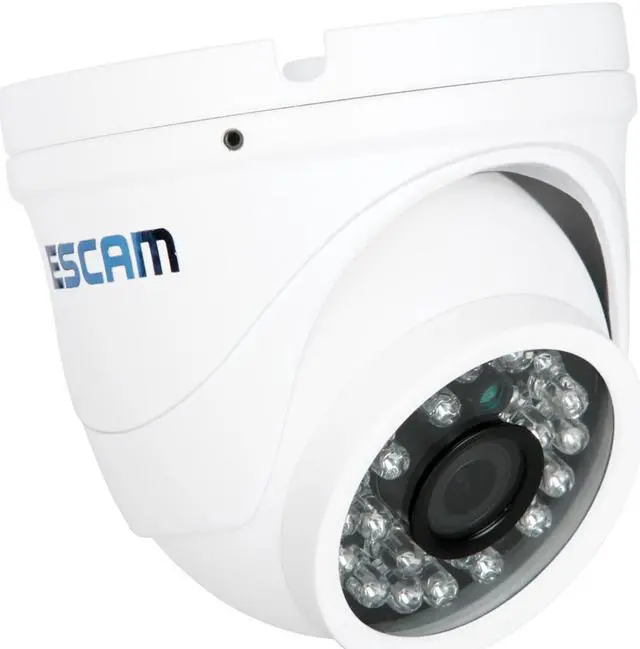

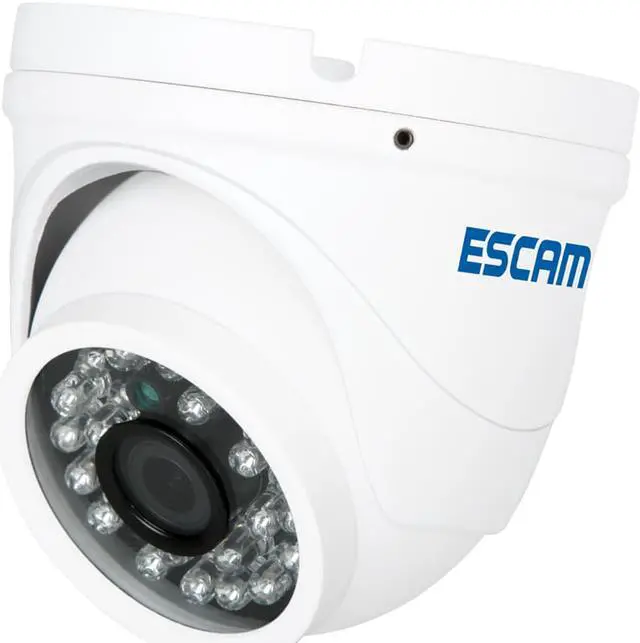

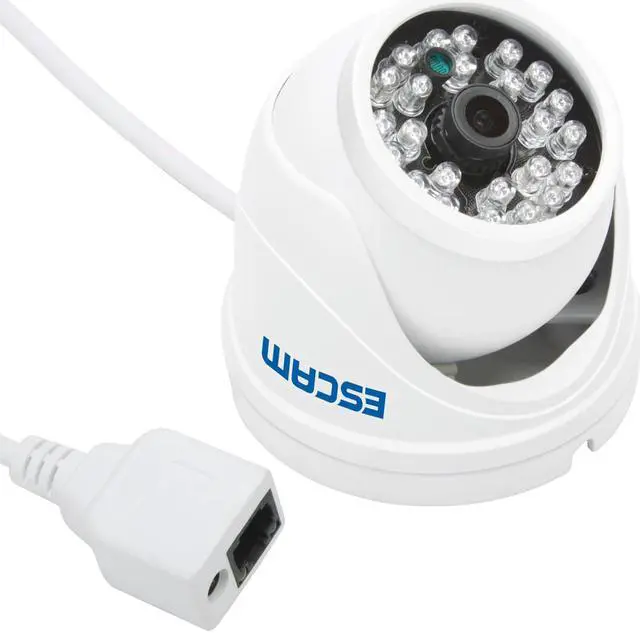

Escam QD520 IP Network Camera Support Onvif 720P H.264 3.6mm Fixed Lens P2P Security Mini Dome Camera

ESCAM Peashooter QD520
Key Features
>1/4” 1Megapixel progressive scan CMOS
>H.264 dual-stream encoding
>Max 25/30fps@720P(1280×720)
>Day/Night(ICR), 2DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS
>3.6mm fixed lens
>Max. IR LEDs Length 10m
>DC12V 1A

Model QD520
Camera
Image Sensor 1/4” 1Megapixel progressive scan CMOS
Effective Pixels 1280(H)x720(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3(4)~1/10000
Min. Illumination Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 10m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC/ HLC/ DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm
Max Aperture F1.8(F2.0/F1.8)
Focus Control Manual
Angle of View H: 70°(114°/46°/)
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264
Resolution 720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate Main Stream 720P(1 ~ 25fps)
Sub Stream D1/CIF(1 ~ 25fps)
Bit Rate H.264: 16K ~4096Kbps
Audio
Compression N/A
Interface N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
ONVIF ONVIF Profile S
Max. User Access 10 users
Smart Phone iPhone, iPad, Android,
P2P iPhone, Android Mobile App
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V 1A
POE N/A
Power Consumption <4W
Working Environment -30°C~+60°C, Less than 95%RH
Ingress Protection IP66
Vandal Resistance N/A
Dimensions F90mm x90mm
Weight 0.25Kg
Package Dimensions F120mm x 95mm
Package Weight 0.35Kg
Approvals CE FCC RoHS
