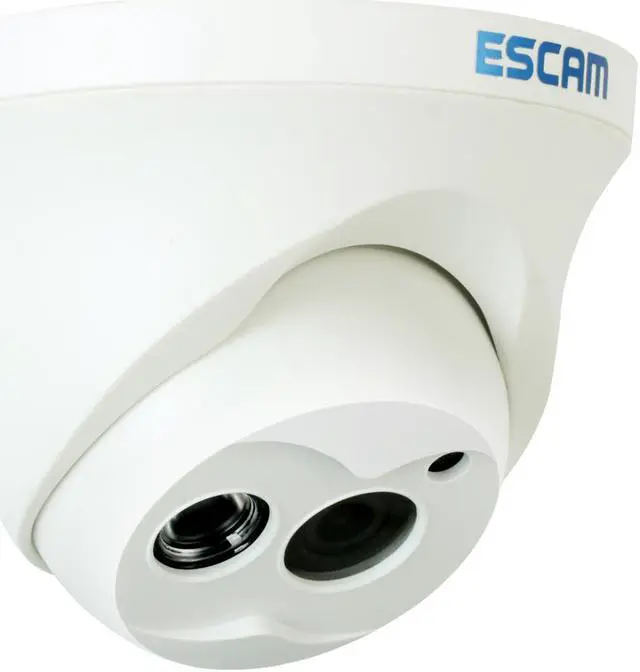

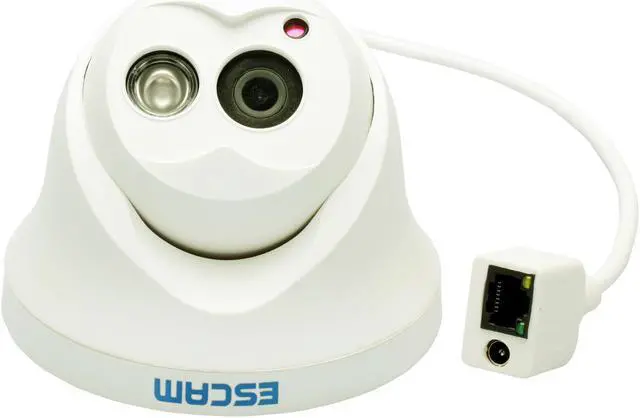

ESCAM QD100 IP Network Camera Onvif HD 720P 3.6mm Lens P2P IR Mini Dome IP Camera

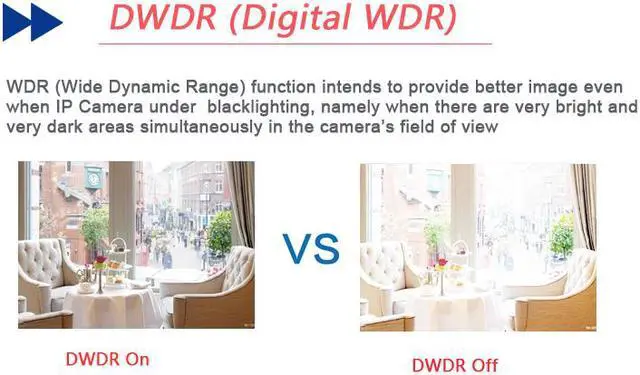

Escam OWL QD100 Key Features >1/4” 1Megapixel progressive scan CMOS >H. 264 dual-stream encoding >Max 25/30fps@720P(1280×720) >DWDR, Day/Night (ICR), 2DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS > 3.6 mm fixed lens >Max. IR LEDs Length 10m >DC12V 1A Model QD100 Camera Image Sensor 1/4” 1Megapixel progressive scan CMOS Effective Pixels 1280 (H) x720 (V) Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 (4) ~1/10000 Min.
Illumination Color: 0.
1Lux/F 1.2,
B/W: 0.01L ux/F 1.2, 0Lux (IR on) S/N Ratio More than 50dB Video Output N/A Camera Features Max. IR LEDs Length 10m Day/Night Auto (ICR) / Color / B/W Backlight Compensation BLC/ HLC/ DWDR White Balance Auto/Manual Gain Control Auto/Manual Noise Reduction 3D Privacy Masking Up to 4 areas Lens Focal Length 3.6 mm Max Aperture F 1.8 Focus Control Manual Angle of
View H: 70° Lens Type Fixed lens Mount Type Board-in Type Video Compression H. 264 Resolution 720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240) Frame Rate Main Stream 720P(1 ~ 25fps) Sub Stream D1/CIF(1 ~ 25fps) Bit Rate H. 264: 16 K ~ 4096Kbps Audio Compression N/A Interface N/A Network Ethernet RJ-45 (10/100Base-T) Wi-Fi N/A Protocol IPv4, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP ONVIF ONVIF Profile S Max. User Access 10 users Smart Phone iPhone, iPad, Android P2P iPhone, Android Mobile App Auxiliary Interface Memory Slot N/A RS485 N/A Alarm N/A PIR Sensor Range N/A General Power Supply DC12V 1A POE N/A Power Consumption <4W Working Environment -30°C~+60°C, Less than 95%RH Ingress Protection N/A Vandal Resistance N/A Dimensions F115mm x90mm Weight 0.20K g Package Dimensions 120mm x120mm x95mm Package Weight 0.35K g Approvals CE FCC RoHS
