ESCAM QD420 4MP H.265 IR 15M IP66 Waterproof Onvif 3.6mm Dome IP Camera 3.6mm Lens

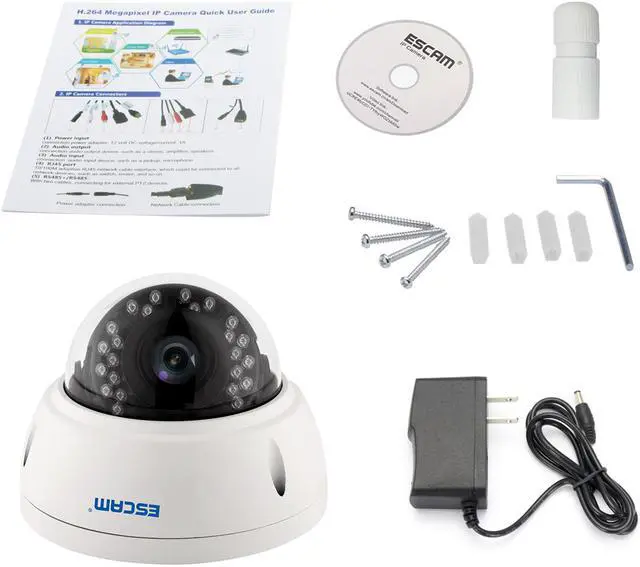

Package included:
1 x Camera
1 x CD with User Manual
1 x Installation screws
1 x Power Plug
1 x Retail Packaging Box


Model ESCAM Dome QD420
Camera
Image Sensor 1/3" CMOS
Effective Pixels Main stream:4MP 2592*1520@18fps;3MP 2048*1536@22fps
Sub-stream: 704*576 @25fps
Electronic Shutter Speed Auto/Manual, 1/3~1/10000s
Min. Illumination color [email protected],black/white [email protected]
S/N Ratio >50dB
Camera Features
Max. IR LEDs Length F5 24pcs IR Led , IR Range 15m
Day/Night Auto(ICR) / Color / B/W
Wide dynamic Support digital
White Balance Auto
Gain Control Auto
Noise Reduction Support 2D/3D
Privacy Masking yes
Lens
Focal Length 3.6mm
Max Aperture F1.6
Angle of View 75.7°
Video
Compression H.265/H.264
Frame Rate Main Stream 4MP 2592*1520@18fps;3MP 2048*1536@22fps;2MP (1920*1080) 25fps
Sub Stream 704*576 @25fps
Bit Rate Supports CBR/VBR
Network
Ethernet RJ-45 (10/100Base-T)
Protocol TCP/IP, UDP, RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , FTP , NTP , PPPOE , SMTP , UPNP
ONVIF ONVIF Ver. 2.0
Max. User Access 10users
Smart Phone iPhone, iPad, Android
General
Power Supply DC12V
Power Consumption <6W
Working Environment -10°C~+60°C, 10%~90%
Ingress Protection IP66
Dimension 130mm* 130mm*100mm
Weight 0.57KG
Package Dimension 170 mm*170 mm*180 mm
Package Weight 0.8 KG
Approvals CE FCC RoHS
