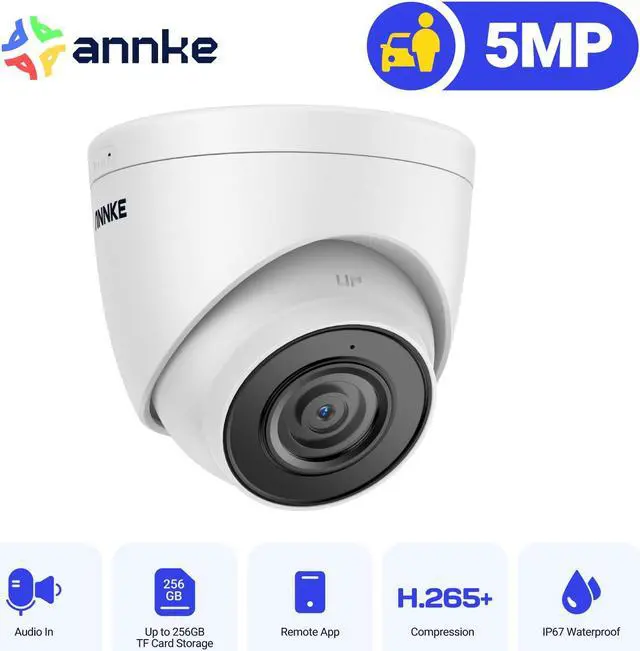

With exclusive OmniVision sensor, this 5MP PoE camera films everything via a 2.8MM wide-angle lens. Enhanced by advanced 120 dB true WDR & 3D DNR, wherever you're concerned about is crisper and has fewer blind spots than before!
This 5mp IP camera needs only ONE ethernet cable to connect with NVR for data & power transmission. (Power supply not included.) Thanks to its easy installation, you can set it at a garage, front door, store, etc., as you like. Plug & protect is that easy
This IP PoE camera records 24/7 or motion-triggered videos via a micro SD card (up to 256GB, not included) or NVR. ANNKE NVR works best with this outdoor camera, as its unique coding of H.265+ enables longer recording and less bandwidth consumption without losing 5MP quality. Great for home security.

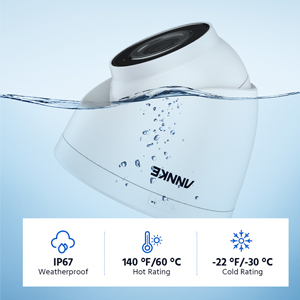

IP67-rated performance makes this 5MP outdoor IP camera withstand severe weather outdoors without compromise. From now on, be it day or night, the colored recording captures them all.
Free ANNKE Vision APP for Android and iOS sends you pushes as soon as real threats occur. With this helpful app, recording videos, taking snapshots, zooming in, and searching for playback are much easier in the palm of your hand.
Description:
3K IR Network Camera with 16:9 image scale
2.8 mm lens brings everything back to life
Efficient H. 265+ compression technology
Motion detection 2.0 with human & Vehicle Detection

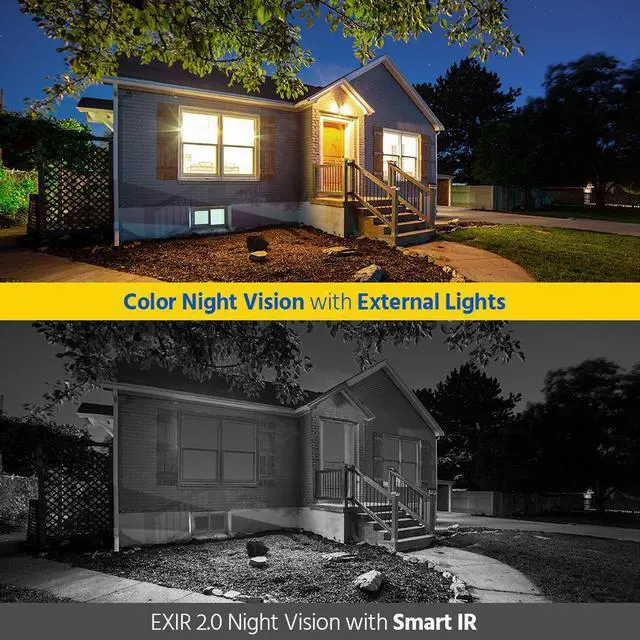

Up to 100ft night vision with EXIR 2.0
Clear day and night vision with 3D DNR and 120DB WDR
IP67 Dust and Waterproof Rating
Support PoE &DC12V "
Camera:
Image Sensor: 1/3" Progressive Scan CMOS
Max resolution: 3K (3072*1728), 16: 9 picture ratio is more suitable for the most popular display
Main Stream: "50
Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
60 Hz: 20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)"
Substream: "50
Hz: 25 fps (1280 X 720, 640 X 480, 640 X 360)
60 Hz: 24 fps (1280 X 720, 640 X 480, 640 X 360)"
Video Compression: "Main
stream: H. 265+/H. 265/H. 264+/H. 264
Sub-stream: H. 265/H. 264/MJPEG"
Video Bitrate: 32 Kbps - 6 Mbps
Audio Compression: G. 711ulaw/G. 711alaw/G. 722.1 /G. 726/MP2L2/PCM/AAC
Audio Input Built-in Microphone, record with audio
Lens: 2.8 mm
Min.
Illumination Color: 0.01 Lux @ (F 2.0, AGC ON), B/W: 0 Lux with IR
Angle of View: Horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
Number of Infrared LEDs: 2 pcs
Night Vision Distance: Up to 100 ft/30 m
Motion detection 2.0: Supoort, include Human & Vehicle detection
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: 120 dB WDR
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
ONVIF: Support
Region of Interest (ROI): 1 fixed region for main stream
Privacy Mask: 4 programmable polygon privacy masks
General Function Mirror, rotate, password protection, video tampering alarm, remote access
Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port
General:
Housing: Metal & Plastic
Color: White

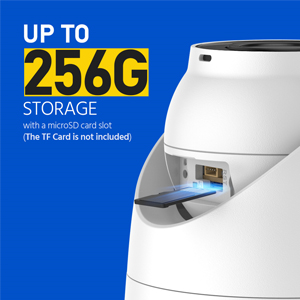

Storage: Built-in microSD/SDHC/SDXC Slot, up to 256 GB
Hardware Reset: Yes
Operating Power: DC 12 V± 25%, max. 5 W; PoE ( 802.3 af), max. 6.5 W
Operating Temperature: -22 °F 140 °F/-30 °C 60 °C
Indoor/Outdoor Use: Indoor/Outdoor
Interface Protection: IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension (L X W X H): Ø 110 × 100.8 mm (Ø 4.3" × 4.0" )
Weight: 0.6 lb. /270 g
Packaging Contents
Camera: 4
Ethernet Cable: 60 ft/18 m X2; 100 ft/30 m X2
Mounting Screw Bag: 4
User Manual for Camera: 1
