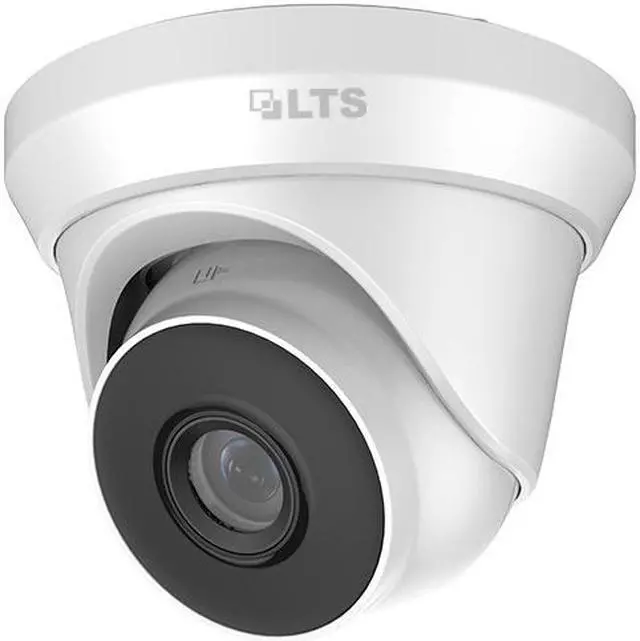

LTS CMIP1042-28 4MP H.265+ 2.8mm Wide Angle Lens 100ft Turret IP Network Dome Camera

Camera Image Sensor 1/3" Progressive Scan CMOS Min. Illumination 0.01L ux @ (F 1.2, AGC ON), 0. 028Lux @ (F 2.0, AGC ON) Shutter Speed 1/3 s to 1/10, 000 s Lens 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° Lens Mount M12 Day & Night IR cut filter DNR 3D DNR Wide Dynamic Range DWDR Angle Adjustment Pan: 0° to 360°, tilt: 0°to 75°, rotation: 0° to 360° Compression Standard Video Compression
Main stream: H. 265/H.
264,
Sub stream: H. 265/H. 264/MJPEG H. 264 / H. 264 Zip+Type Baseline Profile / Main Profile / High Profile / Main Stream Support H. 265 / H. 265+ Type Main Profile / Main Stream Support Video Bit Rate 32 Kbps ~ 8 Mbps Image Max. Resolution 2560 × 1440
Main Stream 50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280
× 720) 60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320
× 240) 60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240) Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser ROI 1 fixed region for main stream and sub-stream Day/Night Switch Auto/Scheduled Network Network Storage NAS (NFS, SMB/CIFS) Alarm Trigger Motion detection, video tampering alarm, illegal login Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour General Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI Interface Communication Interface 1 RJ45 10M/100M Ethernet port Reset Yes General Working Temperature /Humidity -22 °F ~ 122 °F (-30 °C ~ 60 °C) Humidity 95% or less (non-condensing) Power Supply DC12V ± 25%, PoE ( 802.3 af) Power Consumption Max. 8.5W /wwW (PoE) IR Range 66ft to 100ft Weather Proof Ratings IP67 Dimensions F 5.14? × 4.03? (F 130.5 × 102.4 mm) Weight 1.07 lb.

(485 g)
