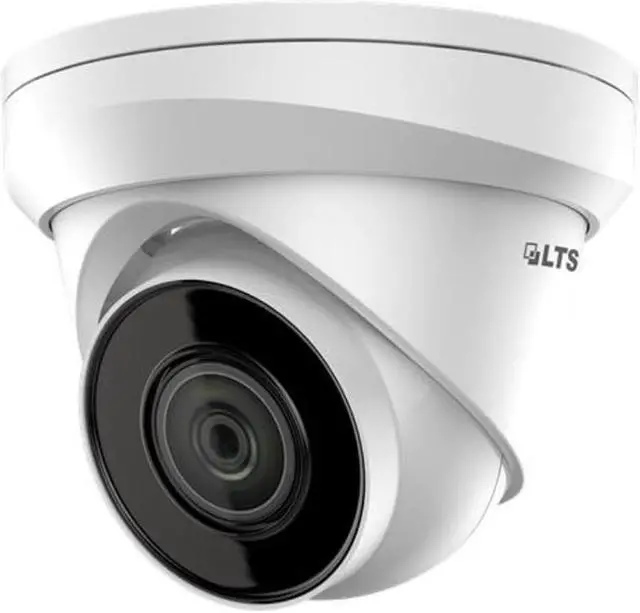

LTS CMIP1382NW-28MA HD IP 8MP/4K 2.8mm WDR Built-in Mic Turret Network Dome Camera LTCMIP1382NW-28MA

Camera Image Sensor 1/ 2.5" Progressive Scan CMOS Min. Illumination 0.01 Lux @ (F 2.0, AGC ON) Shutter Speed 1/3 s to 1/100, 000 s Slow Shutter Yes Wide Dynamic Range 120 dB Day & Night ICR Cut Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° Lens Lens Type & FOV 2.8 mm, horizontal FOV 102°, vertical FOV 53°, diagonal FOV 123° Aperture F 2.0 Lens Mount M12 Illuminator IR Range Up to 98ft (30 m) Wavelength 850 nm Smart Supplement Light Yes Video Max. Resolution 3840 × 2160
Main Stream 50Hz: 12.5 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280
× 720) 60Hz: 15 fps (3840 × 2160, 2592 × 1944, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25 fps (640 × 480, 640
× 360) 60Hz: 30 fps (640 × 480, 640 × 360) Video Compression
Main stream: H. 265+/H.
265 Sub-stream: H. 265/MJPEG Video Bit Rate 32 Kbps to 16 Mbps H. 265 Type Main Profile H. 265+ Main stream supports Bit Rate Control CBR/VBR Scalable Video Coding (SVC) H. 265 supports Region of Interest (ROI) 1 fixed region for main stream and sub-stream Audio Environment Noise Filtering Yes Audio Sampling Rate 8 kHz/16 kHz/32 kHz/ 44.1 kHz/48 kHz Audio Compression G. 711ulaw/G. 711alaw/G. 722.1 /G. 726/MP2L2/PCM/MP3/AAC Audio Bit Rate 64 Kbps(G. 711 ulaw)/64 Kbps(G. 711 alaw)/16 Kbps(G. 722.1 )/16 Kbps(G. 726)/32-192 Kbps (MP2L2) /16-64Kbps (AAC) /8-320Kbps (MP3) Network Simultaneous Live View Up to 6 channels API Open Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, ISUP Protocols TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP, 802.1 x, SSL/TLS, PPPoE User/Host Up to 32 users 3 levels: Administrator, Operator and User Network Storage Supports microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Web Browser Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0 +, Firefox 52.0 + Image Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, HLC, 3D DNR Image Settings Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser Privacy Mask 4 regions of privacy masks Interface Built-in Microphone Yes On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB Hardware Reset Yes Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port Smart Feature-Set Basic Event Motion detection, video tampering, exception General Linkage Method Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture Web Client Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Anti-flicker, password protection, password reset via email Software Reset Yes Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F).

Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Power Supply 12 VDC ± 25%
PoE: 802.3 af, Type 1 Class 3 Power Consumption and Current 12 VDC, 0.4 A, max. 5 W PoE ( 802.3 af, 36 V to 57 V), 0.20 A to 0.1 A, max. 6.5 W Power Interface Ø 5.5 mm coaxial power plug Camera Material Aluminum alloy body Camera Dimension Ø 110 × 81.25 mm (Ø 4.33" × 3.20" ) Package Dimension 150 × 150 × 141 mm ( 5.9" × 5.9" × 5.6" ) Camera Weight Approx. 390 g ( 0.9 lb. ) With Package Weight Approx. 656 g ( 1.4 lb. )
