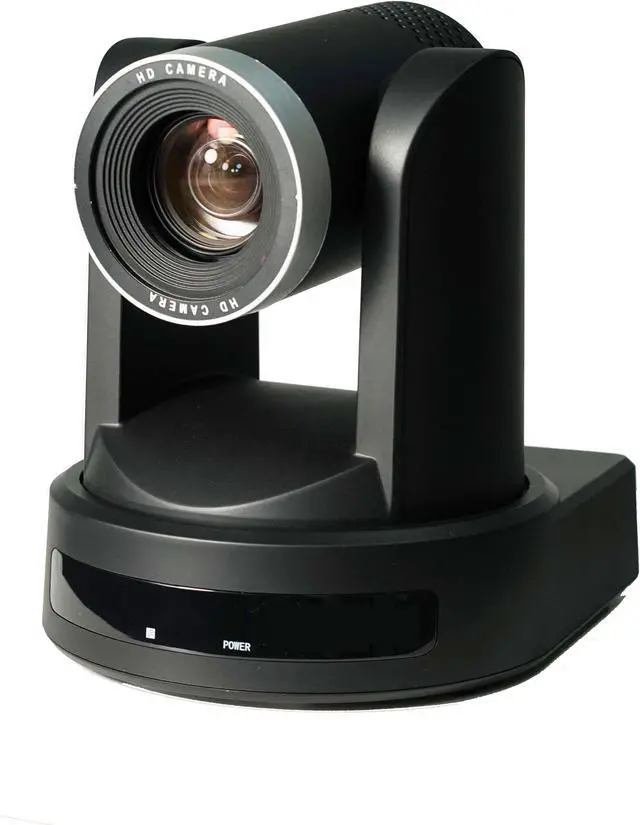

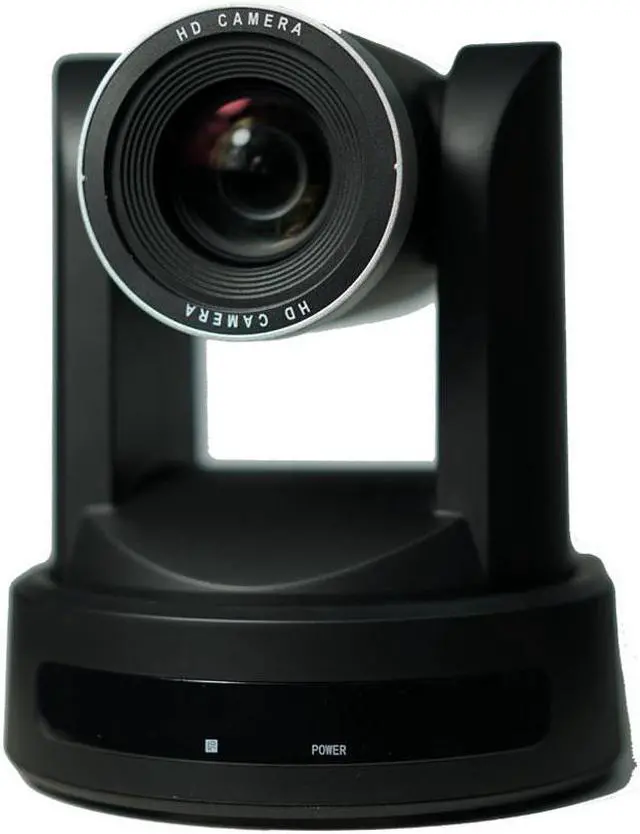

Precise positioning, smooth and quiet PTZ control
True FULL HD images
10x optical zoom
USB3.0 full HD multi-format video output
Provide USB3.0 interface. At the same time provide HDMI interface, CVBS port, IP port and audio port. Support 1080P60/50, 1080P30/25 and other high-definition video formats. Support 1080P60/50/30/25, 720P60/50/ and other high-definition video formats.
RS-232C/RS485 (optional) remote control (VISCA protocol/Pelco-D/Pelco-P)
Through the RS-232 cascade interface, multiple cameras can be connected (VISCA protocol)
Multiple address settings
255 position presets
multifunction remote
Infrared remote control signal transparent transmission function
Optional camera flip function
OSD English menu function
Rich OSD menu, English OSD menu can be controlled by remote control
| imaging sensor |
A 1 / 2.8-inch high-quality HD CMOS sensor |
| Effective pixel |
16:9 The 2.1 million effective pixels |
| Video format |
1080 i60/i50 . 1080 p30/p25. 720 p60/p50 |
| Lens zoom |
10x optical zoom, 12 x digital zoom f 4.7mm 47mm |
| angle of view |
4.7/5.2° (narrow) - -62 (wide) |
| minimal illumination |
0.1Lux |
| white balance |
Automatic / indoor / outdoor / manual |
| focus |
Automatic / manual |
| iris diaphragm |
automatic |
| shutter |
automatic |
| noise-signal ratio |
>50dB |

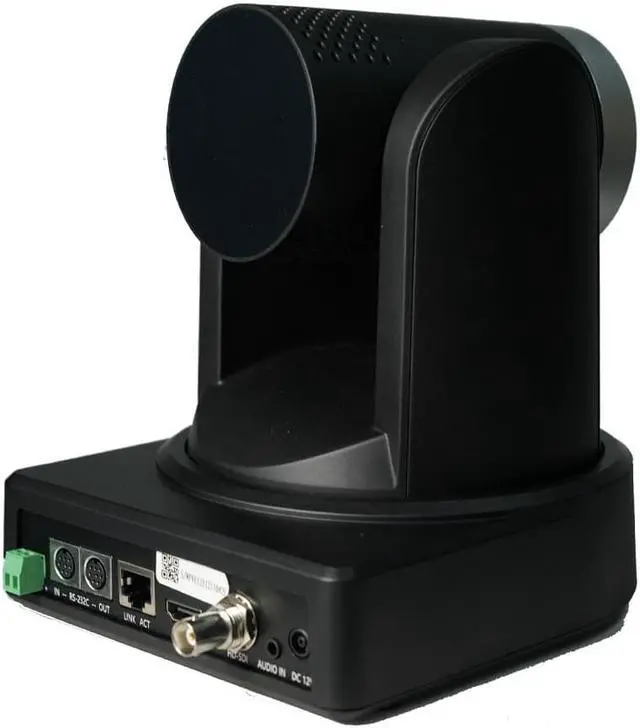

| HD video interface |
HDMI USB3.0 IP CVBS Audio |
| Control signal interface |
8mini DIN |
| Control signal format |
Baud rate 9600/4800/2400bps |
| Power interface |
HEC3800 convenienve receptacle |
| Support operating system |
Windows XP,Vista,7,8, Mac OS X, Linux |
| USB protocol |
UVC1.1 |
| The USB Interface PTZ Control |
Support for PTZ control |
| mechanical behavior |
Horizontal rotation: ±170 ; Turn pitch: -30 +210 |
| mechanical behavior |
Horizontal speed: 1-100 / s; pitch speed: 1-60 / s |
| mechanical behavior |
Preset bit speed: level: 100 / s, pitch: 60 / s |
| mechanical behavior |
Preset bit accuracy: 0.1 degrees |
| mechanical behavior |
Number of preset bits: 255 users can set the preset |
| Color |
black |
| Power adapter |
AC110V-AC220VDC12V/2A |
| input voltage |
DC12V(DC11.5-DC12.5V) |
| power dissipation |
15W (max.) |
| Storage temperature |
-10 to +60 |
| working temperature |
0 to 45 |
| size |
155mmX186mmX172mm |
| Weight (net weight) |
2.5KG(1.3KG) |
| service environment |
indoor |
Precise positioning, smooth and quiet PTZ controlAdopt advanced servo control algorithm (optional) and precision stepper motor drive, it operates very quietly, smoothly and smoothly, and can move to the designated position precisely and quickly10x optical zoom with 55° high-quality wide-focus lens1080P Full HDHigh-quality HD CMOS sensor with effective 2 megapixels for high-quality images with high resolution up to 1920x1080 high frame rate. The new CMOS image sensor can effectively reduce image noise in low-light conditions, while applying 2D and 3D noise reduction algorithms to greatly reduce image noise, even in ultra-low-light conditions It still keeps the picture clean and clear, and the image signal-to-noise ratio is as high as 52dB or moreremote controlUse RS232 and RS485 serial ports to control the camera
