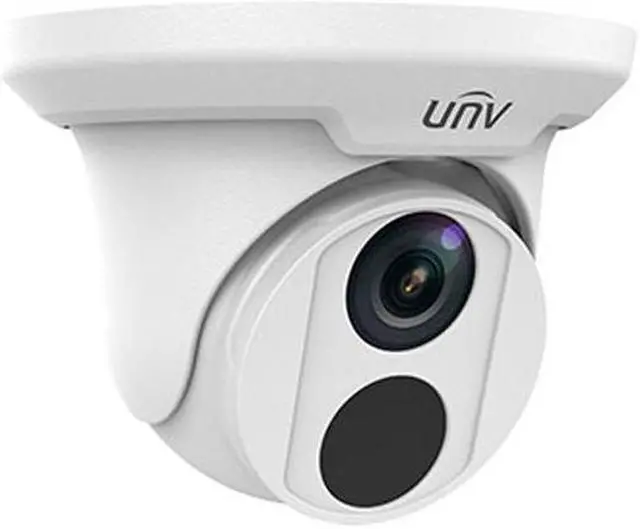

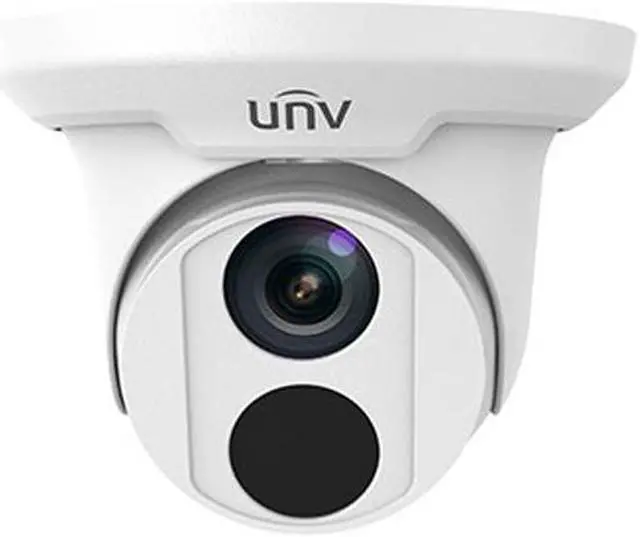

Uniview IPC3618SR3-DPF28LM-F 8MP Network IR Fixed Dome Camera IP67 DNR

Uniview IPC3618SR3-DPF28LM-F 8MP Network IR Fixed Dome Camera IP67 DNR

The IPC3618SR3-DPF28LM-F captures video up to a resolution of 4K @ 20 FPS, which is 3840x2160 pixels. Every pixel added to your camera's picture gives you a higher image quality and more detail. So at 4K, you're going to get a crisper, cleaner, and more detailed image.

The IPC3618SR3-DPF28LM-F has a 2.8mm Fixed Lens. That means its fixed at one length; it can't optically zoom in and out. The longer the focal length on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But the shorter the focal length, the wider the field of view and the more area your surveillance will cover.

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

Note: Uniview IP cameras will work as plug and play with Uniview NVRs. For other NVR systems, network setup is required

Features:

Smart IR, up to 30 m (98 ft) IR distance
2D/3D DNR (Digital Noise Reduction)
Ultra 265,H.265,H.264,MJPEG
Triple streams
ROI (Region of Interest)
ONVIF Conformance
Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IP67
3-Axis adjustment
NDAA Compliant

Specification

Camera56dB
IR Range: Up to 30m (98 ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual
Defog: Digital Defog
WDR: 120dB

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 code profile: Baseline Profile, Main Profile
Frame Rate
Main Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080):Max. 30 fps
Sub Stream:720P (1280*720): Max. 20 fps
Third Stream:4CIF (704*576): Max. 20 fps
Video Bit Rate: 128 Kbps~16 Mbps
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 2 areas
Motion Detection: Up to 4 areas


White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Vertical/Horizontal/180°
Dewarping: NA
HLC: Supported
BLC: Supported

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS
Compatible Integration: ONVIF (Profile S+ Profile T), API
Client: EZStation / EZView / EZLive
Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

Network    10/100M Base-TX Ethernet

Certification

CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15

General

Power: 12 V DC±25%, PoE (IEEE802.3 af)
Power: consumption: Max 5W
Dimensions: (Ø x H)    126 x 94mm (Ø5.0 x 3.7)
Net Weight: 0.45kg (0.99lb)
Material: Metal + Plastic
Working Environment: -30°C ~ +60°C (-22°F ~ 140°F), Humidity: 95% RH(non-condensing)
Strorage Environment: -30°C ~ +60°C (-22°F ~ 140°F), Humidity: 95% RH(non-condensing)
Surge Protection: 2KV
Ingress Protection: IP67
