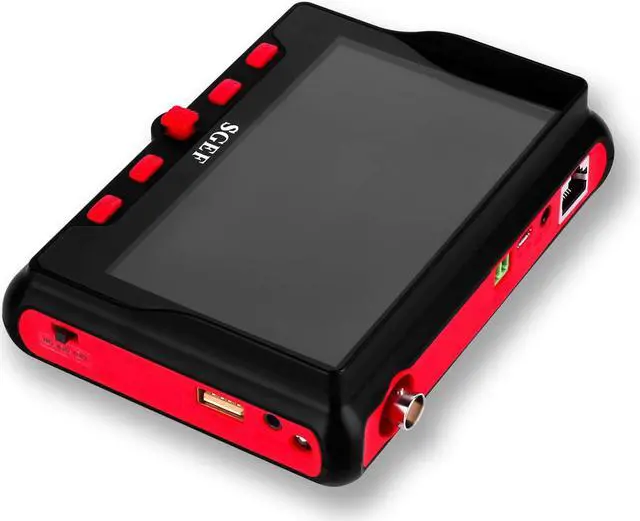

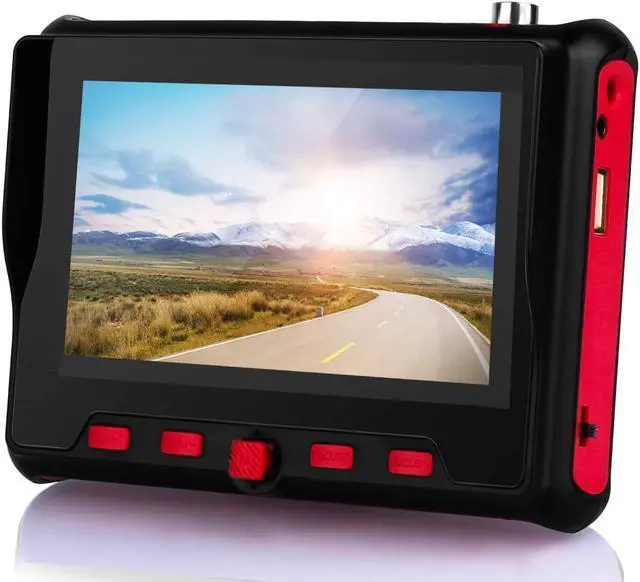

Wrist CCTV Tester, HD 5MP Portable Camera 5MP AHD CVBS Tester UTC OSD Control 4.3 Inch TFT LCD Monitor Analog Video Test Cable, PTZ Control 12V Power Output(6300A)

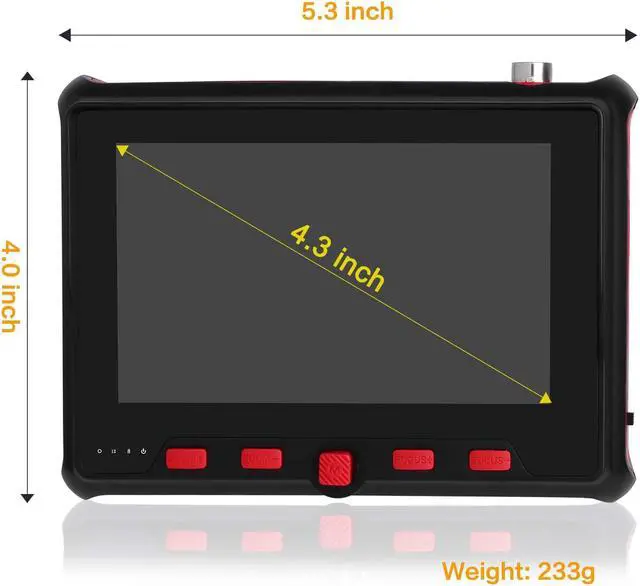

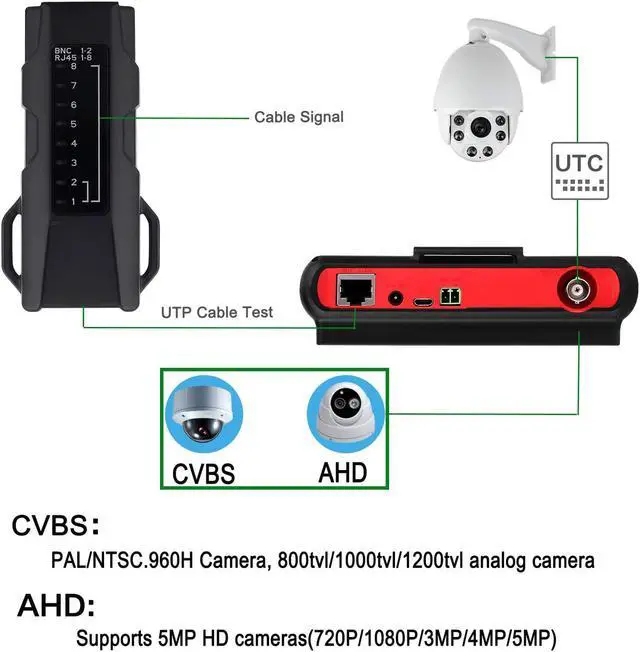

CCTV TESTER 4.3 -inch 480X272 Resolution Screen 2 in 1 PAL/NTSC Auto adapt CCTV Tester, Hybrid camera tester is able to test and debug coaxial 720P / 960P / 1080P /3MP/4MP/5MP AHD camera& CVBS analog camera Does not support IP cameras, TVI/CVI/SDI cameras with video display, The LCD screen video monitor with high resolution can show clear image when troubleshooting a security camera system, correct faraway installation
PTZ CONTROLSupport RS485 and Coaxial control, Compatible with multiple PTZ protocols (PELCO-D /
PELCO-P ); baud rate: 2400, 4800, 9600, 19200 (optional), zooms in/out the lens, adjusts the focus, aperture/sets, PTZ continuing rotate test
UTC CONTROLUTC Control /Call OSD menu, Press and hold the M menu button for 5 seconds to enter, UTC is displayed at the top of the screen. Press the menu button to bring up the camera menu and operate the UTC menu with the up / down / left / right input keys. Press the M menu button for 5 seconds to exit UTC mode.

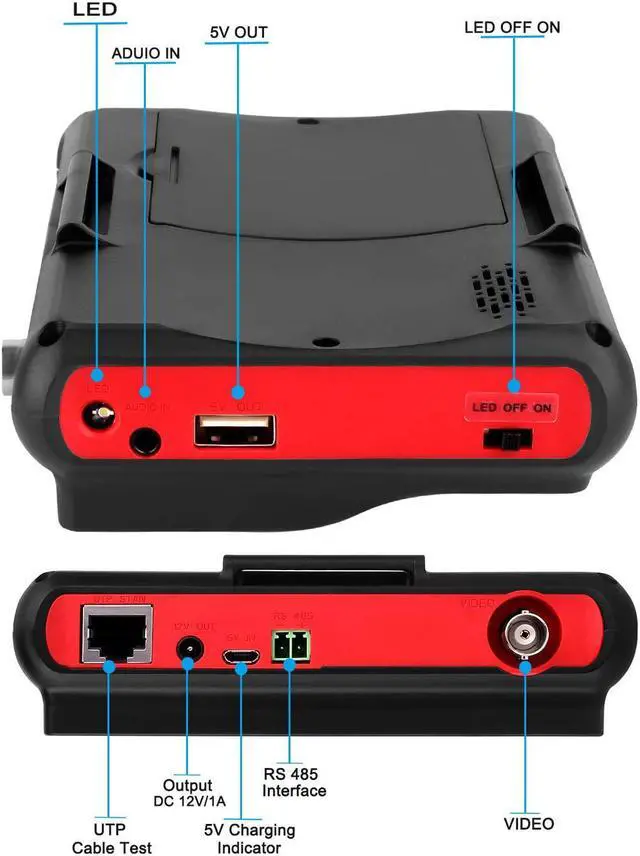

APPLICATION UPT/LAN cable, measure the connecting status, display the sequence of connection and the NO Audio test, and multilingual OSDsupports 12 languages to choose from, The brightness and contrast and color saturation can be adjusable, USB 2.0 interface provides 5V / 1A emergency power output, DC 12V /1A power output from the tester

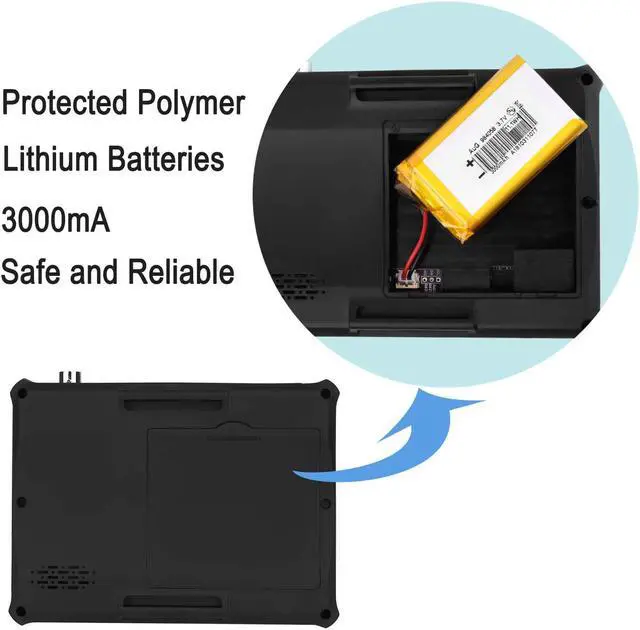

LONG WORK TIME Built in 3.7V 3000 mAh rechargeable Lithium polymer battery, LED emergency lighting; After charging 2-3 hour, it can work lasts 6 hours.
