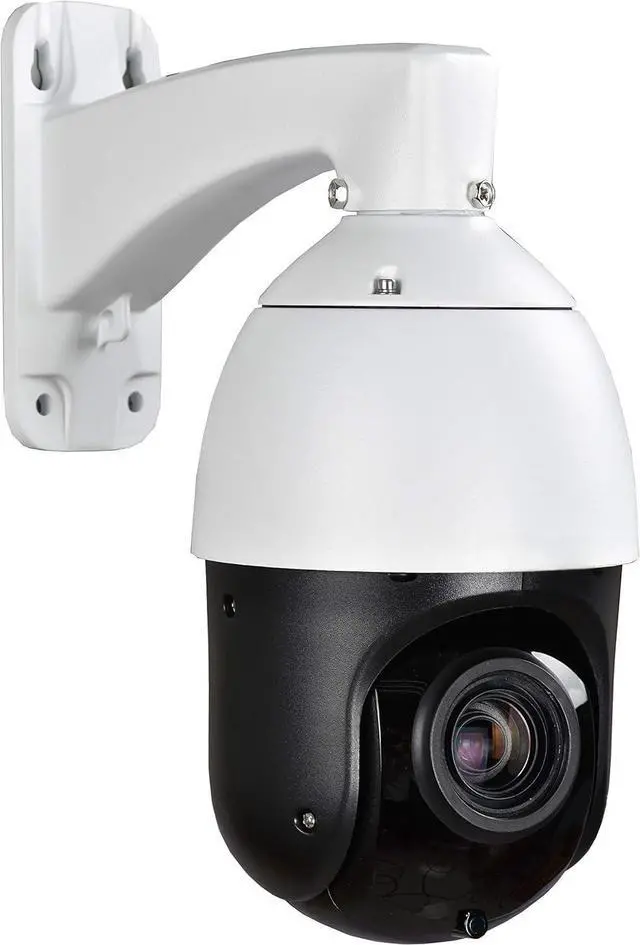

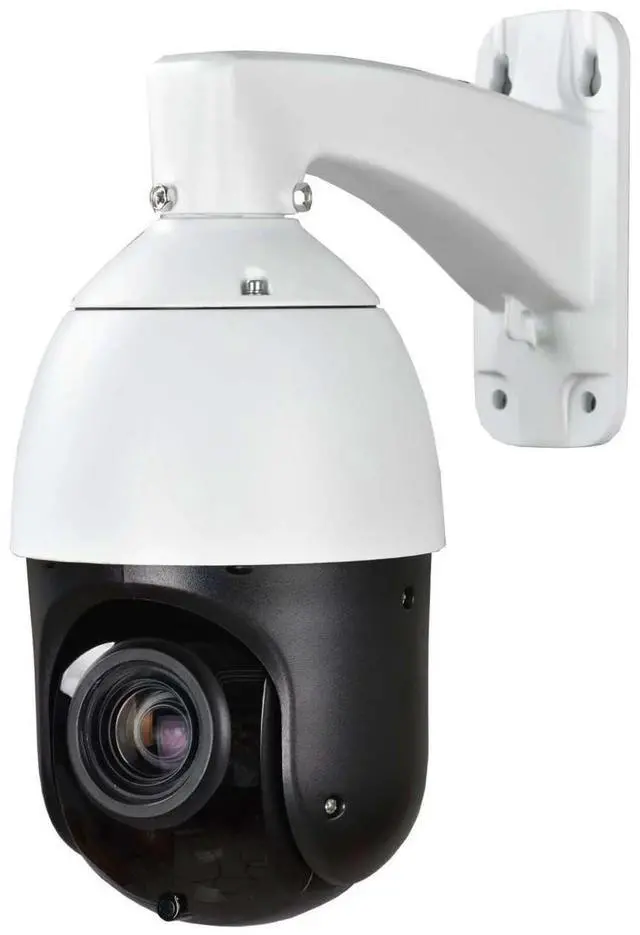

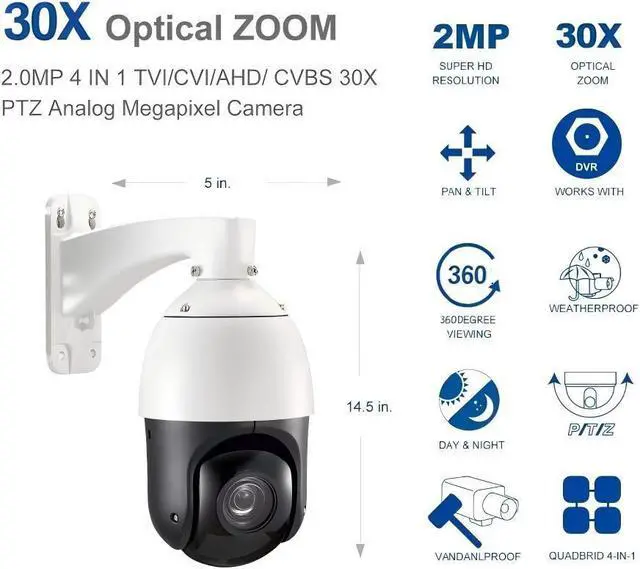

4 IN 1 TVI/CVI/AHD/960H CVBS 2MP 30X Optical Zoom PTZ Analog Megapixel IR Camera
- Features:
- 4PCS ceramicpackagearray LEDS+ 2PCS Laser LEDs,auto-switch to long/middle/close distance focus, IR distance80m.
- Fullmetal aluminum die-casting, all-weather environment design,highandlowtemperatureresistant,waterprooftoIP66.
- Usinghighprecision synchronousreductionmotor, withhighperformance motor drive, controlprecision,stable movement, small vibration.
- IR features: 3 groups of lighting control,auto switchtolong/middle/closedistance focus 360° continuousrotation,nomonitoringblindarea.
- 360° continuousrotation,nomonitoringblindarea.
- HorizontalRotationSpeed0.1~100/s, Verticalrotationspeed0.1~100/s.
- 255presets, thepositioningaccuracyof0.5degrees.
- Support: Guardposition/PowerupAction /Parkaction/3 groupsTours /Pattern/Areascanning/360°horizontal scanning.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
NoteThe default mode is AHD
Features:
- Definition:1080P
- Video output: 4-in-1 1080P(AHD/CVI/TVI), 960H(CVBS)
- Sensor:So,ny IMX307
- Lens:30X Opticalzoom, 4.7-141mm
- High speed dome
- Coaxial control(AHD mode)
| Camera | |
| sensor | 1/2.8"CMOS |
| Definition | 2.0Mpixels 1920(H)X1080(V) |
| Video System | PAL/NTSC |
| Minimum illumination | Colour:0.1LuxB/W:0.01Lux |
| Video output | AHD-H(1Vp-p 75) |
| noise-signal ratio | 50DB |
| Lens | |
| lens | 4.7 to 141mm(F1.6 toF2.7) 30X Optical zoom |
| Zoom Speed | Approx.4s (Optical Wide-Tele) |
| Angle of View: | 55.4°-2.9°(Wide-Tele) |
| PTZ Control funtion | |
| IRDistance | 80m |
| HorizontalRange | 0°~360° continuously |
| VerticalRange | -15°~90° |
| Horizontal Speed | 0.05°~100°/s |
| Vertical Speed | 0.05°~100°/s |
| MaxSpeed | 240°/S |
| Preset | 256 |
| Patrol scan | 4pcs(10preset for each) |
| L/RScan | 1pc |
| Horizontal Scan | 1pc |
| Power-off memory | Support |
| PARKAction | Watch position/Area Scan /Horizontal 360°scan/Cruise |
| Watch position | Support |
| Wide angle speedlimit | Focus / speed automatic matching function |
| INPUT/OUTPUT | |
| Analog video output | 1.0Vpp/75,NTSC orPAL,BNCInterface |
| control interface | Support:1. Coaxial control 2.RS485 |
| General | |
| Power | DC12V/2A |
| Consumption | <15W |
| workenvironment | temperature :-20~60;humidity<90% |
| Protection level | IP66 waterproof,4000Vlightning protection |
| GW | 2.35KG |
