| iB-2H5X-IS | |||
| Camera | Imaging sensor | 1/2.7 CMOS | |
| Chip | SSC378DE | ||
| Signal system | PAL / NTSC adjustable | ||
| Scanning Mode | Progressive scanning | ||
| Illumination | 0 Lux (IR ON) | ||
| Lens | 2.7-13.5mm megapixel lens | ||
| Day and night switch | IR-CUT dual optical filters auto switch in day and night | ||
| Electronic shutter | 1/25s~1/10000s; automatic | ||
| White balance | Auto / manual | ||
| DNR | D-DNR | ||
| SNR | 50dB(AGC OFF) | ||
| Privacy masking | Support | ||
| IR source | 2pcs SMD IR LED lights | ||
| Night vision distance | 10-15 meters | ||
| Standard | compression | Image compression | H.265+,H.265, H.264 |
| Video bit rate | 0.1M~12Mpbs; | ||
| Audio compression | G.711 | ||
| Image | Main stream | 4k (3840x2160) | |
| Sub stream | 720*480 | ||
| Frame rate | 1-20fps (50HZ) | ||
| Image adjustment | Can adjust Saturation, brightness, contrast, sharpness | ||
| Image mirroring | Horizontal mirroring, vertical mirroring | ||
| Scene | Auto, indoor, outdoor | ||
| Digital enlarge | Can achieve through NVR, P2P HD monitoring management software | ||
| Function | Mobile App | Support IPhone,Android | |

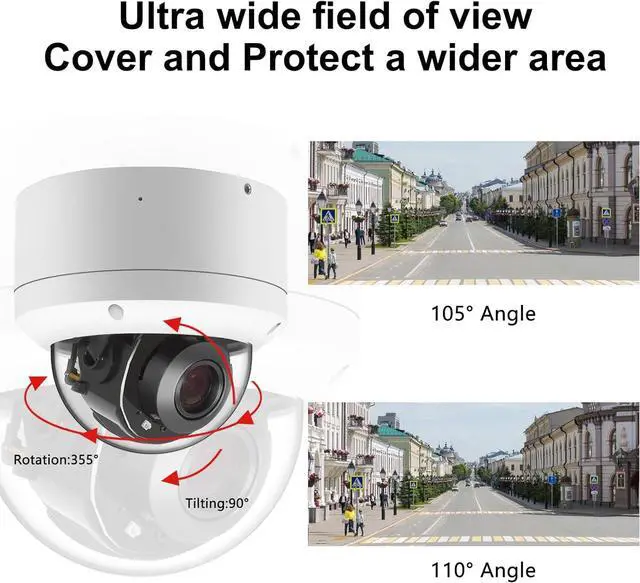

| Horizontal rotation | 320 degree rotation | ||
| Vertical rotation | 90 degree rotation | ||
| WDR | D-WDR | ||
| Motion | Support | ||
| Alarm | Support | ||
| Protocol | ONVIF 2.4 | ||
| Network protocol | HTTP/RTSP/DHCP/NTP/ONVIF/P2 | ||
| Audio | Microphone speaker | ||
| POE power supply | Support POE power supply (optional) | ||

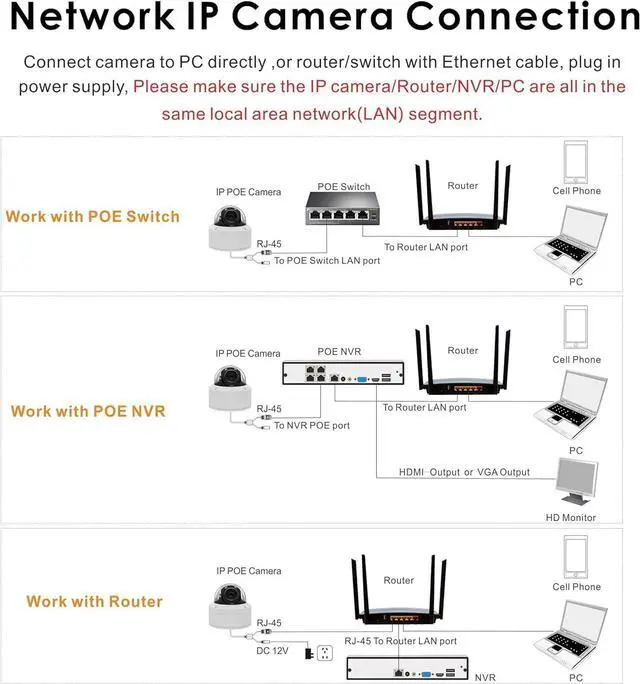

| Interface | Interface | 1pc RJ45 10M / 100M Adaptive Ethernet port | |
| Basic | parameter | Power input | DC 12V±10% |
| Network interface | 10M/100M adaptive Ethernet port | ||
| Work | environment | -20 ~ 60, humidity is less than 80% (no condensation) | |
| Waterproof | IP65 | ||
| Size | |||
| 112 x 112 x 103mm |
