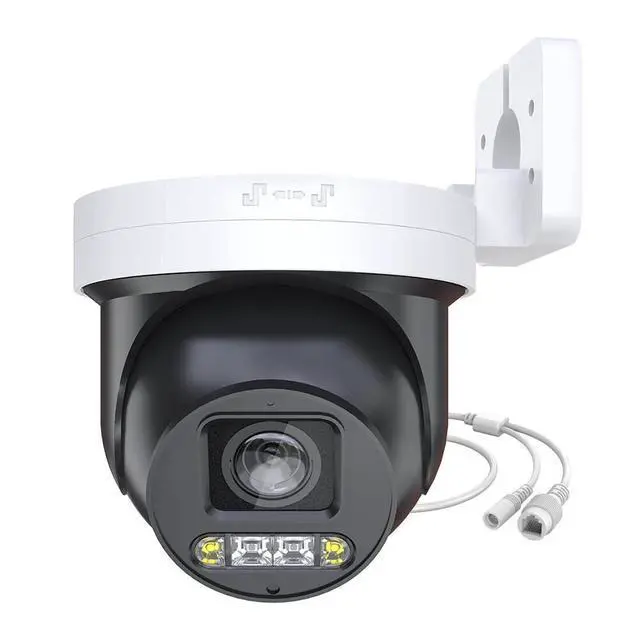

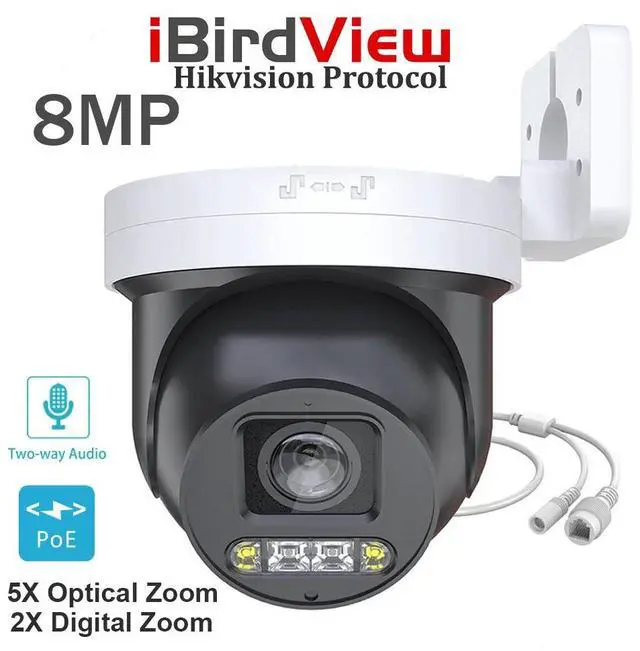

H Compatible 4K 8MP 5X Optical Zoom PTZ IP POE Camera Outdoor IR Color
- Attention: The product is black.
- Feature
- > 1/2.8" IMX415 CMOS
- > 3840 × 2160@20 fps
- > 2.7-13.5mm 5X Varifocal lens+2X Digital
- > H.265+, H.265, H.264
- > F1.6-3.3 lens
- > Built-in Microphone & Speaker
- > IR Light Range: up to 30 m
- > White Light Range: up to 30 m
- > WDR/HDR/3D DNR/HLC/BLC
- > Water and dust resistant(IP65)
- > Color: 0.01 lux @(F1.6), 0 lux with light
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Attention: The product is black.
Feature
> 1/2.8" IMX415 CMOS
> 3840 × 2160@20 fps
> 2.7-13.5mm 5X Varifocal lens+2X Digital
> H.265+, H.265, H.264
> F1.6-3.3 lens
> Built-in Microphone & Speaker
> IR Light Range: up to 30 m
> White Light Range: up to 30 m
> WDR/HDR/3D DNR/HLC/BLC
> Water and dust resistant(IP65)
> Color: 0.01 lux @(F1.6), 0 lux with light
Specifications
| Camera | ||||
| Image Sensor | 1/2.8" IMX415 CMOS | |||
| Min. Illumination | Color: 0.01lux @(F1.6), 0 lux with IR light | |||
| Shutter Speed | 1/10 s to 1/10,000 s | |||
| Slow Shutter | Yes | |||
| Day & Night | IR cut Filter | |||
| Digital Noise Reduction | 3D DNR 2D DNR | |||
| WDR | 120dB | |||
| 3-Axis Adjustment | Pan: 0° to 300°, tilt: 0° to 180°, rotate: 0° to 360° | |||
| Lens | ||||
| Focal Length | 2.7-13.5 mm 5X Optical zoom + 2X Digital zoom | |||
| Aperture | F1.6-3.3 | |||
| Lens Type | Varifocal lens,motorized lens,2.7 to 13.5mm | |||
| FOV | horizontal FOV: 101° to 34°, vertical FOV: 56 to 19°, diagonal FOV: 125° to 37° | |||
| Lens Mount | M14 | |||
| PTZ | ||||
| Movement Range(Pan) | 275° | |||
| Movement Range(Tilt) | 0° to 90° | |||
| Pan Speed | Pan Speed: 15°/s | |||
| Tilt Speed | Tilt Speed: 10°/s | |||
| Illuminator | ||||
| White & IR Light Range | Up to 30 m | |||
| Smart Supplement Light | Yes | |||
| Compression Standard | ||||
| Video Compression | Main stream: H.265+/H.265/H.264 | Sub-stream: H.265+/H.265/H.264 | ||
| H.264 Type | High Profile/Main Profile/Base Profile | |||
| H.265 Type | High Profile/Main Profile/Base Profile | |||
| H.265+ | High Profile/Main Profile/Base Profile | |||
| Smart Feature-set | ||||
| Smart Event | Human detection, Vehicle detection | |||
| Basic Event | Motion detection | |||
| Linkage Method | Trigger recording: network storage, pre-record and post-record Trigger captured pictures uploading: FTP, Email | Trigger notification: FTP, Email | ||
| Image | ||||
| Max. Resolution | 3840×2160 | |||
| Main Stream | 50Hz: 20@FPS(3840×2160),30FPS@(3072×2048,2592×1944,2560×1440,2304×1296 ) 60@FPS(1920×1080,1280×720); | 60Hz: 20@FPS(3840×2160),30FPS@(3072×2048,2592×1944,2560×1440,2304×1296 ) 60@FPS(1920×1080,1280×720); | ||
| Sub-Stream | 50Hz: 30 fps (720 x 480,640 × 480, 640 × 360, 480 × 480,480 × 360,CIF) | |||
| 60Hz: 30 fps (720 x 480,640 × 480, 640 × 360, 480 × 480,480 × 360,CIF) |
| Image Enhancement | WDR/HDR/3D DNR/2D DNR/HLC/BLC | ||
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser | ||
| SVC | H.264 and H.265 and H.265+ encoding support | ||
| Day/Night Switch | Day/Night/Auto/Schedule | ||
| Network | |||
| Network Storage | Support local storage and NAS (NFS, SMB/CIFS) | ||
| Protocols | HTTP, RTSP, DHCP, FTP, NTP,ONVIF,P2P, DHCP,SMTP,RTMP | ||
| Client | AJ_Client,AC18Pro,VideoLink | ||
| Interface | |||
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port | ||
| Built-in Microphone | YES | ||
| Built-in Speaker | Power: 3W.MAX. Sound pressure lever:10cm: 100dB. | ||
| Reset Key | YES | ||
| On-Board Storage | Built-in memory card slot, support MicroSD card,up to 512GB | ||
| General | |||
| Operating Conditions | -30 °C to +85 °C, humidity 95% or less (non-condensing) | ||
| Web Client Language | 14 languages: English,Russian,German,Italian,Turkish, Korean,Japanese,Traditional Chinese, | Simple Chinese,Ukrainian,Portuguese,Croatian,Polish,Farsi | |
| Power Supply | DC 12V 2A , 5.5 *2.1mm coaxial plug power PoE(802.3af) Max.12W | ||
| Protection Level | IP67-Each Camera has been tested waterproof | ||
| Material | Front cover:metal,body:metal,bracket:metal | ||
| Dimensions | Camera: 139 × 117 x 107mm (5.47" × 4.61 x 4.21") | Package: 148× 148 × 169 mm (5.83" × 5.83" × 6.65) | |
| Weight | Apporx.510g(1.12 lb) | ||
| With Package Weight | Apporx.650g(1.43 lb) |
