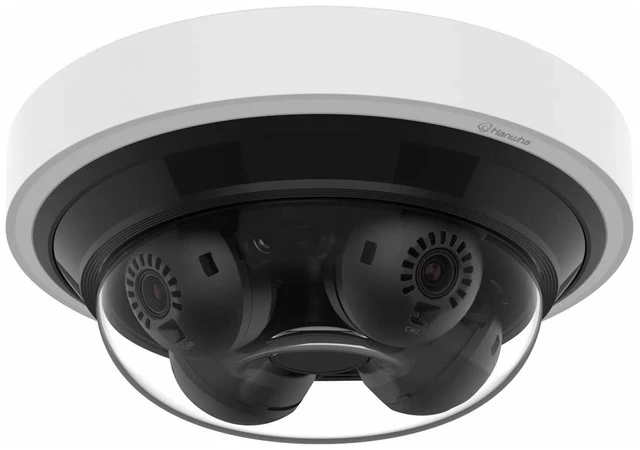

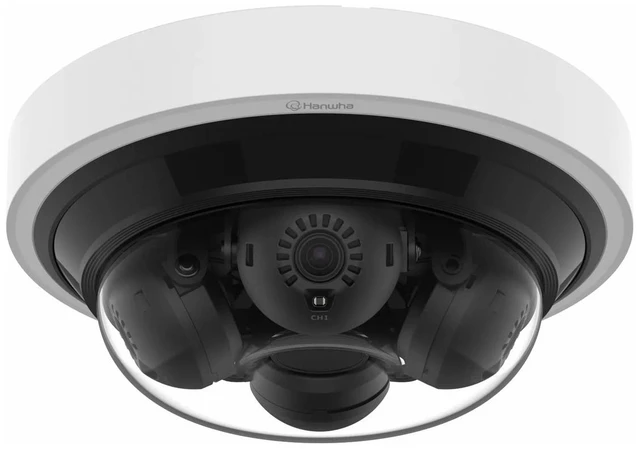

HANWHA WISENET P SERIES NETWORK VANDAL OUTDOOR - PNM-C16013RVQ

Primary Information

Camera Type:

IR Camera

Connectivity Technology:

Wired

Interface Type:

10/100/1000Base-T

Camera Sensor Type:

CMOS

Camera Sensor Size:

1/2.8"

Effective Sensor Resolution:

4 MP

Focal Length:

3.19 mm

Optical Zoom:

Fixed

Focus Adjustment:

Manual

Interfaces & Connections:

Metal shielded RJ-45(10/100/1000BASE-T), USB: Micro USB Type B

RAM / Total Installed Size:

4 GB

Flash Memory / Installed Size:

512 MB

Voltage Input:

PoE+(IEEE802.3at type 2, Class4)

Color:

White

Features:

Material: Aluminum Hard-coated dome bubble; 4CH AI based Analytics events : classified object (Person/Face/Vehicle/License plate); AI based loitering detection and line crossing detection; AI based WiseNR, Auto prefer shutter control, WiseStream; IR viewable length 20m (65.6 ft); Supports hallway mode; 15fps@4MP 3.19mm fixed lens; Next level cybersecurity (TPM 2.0, FIPS 140-2 certified); Reinforced durability (IP66, NEMA4X, IK09).

Capture

Digital Video Capture Speed:

15 Frames per second

Digital Video Capture Resolution:

640 x 360; 2592 x 1520; 1920 x 1080

Digital Video Format:

MJPEG; H.265; H.264

Dimensions&Miscellaneous

Width:

7.87 (diameter) Inch

Height:

3.15 Inch

General

Model:

PNM-C16013RVQ

Maximum Angle of View:

None
