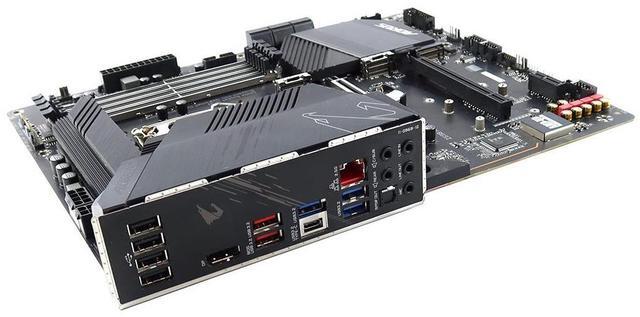

Desktop Motherboard Compatible Replacement Spare Part for GIGABYTE Z590 AORUS ELITE Intel Chipset Socket LGA1200 DDR4 SATA 6Gb/s DisplayPort ATX

Model: Z590 AORUS ELITE
Chipset: Intel Z590
Socket: Intel LGA1200
Compatible/Supported CPU: Support for 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors, 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processor
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 5400 (O.C) / 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) /4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 5, 10
Network/Communications: Intel 2.5GbE LAN chip (2.5Gbit / 1Gbit / 100Mbit)
Audio: Realtek ALC1220-VB codec, 7.1-Channel High Definition Audio
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x 4-pin ATX 12V power connector, 1x CPU fan header, 1x water cooling CPU fan header, 3x system fan headers, 1x system fan/water cooling pump header, 2x addressable LED strip headers, 2x RGB LED strip headers, 6x SATA 6Gb/s connectors, 3x M.2 Socket 3 connectors, 1x front panel header, 1x front panel audio header, 1x USB Type-C header, with USB 3.2 Gen 2 support, 1x USB 3.2 Gen1 header, 2x USB 2.0/1.1 headers, 2x Thunderbolt add-in card connectors, 1x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only), 1x Clear CMOS jumper, 1x Q-Flash Plus button
Input/Output Ports: 1x USB Type-C port, with USB 3.2 Gen 2x2 support, 2x USB 3.2 Gen 2 Type-A ports (red), 3x USB 3.2 Gen 1 ports, 4x USB 2.0/1.1 ports, 1x DisplayPort, 1x RJ-45 port, 1x optical S/PDIF Out connector, 5x audio jacks
Expansion Slots: 1x PCI Express x16 slot, running at x16 (PCIEX16), 1x PCI Express x16 slot, running at x4 (PCIEX4), 1x PCI Express x1 slot, 3x M.2 connector, 6x SATA 6Gb/s connectors
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit

Please note, this motherboard comes with I/O Shield only! No cables, fan's mounting backplate, fan's bracket, or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
