Desktop Motherboard 80-MXBDZ0-A1D01 Compatible Replacement Spare Part for ASRock B550 Phantom Gaming 4/ac AMD Chipset Socket AM4 DDR4 SATA 6Gb/s HDMI ATX

Model: B550 Phantom Gaming 4/ac
Part Number: 80-MXBDZ0-A1D01
Chipset: AMD B550
Socket: AMD AM4
Compatible/Supported CPU: AMD Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Storage Interface: SATA 3 6Gb/s
RAID Support: 0, 1, 10
Bluetooth Standard: Bluetooth 4.2
Wireless Lan Support: Intel Dual-Band 802.11ac WiFi Module
Network/Communications: Realtek RTL8111H, Gigabit LAN 10/100/1000 Mb/s
Audio: Realtek ALC1200 Audio Codec, Realtek 7.1 CH HD Audio with Content Protection, Nahimic Audio
Connectors: 1x COM Port Header, 1x SPI TPM Header, 1x Power LED and Speaker Header, 2x RGB LED Headers, 2x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x 4 pin 12V Power Connector, 1x Front Panel Audio Connector, 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Input/Output Ports: 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 6x USB 3.2 Gen1 Ports (Supports ESD Protection), 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone
Interface: 2x PCI Express x16 Slots, 2x PCI Express 3.0 x1 Slots, 1x M.2 Socket (Key E), 6x SATA3 6.0 Gb/s, 1x Hyper M.2 Socket supports M Key type 2260/2280/22110, 1x M.2 Socket, supports M Key type 2242/2260/2280
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Please note, this motherboard comes with SATA cables and fan backplate does not include I/O Shield, fan bracket, WIFI Card or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad

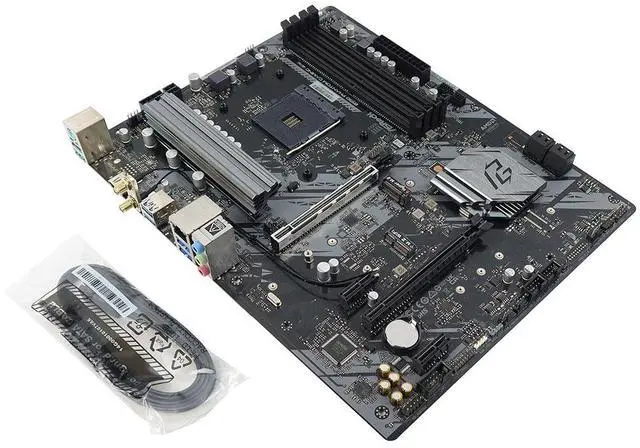

• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
