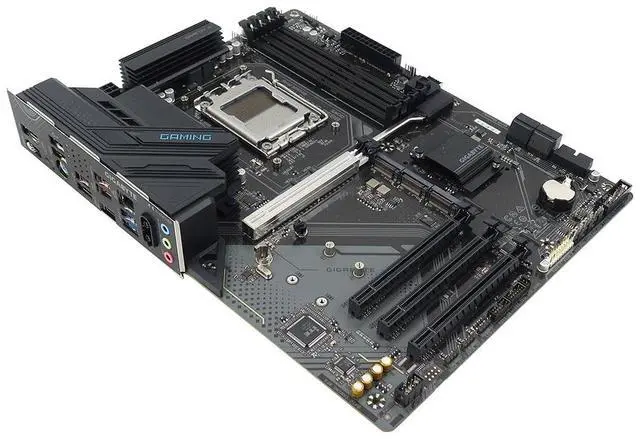

Desktop Motherboard Compatible Replacement Spare Part for Gigabyte B850 Gaming WIFI6 AMD Chipset Socket AM5 DDR5 SATA 6Gb/s DisplayPort HDMI ATX

Model: B850 GAMING WIFI6
Chipset: AMD B850
Socket: AMD AM5
Compatible/Supported CPU: Supports Ryzen 9000, 8000 and 7000 Series Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400MHz
Storage Interface: SATA 6Gb/s
RAID Support: SATA: 0, 1, 5, 10; NVMe: 0, 1, 5
Bluetooth Standard: Bluetooth 5.3
Wireless Lan Support: Realtek Wi-Fi 6 RTL8851BE
Network/Communications: Realtek GbE LAN
Audio: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x 4-pin ATX 12V power connector, 1x CPU fan header, 1x CPU fan/water cooling pump header, 3x system fan headers, 1x system fan/water cooling pump header, 3x addressable RGB Gen2 LED strip headers, 1x RGB LED strip header, 3x M.2 Socket 3 connectors, 4x SATA 6Gb/s connectors, 1x front panel header, 1x front panel audio header, 1x USB Type-C header, with USB 3.2 Gen 1 support, 1x USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers, 1x Trusted Platform Module header, 1x reset jumper, 1x Clear CMOS jumper
Input/Output Ports: 1x DisplayPort, 1x HDMI port, 1x Q-Flash Plus button, 4x USB 2.0/1.1 ports, 1x PS/2 keyboard/mouse port, 2x USB 3.2 Gen 2 Type-A ports (red), 1x USB Type-C port, with USB 3.2 Gen 1 support, 1x RJ-45 port, 2x USB 3.2 Gen 1 ports, 2x antenna connectors (2T2R), 3x audio jacks
Expansion Slots: 1x PCIe 5.0 x16 (PCIe 4.0 x8/x4 with Ryzen 8000 series), 3x PCIe 3.0 x16 (x1 mode), 1x M.2 PCIe Gen5x4, 1x M.2 PCIe Gen4x4, 1x M.2 PCIe Gen4x2, 4x SATA3 6.0 Gb/s
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Please note, this motherboard comes with I/O Shield, fan backplate. No fan bracket, cables or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
