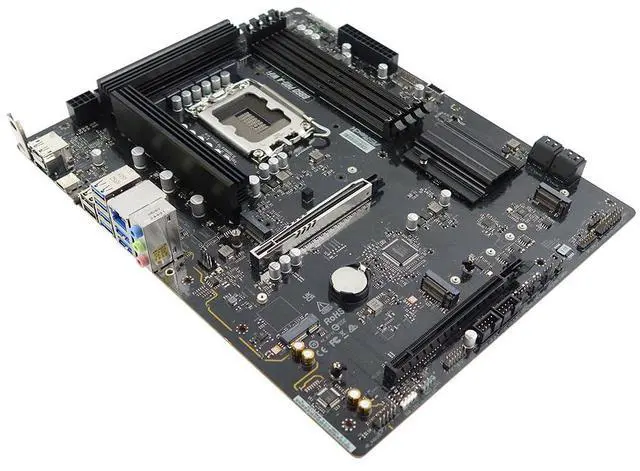

Desktop Motherboard 80-MXBRL0-A1A02 Compatible Replacement Spare Part for ASRock B860 Pro-A WiFi Intel Chipset Socket LGA1851 DDR5 HDMI DP ATX

Model: B860 Pro-A WiFi
Part Number: 80-MXBRL0-A1A02
Chipset: Intel B860
Socket: Intel LGA1851
Compatible/Supported CPU: Intel Core Ultra Processors Series 2
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 8666+(OC)MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.3
Wireless Lan Support: 802.11axe Wi-Fi 6E
Network/Communications: Dragon RTL8125BG 2.5 Gigabit LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Connectors: 1x SPI TPM Header, 1x Power LED and Speaker Header, 1x RGB LED Header, 3x Addressable LED Headers, 2x CPU Fan Connectors (4-pin) (Smart Fan Speed Control), 4x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control), 1x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 2x 8 pin 12V Power Connectors (Hi-Density Power Connector), 1x Front Panel Audio Connector, 2x USB 2.0 Headers (Support 4 USB 2.0 ports), 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports), 1x Front Panel Type C USB 3.2 Gen1 Header
Input/Output Ports: 2x Antenna Ports, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s), 6x USB 3.2 Gen1 Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port, 1x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone
Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 1x M.2 Key-E Wi-Fi/Bluetooth slot, 1x M.2 PCIe Gen5x4, 2x M.2 PCIe Gen4x4, 4x SATA3 6.0 Gb/s
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 11 64-bit

Please note, this motherboard does not include an I/O Shield, cables, fan bracket, fan backplate, WiFi Antenna ports and WiFi Module or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
