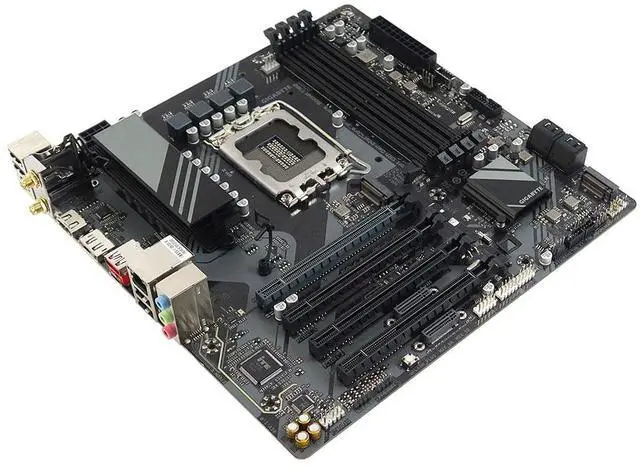

DESKTOP MOTHERBOARD COMPATIBLE REPLACEMENT SPARE PART FOR GIGABYTE B760M C INTEL B760 SOCKET LGA1700 DDR5 MICROATX

Model: B760M C
Chipset: Intel B760
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Core 14th & 13th Gen, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400(O.C.)/6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/5600/5400/5200/5000/4800MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: Realtek Wi-Fi RTL8821CE 802.11n
Network/Communications: Realtek GbE LAN chip (1 Gbps/100 Mbps)
Audio: Realtek Audio CODEC High Definition Audio
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 3x system fan headers, 2x addressable LED strip headers, 2x RGB LED strip headers, 4x M.2 Socket 3 connectors, 4x SATA 6Gb/s connectors, 1x front panel header, 1x front panel audio header, 1x speaker header, 1x USB Type-C header, with USB 3.2 Gen 1 support, 1x USB 3.2 Gen 1 header, 3x USB 2.0/1.1 headers, 2x Thunderbolt add-in card connectors, 1x Q-Flash Plus button, 1x reset jumper, 1x Clear CMOS jumper, 1x chassis intrusion header
Input/Output Ports: 1x PS/2 keyboard/mouse port, 2x SMA antenna connectors (1T1R), 1x HDMI port, 1x DisplayPort, 1x USB Type-C port, with USB 3.2 Gen 2x2 support, 1x USB 3.2 Gen 2 Type-A port (red), 4x USB 2.0/1.1 ports, 1x RJ-45 port, 3x audio jacks
Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4 mode), 2x PCIe 3.0 x16 (x1 mode), 2x M.2 PCIe Gen4x4/x2, 2x M.2 PCIe Gen3x1, 4x SATA3 6.0 Gb/s
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Please note, this motherboard does not include an I/O Shield, fan bracket, fan backplate, WiFi card, cables, or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
