PCIe 5.0 X16 to Oculink 4i GPU Expansion Dock 128G GEN4 High Speed Direct-Connect Dock-OC7 Kit Compatible with M.2 NVMe Docking Station GDP Laptop (+ Card TKM7,Dock-OC7) White

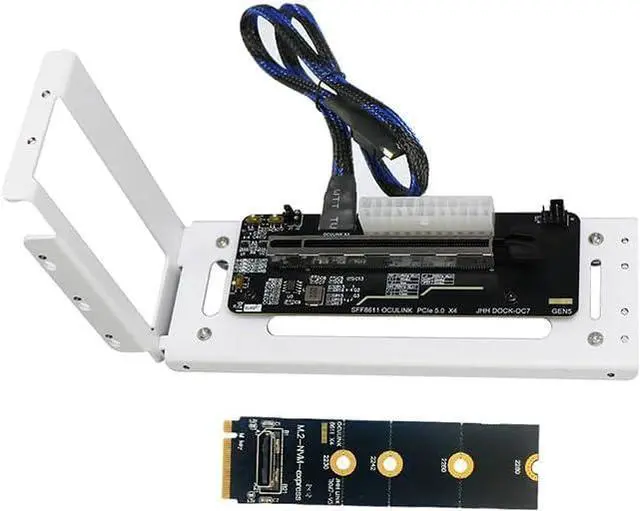

PCIe 5.0 X16 to Oculink 4i GPU Expansion Dock 128G GEN4 High Speed Direct-Connect DOCK-OC7 Kit Compatible with M.2 NVMe Docking Station GDP Laptop

DOCK-OC7: Black stand.

DOCK-OC7W: White stand.

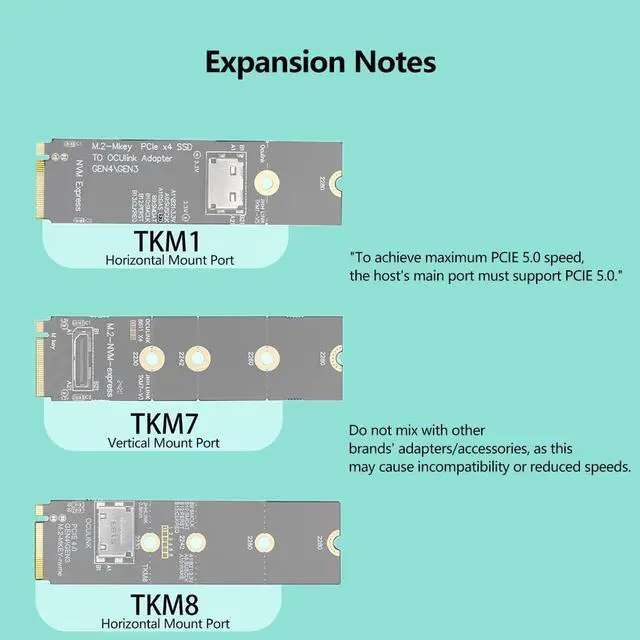

TMK1 Card: Horizontal Mount Port, Support 2260 2280.

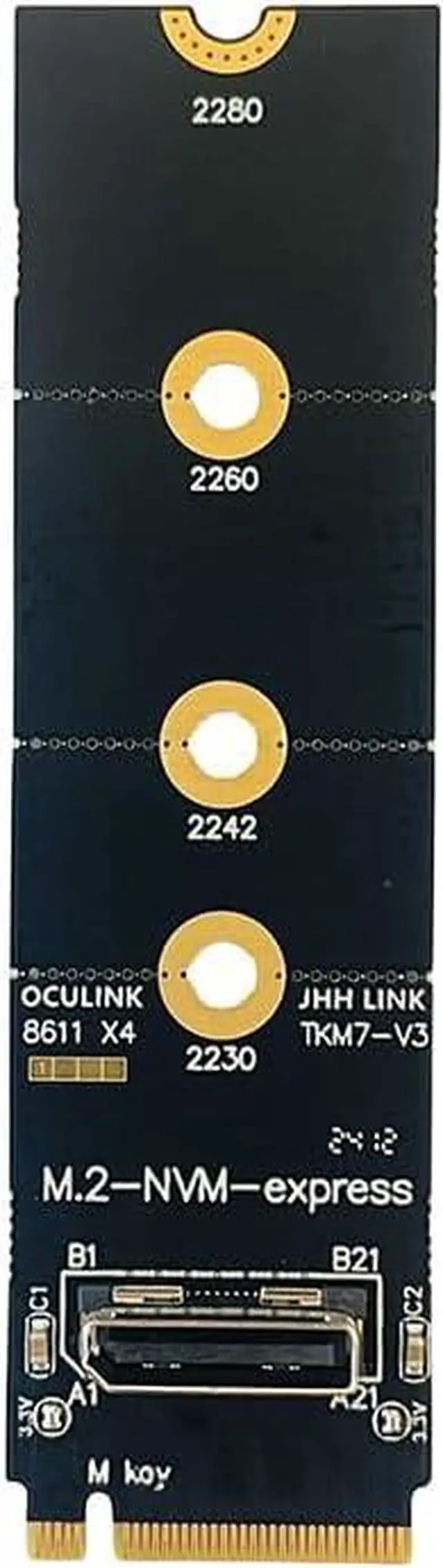

TMK7 Card: Vertical Mount Port, Support 2230 2242 2260 2280.

TMK8 Card: Horizontal Mount Port, Support 2230 2242 2260 2280.

Product Description:

1. Oculink external expansion device, Oculink to PCIe x4 (physical interface PCIe x16)

2. Supports expansion of external PCIe cards for mini PCs, GDP handheld gaming consoles, and laptops. Use the Oculink port or convert the internal M.2 socket to an Oculink port via an adapter board.

3. Compatible with external GPUs, PCIe network cards, PCIe sound cards, PCIe capture cards, NVMe/U.2/U.3 SSDs, etc.

4. Maximum bandwidth: PCIe 5.0 x4 Gen4, 128G. Backward compatible with Gen4 and Gen3.

5. Requires host PC to support PCIe 5.0 speeds to achieve maximum PCIe 5.0 performance.

6. This model features an ATX-24p right-angle power connector. No matching chassis enclosure is currently available.

7. Supports synchronized startup and shutdown with the host system. Hot-swapping is not supported.

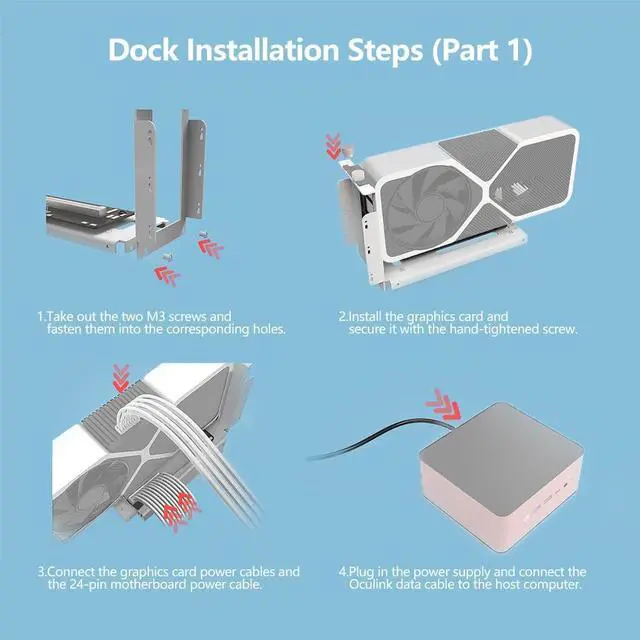

8. After connecting cables and power, the external device will auto-start when the host powers on. The adapter board will display two green lights. Upon entering the system, first check Device Manager for recognition of a new display device. Wait 5 minutes; the system typically auto-connects and updates drivers. If not recognized, try restarting the host first. If the host has a built-in discrete GPU, disable it in Device Manager.
