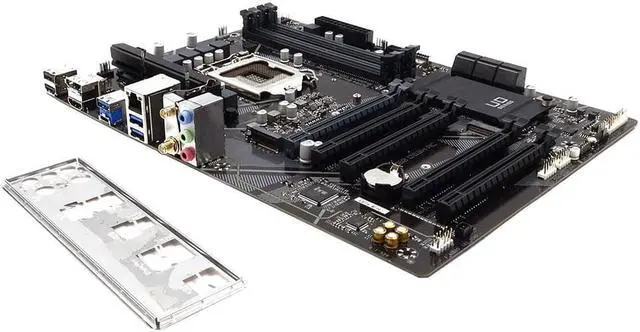

B560 DS3H Ac_Ua Gigabyte AC Intel Chipset Socket LGA1200 DDR4 Hdmi DP Motherboard Intel LGA1200 Motherboard - OEM

Model: B560 DS3H AC_UA
Chipset: Intel B560
Socket: Intel LGA1200
Compatible/Supported CPU: 10th 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 3 6.0Gb/s
Bluetooth Standard: Bluetooth 4.2
Wireless Lan Support: AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE), 802.11a/b/g/n/ac supporting 2.4/5 GHz Dual-Band
Network/Communications: Realtek GbE LAN chip (1 Gbps/100 Mbps)
Audio: Realtek Audio CODEC
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 3x system fan headers, 1x addressable LED strip header, 1x RGB LED strip header, 2x M.2 Socket 3 connectors, 6x SATA 6Gb/s connectors, 1x front panel header, 1x front panel audio header, 1x USB 3.2 Gen 1 header, 1x USB Type-C header, with USB 3.2 Gen 1 support, 2x USB 2.0/1.1 headers, 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1x Clear CMOS jumper, 1x Q-Flash Plus button
Input/Output Ports: 2x USB 2.0/1.1 ports, 1x DisplayPort, 1x HDMI port, 3x USB 3.2 Gen 1 ports, 1x USB Type-C Port, 1x RJ-45 port, 2x SMA antenna connectors (1T1R), 3x audio jacks
Expansion Slots: 1x PCI Express x16 slot, running at x16 (PCIEX16), 4x PCI Express x16 slots, running at x1 (PCIEX1_1~4), 1x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support), 1x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support), 6x SATA 6Gb/s connectors
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit

Please note, this motherboard comes with I/O Shield only! No cables, fan brackets or any other accessories!

• Grade A, Like New Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
