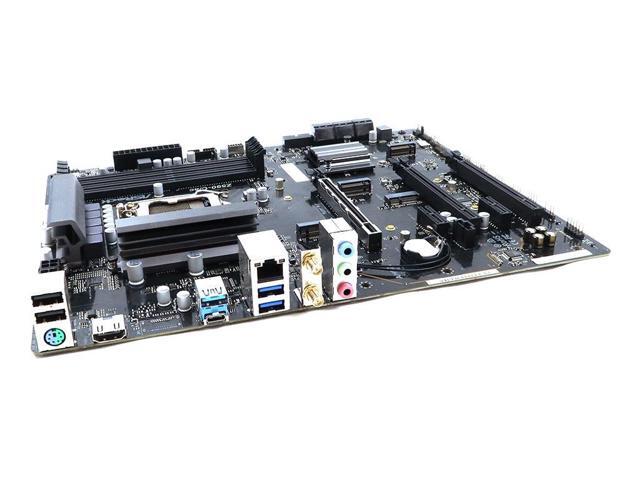

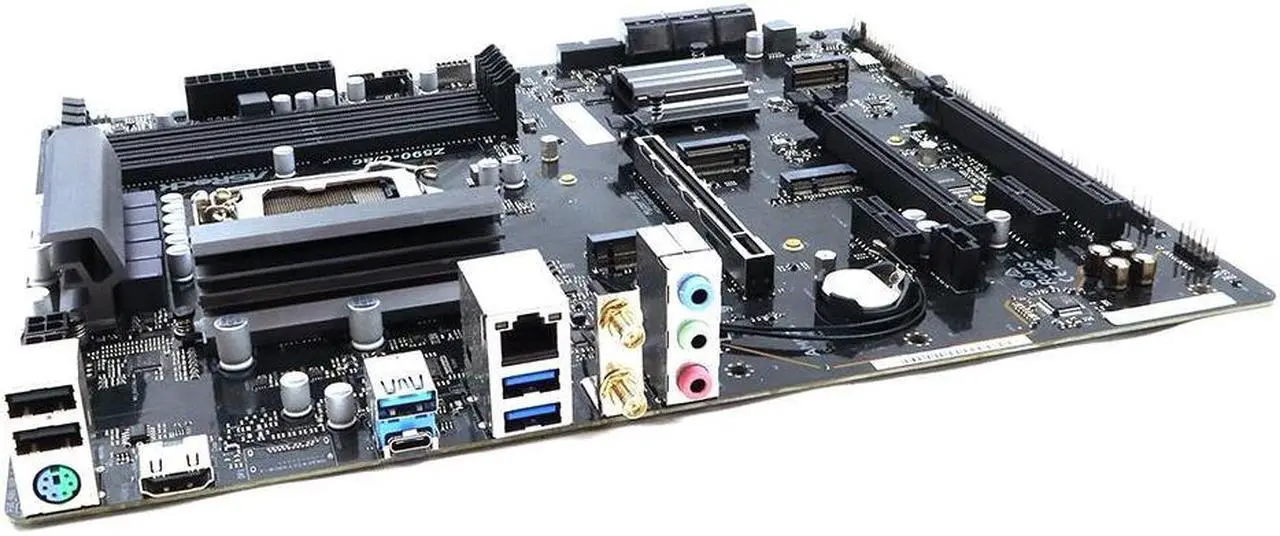

Z590-C/ac Asrock Intel Z590 Socket LGA1200 DDR4 Hdmi USB-C ATX Motherboard Intel LGA1200 Motherboard - OEM

Model: Z590-C/ac
Part Number: 80-MXBFZ2-A1A02
Chipset: Intel Z590
Socket: Intel LGA1200
Compatible/Supported CPU: 10th Gen Intel Core Processors and 11th Gen Intel Core Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 4800MHz(O.C.)
Storage Interface: SATA 3 6Gb/s
RAID Support: 0, 1, 5, 10
Network/Communications: Intel I219V Gigabit LAN 10/100/1000 Mb/s
Audio: Realtek ALC897 Audio Codec, 7.1 CH HD Audio, Supports Surge Protection, Nahimic Audio
Connectors: 1x SPI TPM Header, 1x Power LED and Speaker Header, 2x RGB LED Headers, 2x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector (Hi-Density Power Connector), 1x 4 pin 12V Power Connector (Hi-Density Power Connector), 1x Front Panel Audio Connector, 1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card), 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection), 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Input/Output Ports: 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection), 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection), 2x USB 3.2 Gen1 Ports (Supports ESD Protection), 2x USB 2.0 Ports (Supports ESD Protection), 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone
Expansion Slots: 3x PCI Express x16 Slots, 2x PCI Express 3.0 x1 Slots, 1x M.2 Socket (Key E), 6x SATA3 6.0 Gb/s, 2x M.2 Socket (M2_1), supports M Key type 2260/2280, 1x M.2 Socket (M2_3), supports M Key type 2260/2280/22110
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / Windows 11 64-bit

Please note, this motherboard comes with I/O Shield only! No cables, fan's bracket, fan's mounting backplate, or any other accessories!

• Grade A, Like New Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
