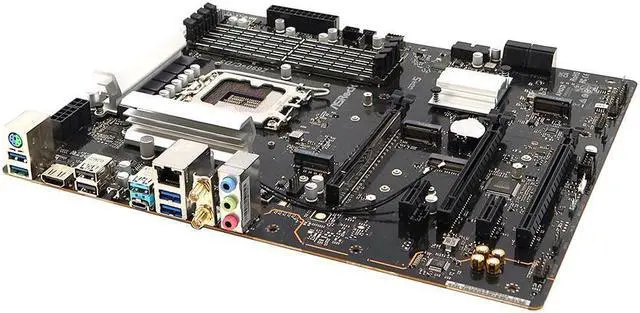

Z690-C/D5 Asrock Intel Z690 Socket LGA1700 DDR5 Hdmi Matx Motherboard NO I/O Intel LGA1700 Motherboard

Model: Z690-C/D5
Part Number: 80-MXBI72-A1A06
Chipset: Intel Z690
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 14th, 13th & 12th Gen Intel Core Processors
Max Supported Memory: 192GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 6000MHz+(OC)
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 5, 10 SATA, 0, 1, 5 NVMe
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: Wi-Fi 6E Module, IEEE 802.11a/b/g/n/ax, Dual-Band 2x2 with extended 6GHz band
Network/Communications: Giga PHY Intel I219V, Gigabit LAN 10/100/1000Mb/s
Audio: Realtek ALC897 Audio Codec, 7.1 CH HD Audio
Connectors: 1x SPI TPM Header, 1x Power LED and Speaker Header, 1x RGB LED Header, 2x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector (Hi-Density Power Connector), 1x 4 pin 12V Power Connector (Hi-Density Power Connector), 1x Front Panel Audio Connector, 1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card), 1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection), 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection), 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Input/Output Ports: 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection), 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection), 4x USB 3.2 Gen1 Ports (Supports ESD Protection), 2x USB 2.0 Ports (Supports ESD Protection), 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), 1x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone
Expansion Slots: 3x M.2 slots (Key M), 4x SATA 6Gb/s ports, 3x PCIe 4.0 x16 slots
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Please note, this motherboard does not include an I/O Shield, cables, fan's bracket, or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
