AEONS 15U Open Frame Network Server Rack 19-inch 4 Post AV Rack with Casters for Floor Standing and Wall Mount, Side Load for Extra Depth- Complete Kit with 1U and 2U Vented Shelves, Black

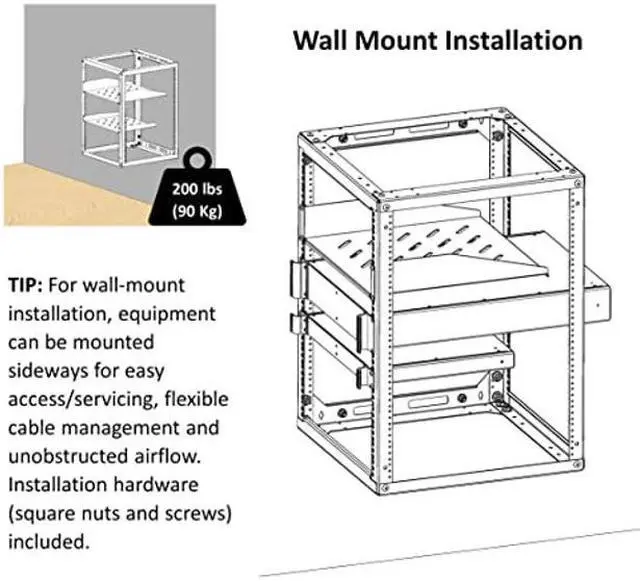

- Diverse Application: Wall-mounted or floor-standing with included brake casters. The side mount configuration allows for a greater mounting depth with the elimination of a rear wall barrier. Pre-drilled Base frames support securely fastening to the ground and stacking.
- Optimal Design: Easy assembly and installation. The compact design helps you maximize use of limited space. From front and rear of your equipment, flexible Cable Management with access from any side.
- Side Mount Option: open design and included vented shelves optimize air flow. For side mount configuration, unobstructed back-end of equipment reduces hot spots for efficient operation and longer lifespan of networking equipment.
- Heavy-Duty: Sturdy and Durable 4-post construction with SPCC cold-rolled steel. Support maximum load capacity up to 790 lbs (360kg) for floor standing, 200 lbs (90kg) for wall mounting. The black RAL9005 powder coat finish makes rack resistant to scratching and rusting.
- Complet
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

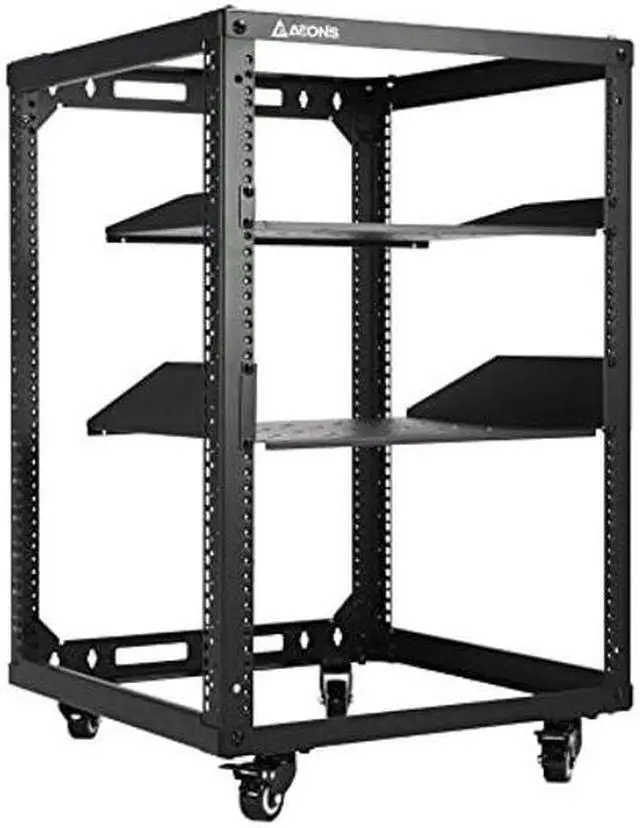

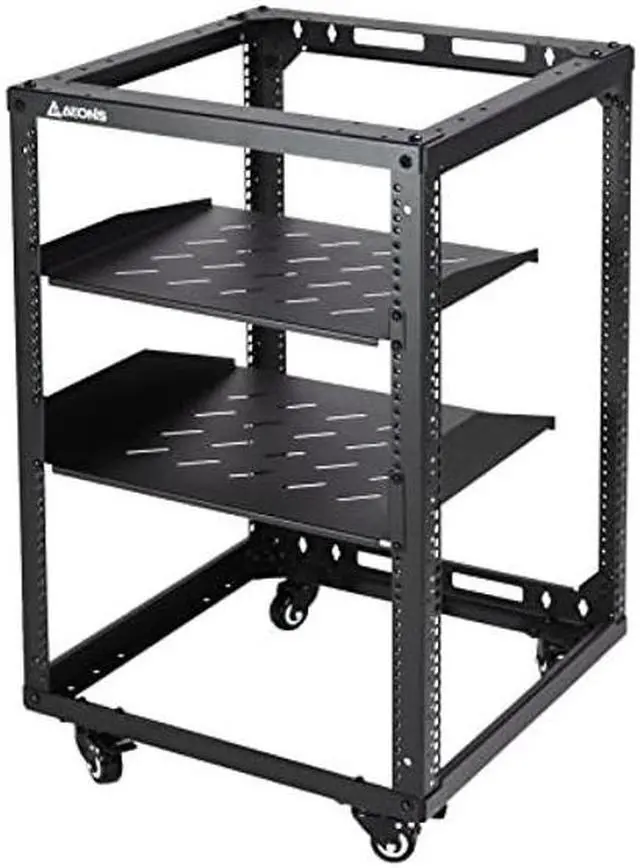

This Wall-Mount & Floor-Standing Network Open Frame Rack supports both front and side mount, enabling 19-inch servers, A/V or network equipment to be installed parallel or perpendicular to the wall, ideal for applications in closets, back offices, or anywhere where space is limited.
A side mount configuration allows for a greater mounting depth with the elimination of a wall barrier, also enables unobstructed maximum airflow from the front to the back-end of equipment that reduces hot spots, resulting in a more efficient operation and a longer lifespan. The open design also allows easy access to the front and rear of equipment, from any angle, for cable management and servicing.

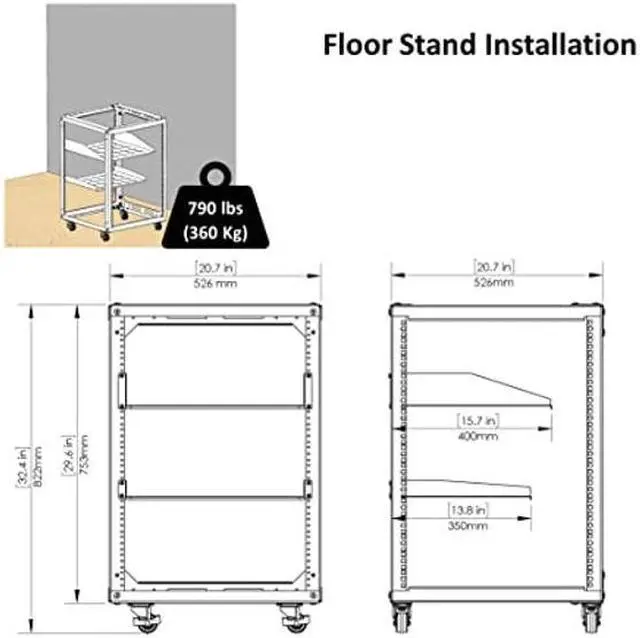

Rack: 15U (30" w/o casters) height, 20.7" width, and 20.7" depth.
Shelf: 1U x 14" deep, 2U x 16" deep.
Rack weight capacity: 790lbs on the floor, 200lbs wall mounted
Shelf weight capacity: 1U 30lbs, 2U 50lbs

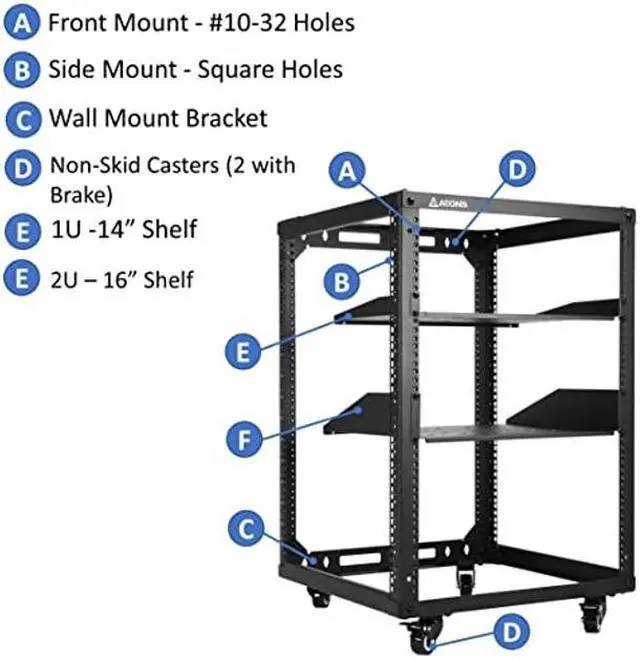

Mounting screws: #10-32 x 3/4 Screws, M6 Square Nuts and Screws.
Expandable and stack-able (for purchase of multiple racks)
Material: 2.0 mm SPCC steel
Package includes:
1 x 4-Post rack (Easy Assembly Required)
1U x 14" shelf
2U x 16" shelf
4 x Casters (2 with brake)
1 x Screw package
A side mount configuration allows for a greater mounting depth with the elimination of a wall barrier, also enables unobstructed maximum airflow from the front to the back-end of equipment that reduces hot spots, resulting in a more efficient operation and a longer lifespan. The open design also allows easy access to the front and rear of equipment, from any angle, for cable management and servicing.
Specifications
:Rack: 15U (30" w/o casters) height, 20.7" width, and 20.7" depth.
Shelf: 1U x 14" deep, 2U x 16" deep.
Rack weight capacity: 790lbs on the floor, 200lbs wall mounted
Shelf weight capacity: 1U 30lbs, 2U 50lbs
Mounting screws: #10-32 x 3/4 Screws, M6 Square Nuts and Screws.
Expandable and stack-able (for purchase of multiple racks)
Material: 2.0 mm SPCC steel
Package includes:
1 x 4-Post rack (Easy Assembly Required)
1U x 14" shelf
2U x 16" shelf
4 x Casters (2 with brake)
1 x Screw package
