ASUS E3 PRO GAMING V5 LGA 1151 Intel C232 SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Desktop Motherboard Model E3-PRO V5

Brand : ASUS
Model : E3 PRO GAMING V5

Supported CPU:-
CPU Socket Type : LGA 1151
CPU Type : Xeon E3-1200 v5 / Core / Pentium / Celeron (LGA1151)
Supported CPU Technologies : Turbo Boost Technology 2.0

Chipsets :-
Chipset : Intel C232

Memory:-
Number of Memory Slots : 4×288pin
Memory Standard : DDR4 2133
Maximum Memory Supported : 64GB
Channel Supported : Dual Channel

Expansion Slots:-
PCI Express 3.0 x16 :
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1

PCI Express x1 : 2 x PCIe 3.0/2.0 x1
PCI Slots : 2 x PCI Slots

Storage Devices:-
SATA 6Gb/s : 6 x SATA 6Gb/s
M.2 : 1 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD) *2
*2: When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.
SATA RAID : 0/1/5/10

Onboard Video:-
Onboard Video Chipset : None

Onboard Audio:-
Audio Chipset : SupremeFX
Audio Channels : 8 Channels

Onboard LAN:-
LAN Chipset : Intel I219-LM
Max LAN Speed : 10/100/1000Mbps

Rear Panel Ports:-
PS/2 : 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)

RJ45 : 1 x RJ45
USB 3.1 :
1 x USB 3.1 (red) Type-A
1 x USB 3.1 Type-C
USB 3.0 : 4 x USB 3.0
USB 1.1/2.0 : 2 x USB 2.0
S/PDIF Out : 1 x Optical
Audio Ports : 5 Ports

Internal I/O Connectors:-
Onboard USB :
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

Other Connectors:
1 x COM port(s) connector(s)
1 x CPU Fan connector(s) (1 x 4-pin)
3 x Chassis Fan connector(s) (3 x 4-pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x Water Pump header (4-pin)
1 x ROG extension (ROG_EXT) header(s)

Physical Spec:-
Form Factor : ATX
Dimensions (W x L) : 12.0" x 9.6"
Power Pin : 24 Pin

Features:-
Multi-GPU Support:
Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 2-Way CrossFireX Technology

Special Features:-
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS EPU:
- EPU
ASUS Exclusive Features:
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 3
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer
RAMCache
Operating System Support
Windows 10, 64bit
Windows 8.1, 64bit
Windows 7, 32bit/64bit *4

BIOS:
128MB Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc:
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

*4: Please refer to ASUS website and download "Windows 7 installation guide" and "ASUS EZ installer" to install Windows 7.

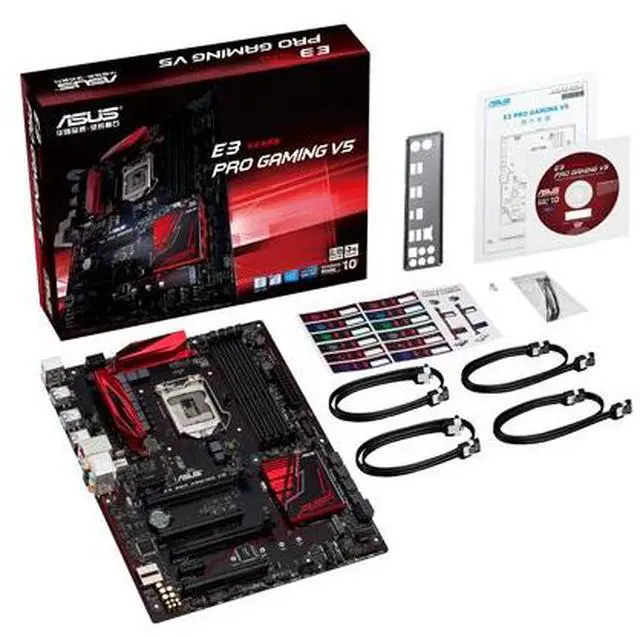

Package Contents:-
Accessories:
User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x pack of cable tie
1 x Supporting DVD
1 x 12 in 1 Cable Label (s)
