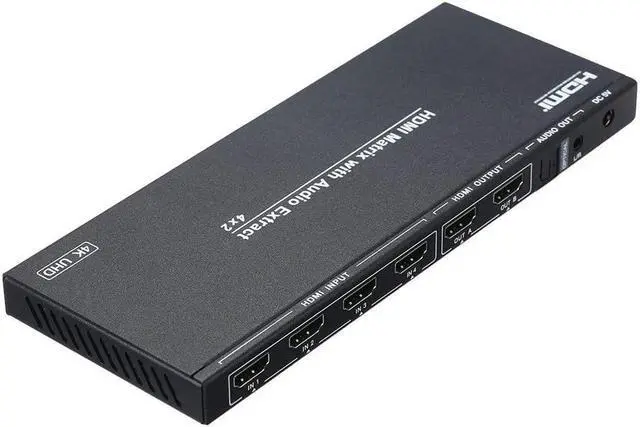

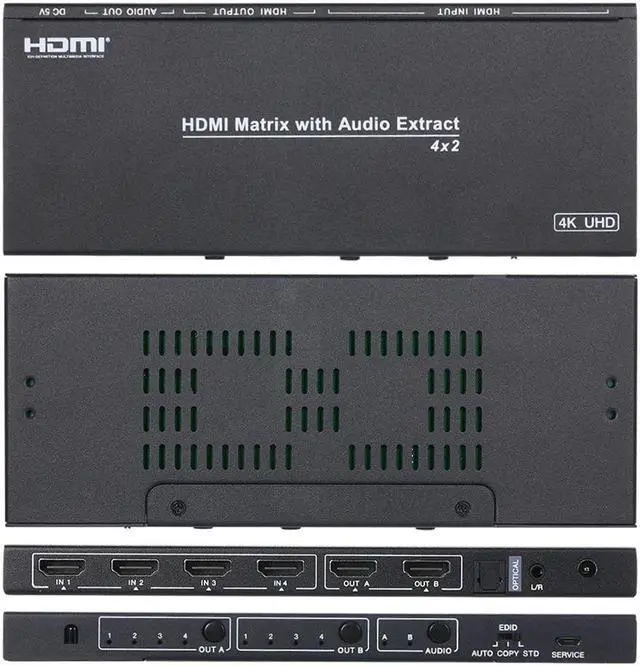

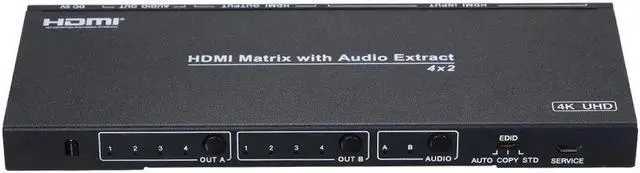

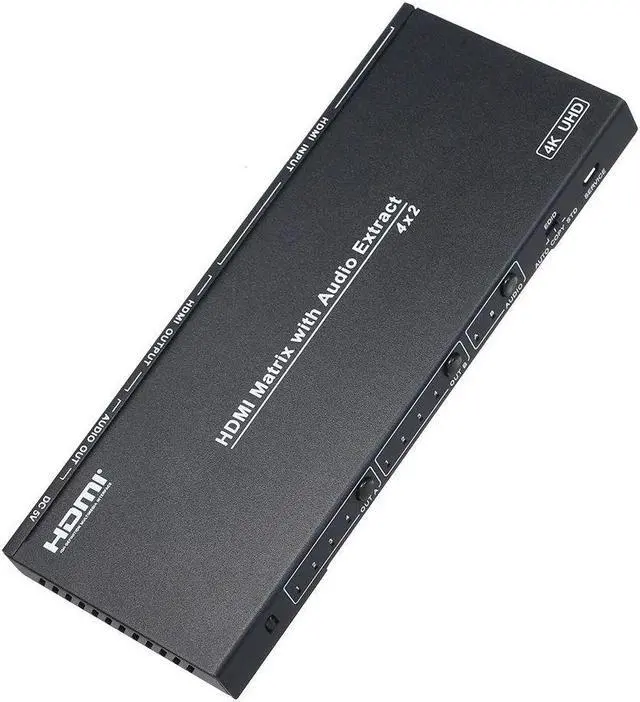

HD Matrix with Audio Extract 4x2 1080P HD Splitter Video Converter

Specification:HD compliance: HD 1.4bHDCP: HDCP 2.2 and HDCP 1.4Video resolution: 480P@60Hz, 720@60Hz, 4080P@60Hz,1080P 3D@60Hz,4K24/30Hz,4K2K@50/60Hz(4:2:0)Color spcae: RGB/YCbCr 4:2:0, YCbCr 4:4:4, YCbCr 4:2:2Color depth: 8-bit, 10-bit, 12-bitHD audio formats: PCM2.0/5.1/7.1CH, Dolby 5.1, Dolby True HD, DTS HDL/R Audio formats: Analog stereo 2CHOptical audio formats: LPCM[2.0/2.1]CH, Dolby 5.1,Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1ESD protection: HUman-body model: 8kV(Air-gap discharge),4kV (Contact discharge)Item size: 19.8 * 7.8 * 1.6cm / 7.80 * 3.07 * 0.63in(L * W * H)Item weight: Approx.398 g / 14.04ozPackage size: 25 * 18 * 5.5cm / 9.84 * 7.09 * 2.17in(L * W * H)Package weight: 600g / 21.16oz Features:HD 1.4, HDCP2.2/HDCP1.4 and DVI 1.0 compliant.Support HD resolution. The maximum up to 4K2K@50/60Hz (4:2:0).Support digital and analog audio extract output from output A or output B.EDID can be selected AUTO, COPY and STD mode VIA SELECTOR ON PANEL.Support analog audio PCM2.0.Support optical audio pass-through format including LPCM 2.0/2.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1.Control is via on-panel button and IR remote control.
