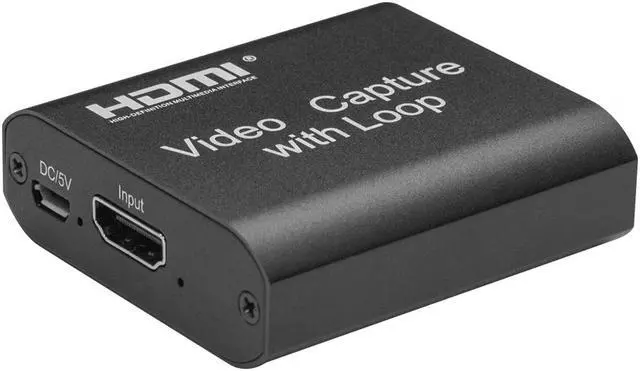

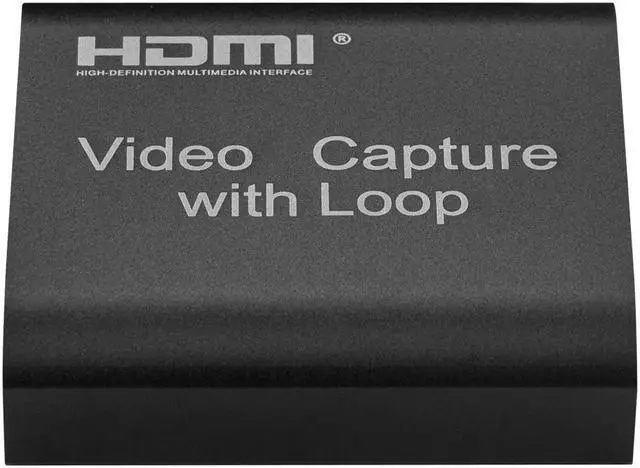

4K HDM I 1080P High Definition USB Video Capture Card with Loop

Specifications:
Name: Video
CaptureHDM I resolution: Max input can be 4KSupport video format: 8/10/12bit
Deep colorVideo output format: YUV/JPEG
Video output resolution: Max output can be 1080PSupport audio format: L-PCM
Input cable distance: 15m, AWG26 HDM I standard cableMax working current: 0.7A /5VDC
Operating temperature: -10
to +55Item size: 59 * 56 * 19mm / 2.32 * 2.20 * 0.75 inItem weight: 52g
/ 1.83 ouncePackage size: 100 * 50 * 50mm / 3.94 * 1.97 * 1.97 inPackage weight: 90g
/ 3.17 ounceNote: Computer
hardware configuration requirements:
CPU: PC i5-3400 or aboveNB i7-3537U 2.0GHZ or aboveGraphics card: PC NVIDIA GT630 or aboveNC

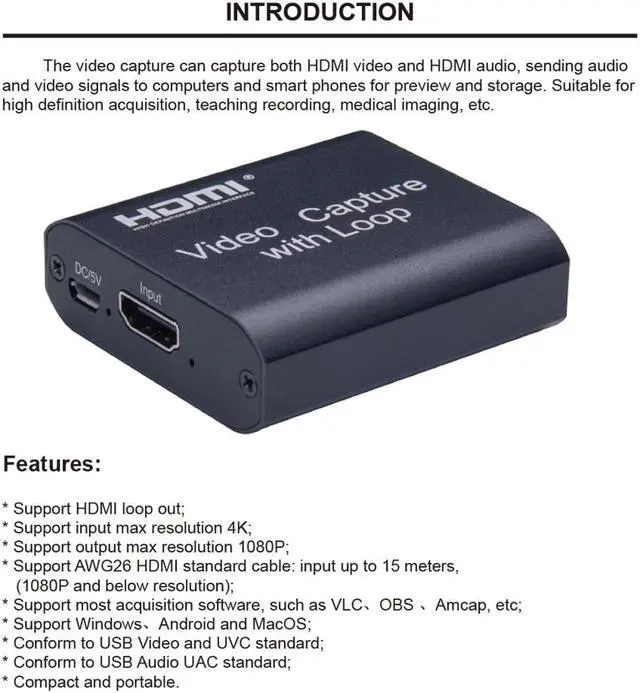

NVIDIA GT735M or aboveRun memory: 4G RAM The video capture can capture both HDM I video and HDM I audio, sending audio and video signals to computers and mobilephones for preview and storage. Suitable for high definition acquisition, teaching recording, and etc.

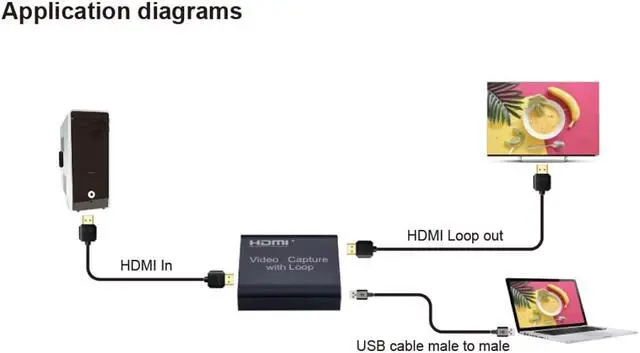

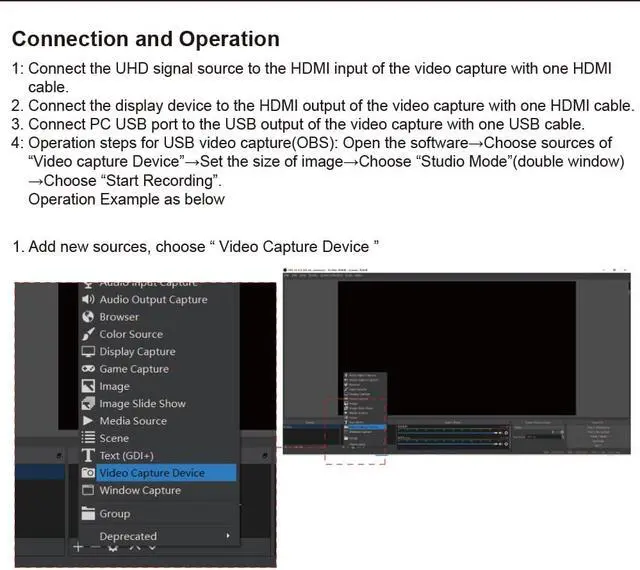

Connection and Operation: Connect the UHD signal source to the HDM I input of the video capture with one HDM I cable. Connect the display device to the HDM I output of the video capture with one HDM I cable. Connect PC USB port to the USB output of the video capture with one USB cable. Operation step for

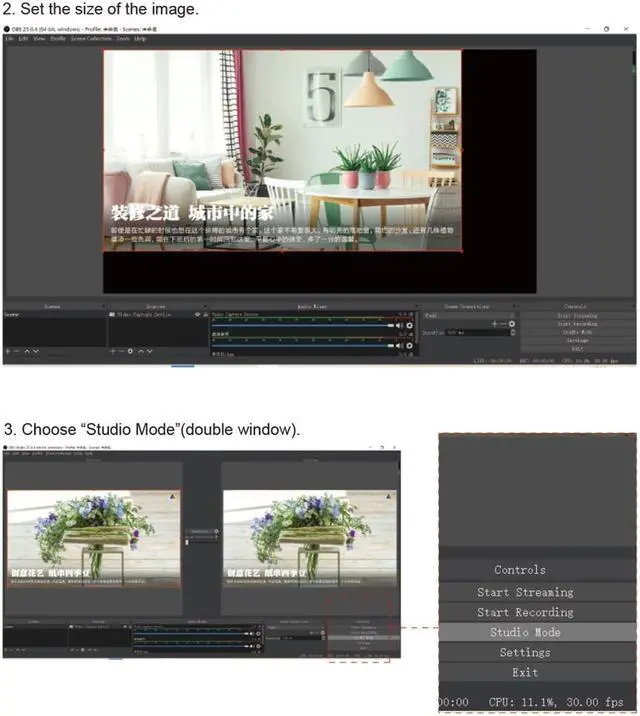

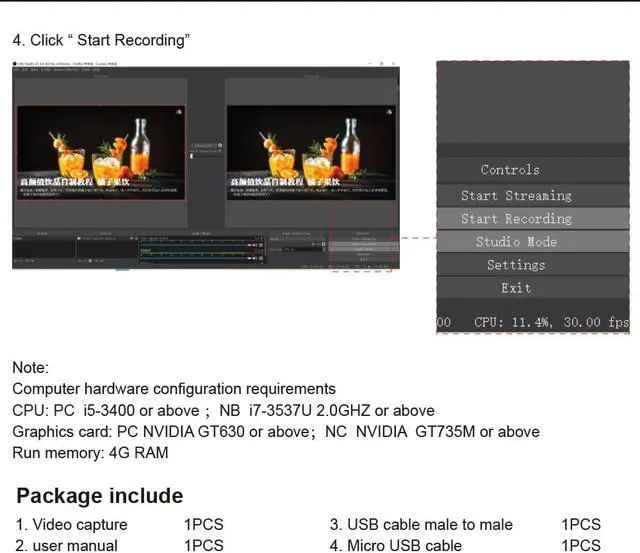

USB video capture (OBS): Open the softwareChoose sources of Video capture DeviceSet the size of imageChoose Studio Mode (double window) Choose Start Recording.
Features: Support HDM I loop out. Support input max resolution 4K. Support output max resolution 1080P. Support AWG26 HDM I standard cable: input up to 15 meters (1080P and below resolution). Support most acquisition software, such as VLC/OBS/Amcap, etc.. Support WindowsAndroid and MacOS. Conform to USB Video and UVC standard. Conform to USB Audio UAC standard. Compact and portable.
