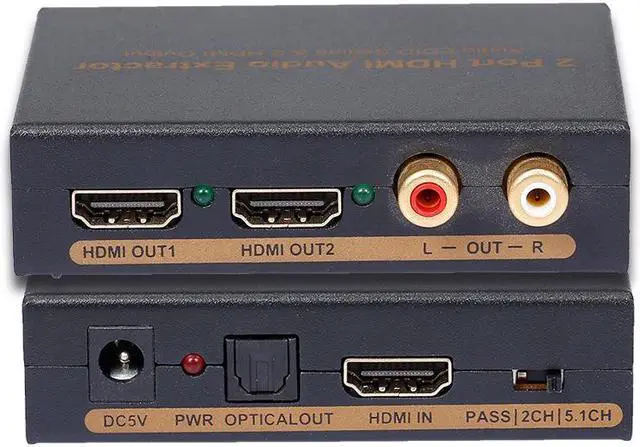

NK-912 2 Port HDMI Splitter Video Switcher Audio Extractor Audio EDID Setting 2 HDMI Output

Specifications: HDMI
Resolution: up to 1080P/50/60fs3D 24/30fsSupport
Video Color Format: 24bit/deep color, 30bit, 36bitHDMI
Audio Format: DTS-HD/Dolby-TrueHD/LPCM 2/ 5.1 / 7.1CH /DTS/Dolby-AC3/DSDSPDIF Digital
Audio Format: For Dolby Digital (AC3) /DTS/LPCM 2CHHDMI
Max Bandwidth: 225MHzHDMI
Max Baud Rate: 6.75G bpsInput/Output
TMDS Signal: 0.5 - 1.5V olts p-p (TTL)
Input/Output DDC Signal: 5Volts p-p (TTL) DAC Sample
Frequency Range: 32-192KHzDAC
Bit Rate Range: 16-24 BitAnalog
Output Level 1kHz@0dB): 1V
RMSSNR@ 0dB(CCIR/ARM):
90dBDistortion: 0.1 %Frequency
Response: 20Hz-20KHzHDMI Input
Cable Distance: 15m AWG26 HDMI Standard CableHDMI
Output Cable Distance: 20m AWG26 HDMI Standard CableMax Working Current: 600mAPower
Adapter Inpu: AC 100V240V 50HZ/60Hz, DC5V/1AOperating
Temperature: -10 to +55Storage
Temperature: -20 to +60Operating
Humidity: 10 to 90%RH (No Condensation)
Storage Humidity: 5 to 95%RH (No Condensation)
Item Size: 8.5 * 6.2 * 2.1 cm / 3.3 * 2.4 * 0.8 inchesItem
Weight: 144.4 g / 5.1 ozPackage
Size: 11.5 * 10.7 * 6.3 cm / 4.5 * 4.2 * 2.5 inchesPackage

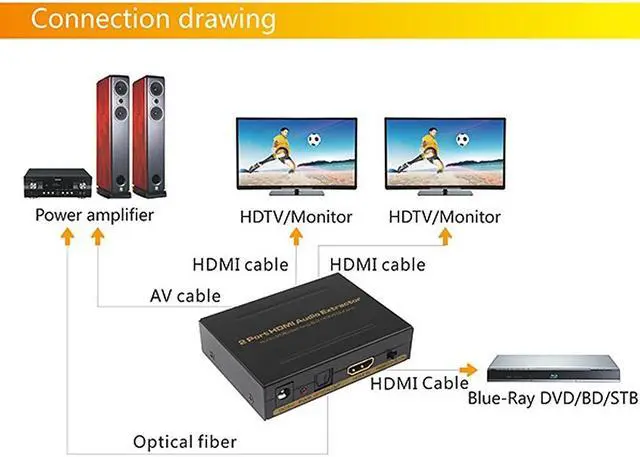

Weight: 256g / 9.03 oz Designed to make your A/V devices use more conveniently, comfortably, efficiently, etc., the 2 port HDMI audio extractor allows two HD monitors or TV to connect to one HDMI source to display the same HD screen, while extract audio signals from your HDMI source. You can take your original HDMI audio signal and convert it into digital optical or 2 channel analog audio output. Supports Dolby digital AC-3, DTS, LPCM and other digital audio format output, and it is a perfect a audio extractor for DVD, Blue-Ray DVD, PS2, PS3, Xbox360, HD Player, PC, etc.

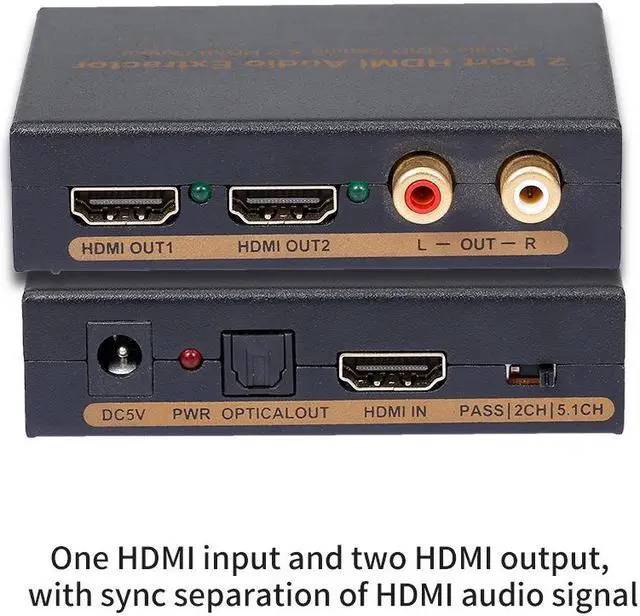

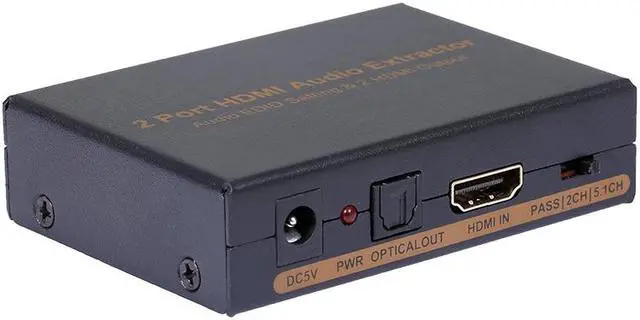

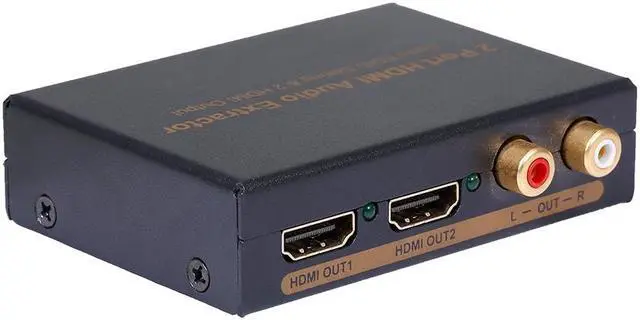

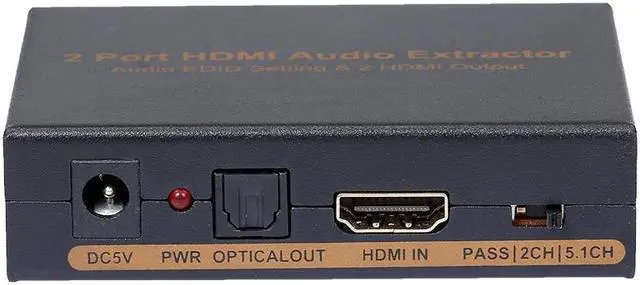

Features: Offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments. One HDMI input and two HDMI output, with sync separation of HDMI audio signal, supports 1x SPIDF optical digital audio output and 1x L/R stereo analog audio output. Supports HDMI input resolution up to 1080P/60Hz, and supports 3D (24/30fs). Supports SPDIF digital audio format, for Dolby digital (AC3), DTS, LPCM, and support 5.1CH output. Supports 3 modes of EDID management for audio formats, and allows to switch among built-in EDID (2CH/ 5.1CH ) and external EDID (TV). Equips with LED indicator, which lights up correspondingly when the output port is working. 24bit /192KHz DAC chip is adopted to ensure the high quality sound, with no signal loss, easy installation.
