Specifications: Brand
Name: GTMEDIACPU
frequency: 550MHz
Dual CoreFlash Memory: 64MB
SPI FlashDDR2 Memory: 512M
RAM
Demultiplexer: ISO/IEC 13818-1Input
Bit Rate: Max 100Mbit/sVideo
Decode: HEVC main profile@level 4.1 and main10 profile@L 4.1, High tier MPEG-2 MP@ML, H. 264 BP, MP&HP@L3/L 4.1 /L 4.2, AVS Jizhun profile and broadcast profile, MPEG-4 SP profile, advanced simple profile@L5, VC1 SP@ML, MP@HL, AP@L0-3, H263 baseline profile, JPEG
decoderPAL/NTSC: Automatic PAL/NTSC conversionAspect
Ratio: Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3
Letter BoxAudio Decode: MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC, Dolby AC3/AC3+, DRA
CH/ 5.1CHP anel display: 4-digit
LED displayWifi: Support USB Wifi dongle (MTK7601/RT5370)Softare
Upgrade: Software upgrades through USB port and RS232 upgrade.
Channel Edit: Various channel editing function(favorite, move, lock, skip, delete, rename, find, sort)Input
Voltage: AC 100V-250V, 50/60HzConsumption: 8W in operation, 1 W Standby

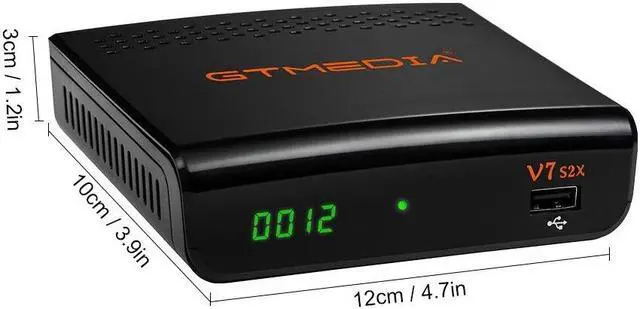

Power ModePackage Size: 20 * 17.5 * 5.5 cm / 7.9 * 6.9 * 2.2 inPackage
Weight: 440g / 15.5 oz
Features: Support DVB-S/S2/S2X, AVS+, VCM/ACM/multi-stream/T2MI. Support BISS auto roll, Full PowerVu, DRE &Biss key. Support Unicable, DiSEqC 1.0 / 1.1 / 1.2 /USALS Motor fully support. Support Full speed USB 3/4G dongle and USB wifi dongle. Support Online Movie; Support Cccam, Newcam.
Technical support website: www. freesat. cn.
