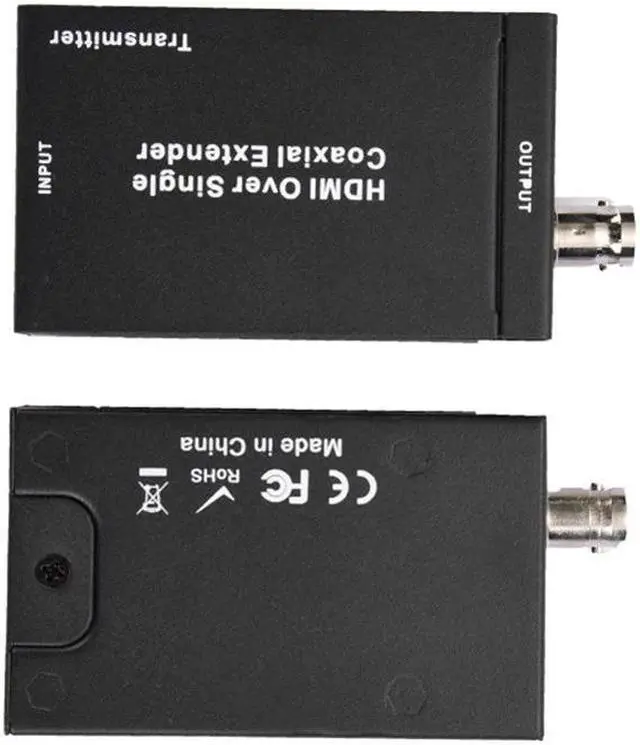

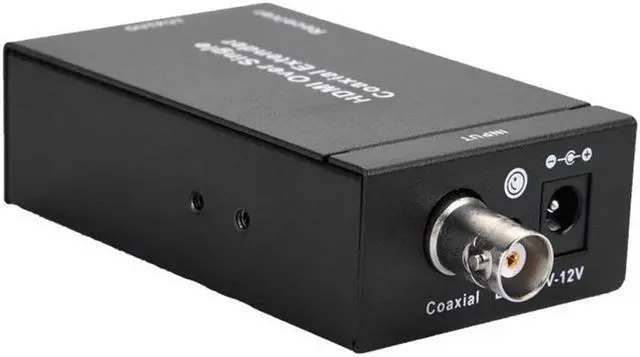

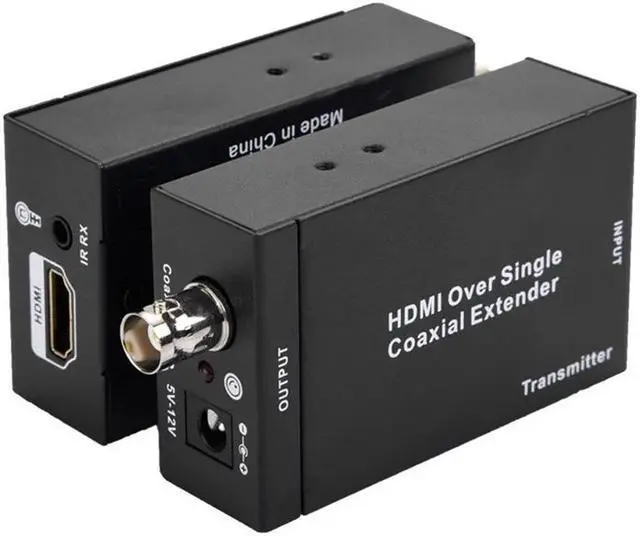

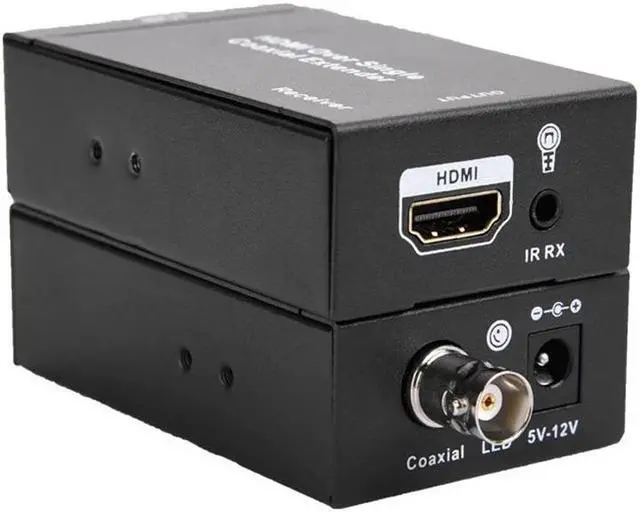

HDMI Over Single Coax Extender 75ohm RG-6U 1080P Coax Cable Transmitter Sender Receiver

Specification:
Model: NK-C100IRFrequency
Bandwidth: 225MHz/link (HDMI 1.3 )In/Output
Support Resolution: 480p, 576p, 720p@50/ 59.94, 60, 1080p@ 23.98 /24/25/ 29.97 /30/50/ 59.94 /60Input
TMDS Signal: 3.3 voltsInput
DDC Signal: 5.0 volts/P-PESD
Protection Human body model: 8kV (air-gap discharge), 4kV (contact discharge) Coaxial
Cable Distance: Full HD up to 100M (RG-6U cables) HD up to 200M (RG-6U cables) SD up to 300M (RG-6U cables )Power
Consumption: 2.3 watts (TX), 2.2 watts (RX)
Relative Humidity: 20-90 % RH (no condensation)
Item Size: 9.5 * 5 * 2.5 cm / 3.7 * 2 * 0.98 inchesItem
Weight: 230g / 8.1 ozPackage
Size: 21.5 * 15 * 5.5 cm / 8.5 * 5.9 * 2.2 inchesPackage

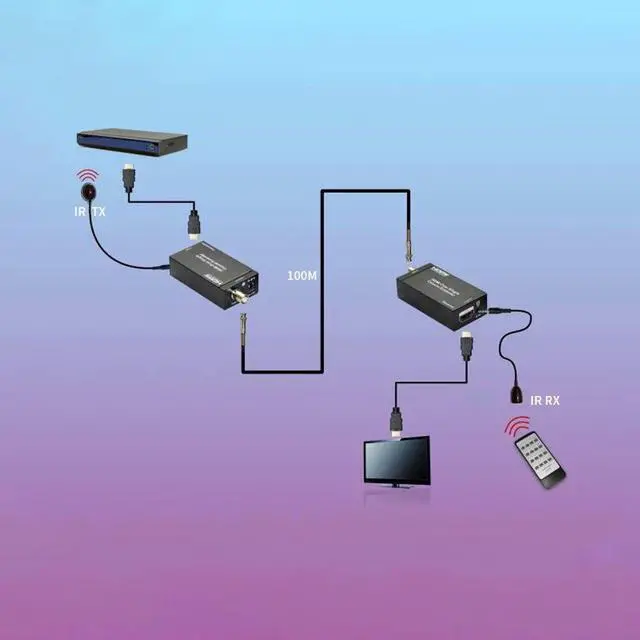

Weight: 475g / 16.8 oz The HDMI Over Single Coax Extender sends HDMI signals over just one 750ohm coaxial cable at maximun distance of 100m, which supports HDMI 1.3 and HDCP 1.1 and features Deep Color and 1080P. By using standard and widely available 75Ohm RG-6U cables, the HDMI Over Single Coax Extender makes HDMI signal extensions to be easier than heavy and expensive copper cable and more robust than optical fiber, which includes a transmitter and a receiver, and the former is used to capture the HDMI input with IR signals and carries the signals via one coaxial cable and the latter is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals. The Extender offers the most convenient solution for HDMI extension over a single coaxial cable with long distance capability, and is the perfect solution for any application.
Features: Sends HDMI signals over just one 750ohm coaxial cable at maximun distance of 100m, which supports HDMI 1.3 and HDCP 1.1 and features Deep Color and 1080P. Includes a transmitter and a receiver, and the former is used to capture the HDMI input with IR signals and carries the signals via one coaxial cable and the latter is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals. The high performance and reliability of the 75ohm makes the flexible extension of high-bandwidth HDMI 1.3 possible. The audio and video are transmitted digitally over the 75ohm RG-6U Coax cable with zero signal loss. Compliant with HDMI 1.3, HDCP 1.1 standards. Single link range is 1080p/60, 12 bit color depth and supports digital video formats in Deep Color Mode at up to 12bits/color. Supports PCM 48KHz audio and supports Cascade function in Transmitter and Receiver, easy to build a network system by installer. Bi-directional IR system allowing for control of source or display (IR accessories included).
