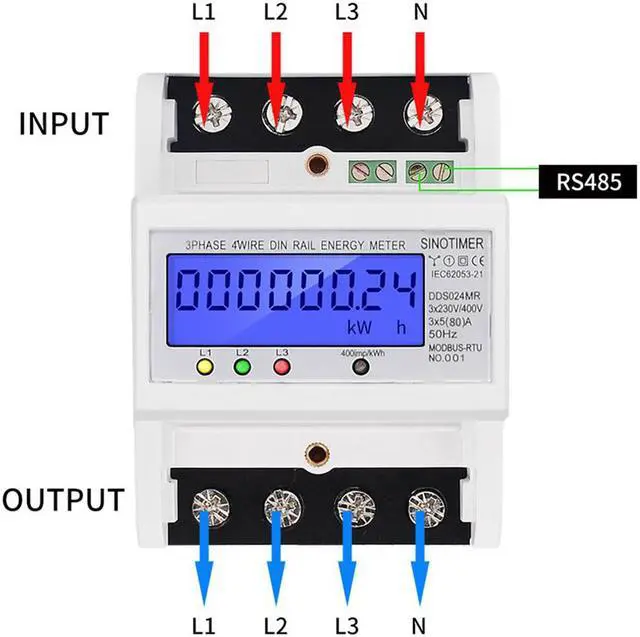

Multifunctional RS485 Modbus 3 Phase 4 Wire Electronic Wattmeter Power Consumption Energy Meter 5-80A 380V AC 50Hz Backlight

Description: The meter is multifunctional rotation display energy KWh, voltage, current, power, frequency and power factor.
Specifications:
Brand: SINOTIMER
Model:
DDS024MRType: Three Phase Four Wire Electronic TypeMateriel: Metal + ABS
Reference Voltage: 3 X 230/400 (V)
Reference Current: 3 X 5 (100)
ARated Frequency: 50Hz/60HzConstant
Pulse: 400imp
/ kWhDisplay: LCD 6 + 2Power
Consumption: 2W, 10VAStarting
Current: 0.004I bOperating
Temperature: -20 ~ 55CStorage
Temperature: 25 ~ 70COperating
Voltage: 0.9 - 1.1
Rated VoltageUtmost Voltage: 0.8 - 1.15

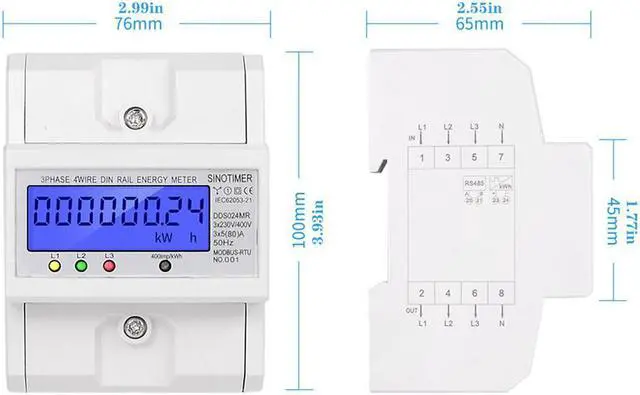

Rated VoltageSize: 10.1 * 7.6 * 6.5 cm / 3.97 * 2.99 * 2.55 in Multifunctional RS485 Modbus 3 Phase 4 Wire Electronic Wattmeter Power Consumption Energy Meter 5-80A 380V AC 50Hz
BacklightFeatures: 1. This energy meter is with RS485 coummunication. 2. 6+2 digits LCD display shows the total power consumption. 3. It features high reliability, small volume, light weight, beautiful appearance, advanced technology. 4. Standard 35mm din Rail installation, easy and convenient. 5. It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life. 6. This table is suitable for the measurement of rated frequency 50 Hz or 60 Hz single-phase ac active electricity, used for fixed installation indoors. 7. The meter is fully in conformity with the relevant technical requirements of GB/T 17215.321 -2008 national standard and the IEC62053 international standard of grade 1 or level 2 single-phase energy meter, which can directly and accurately measure active energy of the energy consumption.
