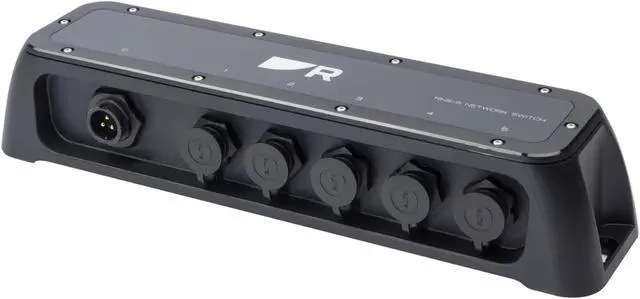

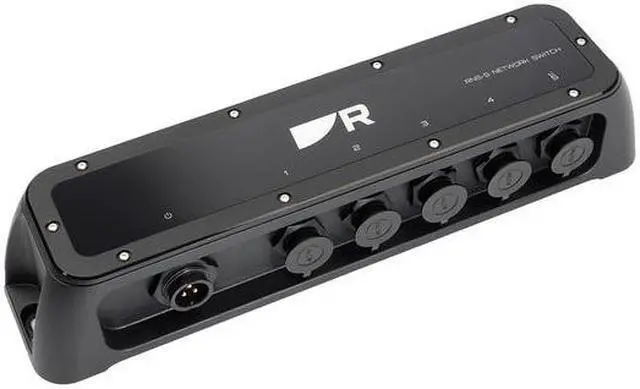

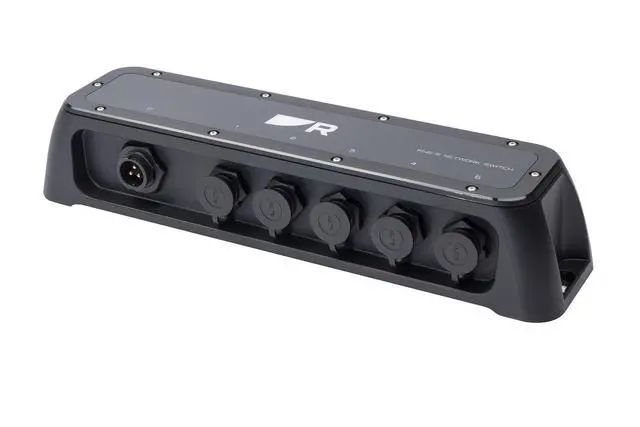

Raymarine RNS-5 Network Swtich

Raymarine RNS-5 5 Port raynet netwoek
SwitchModel: A807315 RayNet Ethernet gigabit ports for fast and reliable connectivityRugged IPX6 and IPX7 constructionReliable, waterproof RayNet connector Ethernet cable portsDesigned for simple bulkhead mountingLED power and network port status indicatorsUnmanaged- simply plug and play with Raymarine devicesNo complicated setup or confi gurationThe RNS-5 network switch is designed for expanding Raymarine integrated chartplotter systems using RayNet high-speed Ethernet cabling. Use the RNS-5 to integrate Axiom displays with radars, sonar modules, IP cameras, and Teledyne FLIR thermal cameras. The RNS-5 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Two RNS-5 switches can be daisy-chained together for larger systems. The RNS-5 is simple to install and requires no complicated setup. SpecificationsPOWER SPECIFICATIONNominal supply voltage12 or 24 V dcOperating voltage range9 to 32 V dcPower ConsumptionENVIRONMENTAL SPECIFICATIONOperating temperature range-25° C (-13° F) to + 55° C (131° F)Storage temperature range-30° C (— 22° F) to + 70° C (158° F)Humidityup to 93% @ 40° C (104° F)Water ingress protectionIPx6PHYSICAL SPECIFICATIONDimensions (w x h x d) 286 mm ( 11.26 in) x 69 mm ( 2.72 in) x 55 mm ( 2.17 in)Weight.

36 Kg (. 79 lbs)NETWORKProtocalsRayNet Ethernet. Legacy SeaTalkHS using an adaptor cableConnection Speed1 GigabitNumber of Ports5
