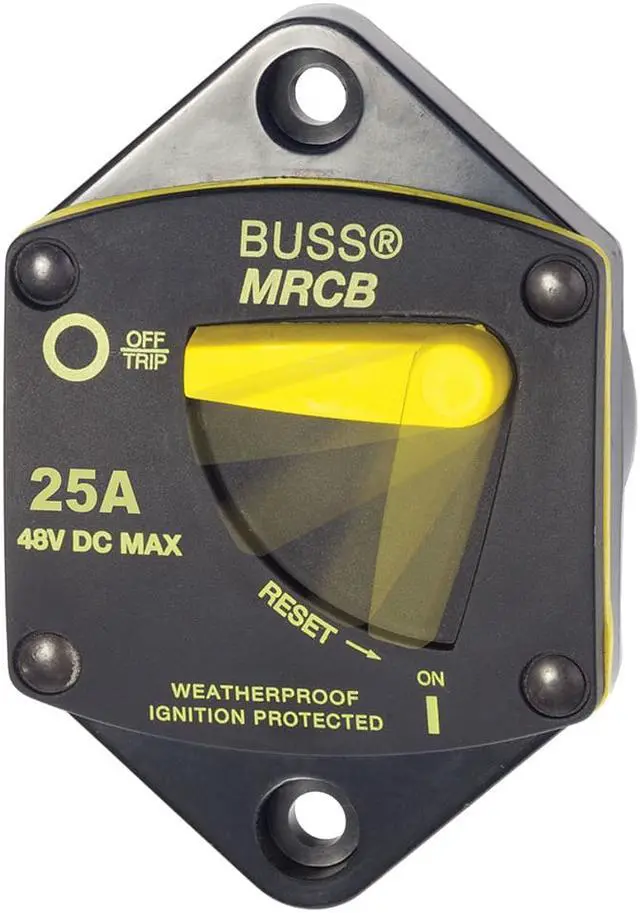

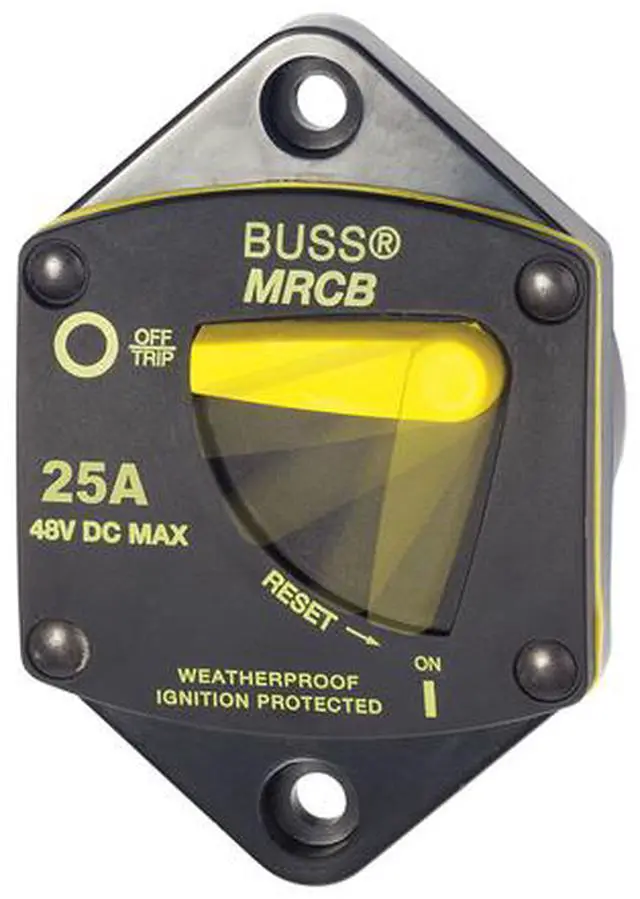

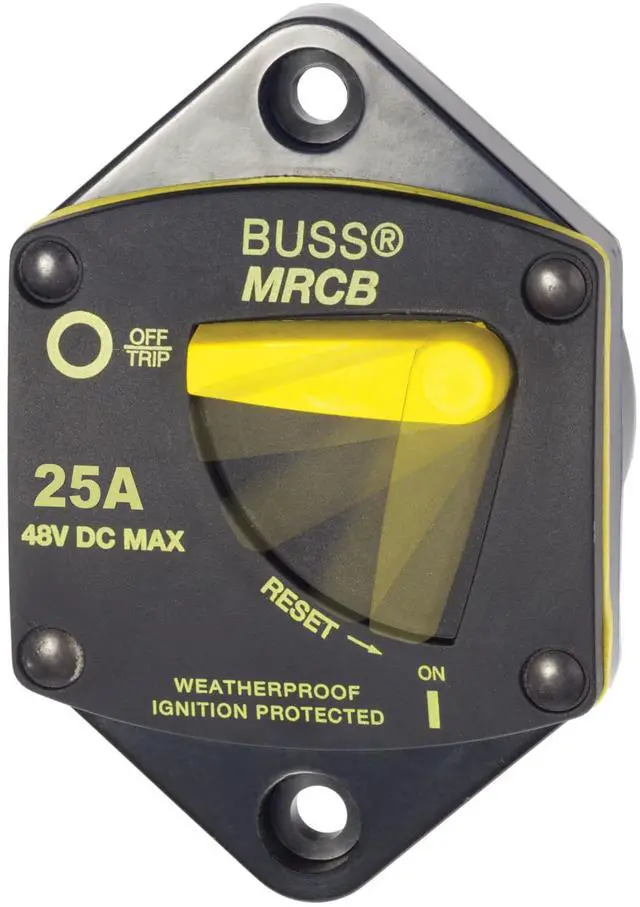

BLUE SEA 7035 CIRCUIT BREAKER 25A

BLUE SEA 7035 CIRCUIT BREAKER 25A187 - Series Thermal Circuit Breakers - Panel Mount25
Amp Circuit BreakerPN:
7035Features: Combines switching and circuit protection into a single deviceAll components meet SAE J1171 external ignition protection requirementsClear, single lever operationTrip Free design cannot be held ON during fault current conditionWaterproofRecessed mounting holes for clean appearanceSelf-trimming case eliminates the need for mounting panels or trim bezelsRound case permits easy installation with standard sized hole sawLarge clearance around terminal studs accept heavy gauge wire lugsRobust 5/16 terminals provide high torque connectionsLarge lever with vertical/horizontal orientation provides indication of trip statusIgnition protected - safe for installation aboard gasoline powered boats
SpecificationsCircuit Breaker Class: Type III - Switchable / Manual Reset -
Trip FreeType: Thermally
Responsive Bi-Metal BladeCase Material: Thermoset
PolyesterVoltage Rating: 48
Volts DC MaximumInterrupt Rating: 5, 000 Amperes @12 Volts DC3, 000 Amperes @24 Volts DC1, 500 Amperes @42
Volts DCOperating Temperature Range: -25C
to +82CWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings. ca. gov.
Amperage: 25a
