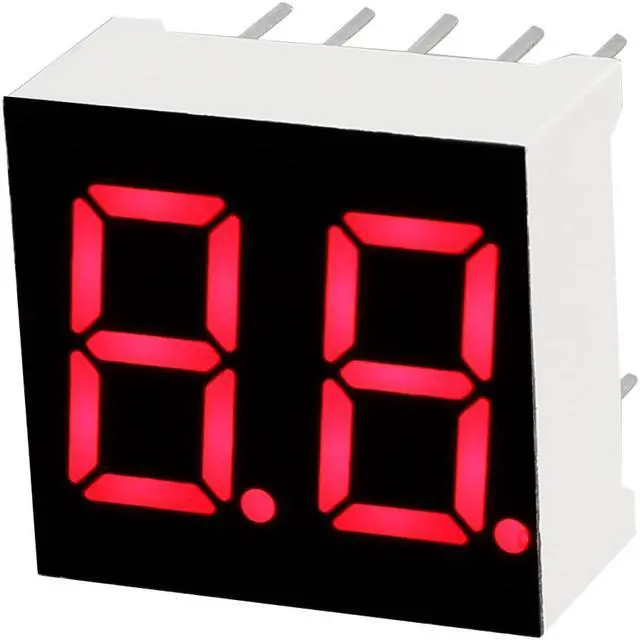

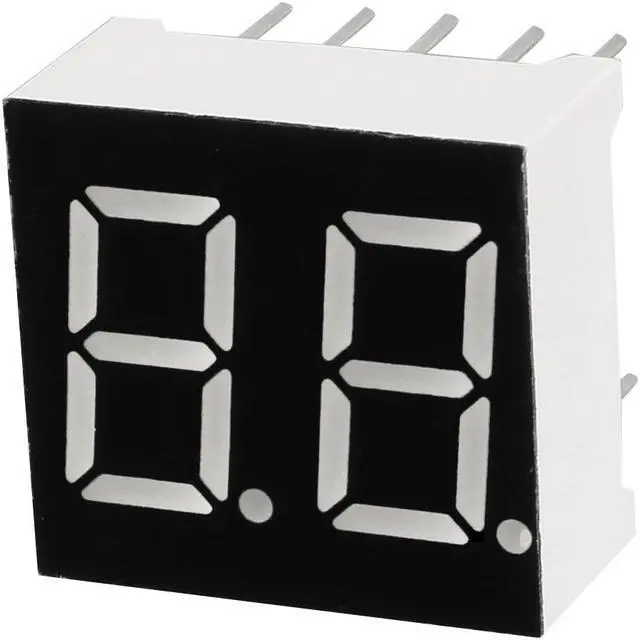

Common Cathode 10 Pin 2 Bit 0.59 x 0.55 x 0.28 Inch 0.35" Red LED Display 5pcs
- Common Anode: 10-5; Digital Display: 2 Digit; Digital Number: 2 Bit 7 Segment; Emitted Color: Red
- Pin Number: 10; Continuous Forward Current: 20mA; Average Forward Voltage: 2V;
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Used widely in home appliances, instrument, car accessory, etc.
specifications
Product Name : LED Digital Display Tube
Type : Common Cathode

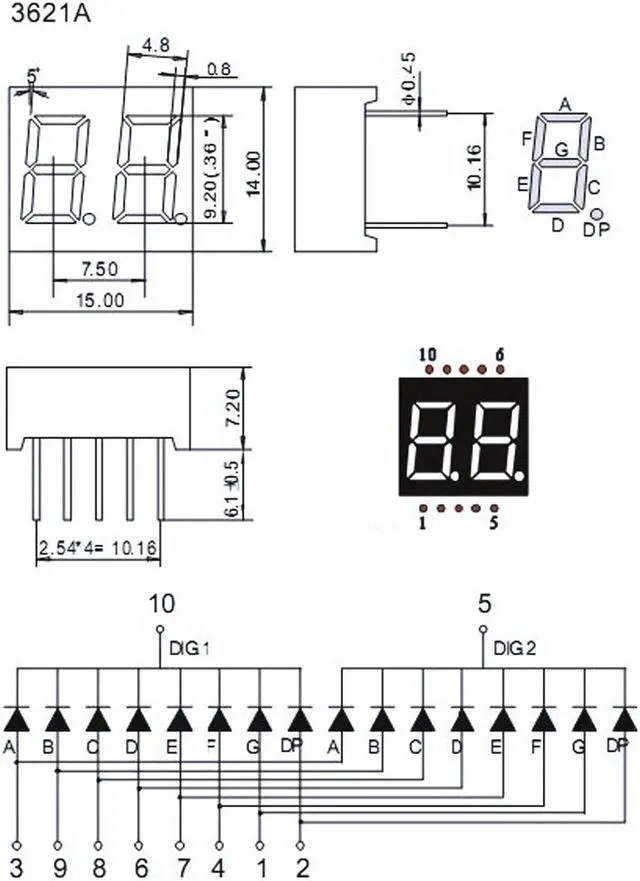

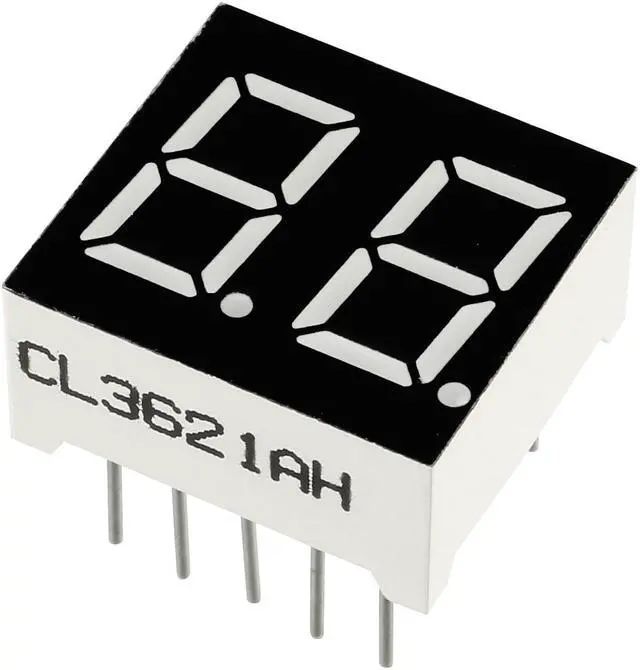

Model : 3621AH
Common Anode : 10-5
Digital Display : 2 Digit
Digital Number : 2 Bit 7 Segment
Emitted Color : Red
Pin Number : 10
Continuous Forward Current : 20mA
Average Forward Voltage : 2V
Power Consumption : 36mW
Luminous Intensity : 11mcd
Number Height : 0.35 inch
Panel Size : 15 x 14 x 7.2mm / 0.59 x 0.55 x 0.28 inch (L*W*H)
Total Size : 15 x 14 x 13.5mm / 0.59 x 0.55 x 0.53 inch (L*W*H)
Material : Plastic, Metal
Color : Black, White

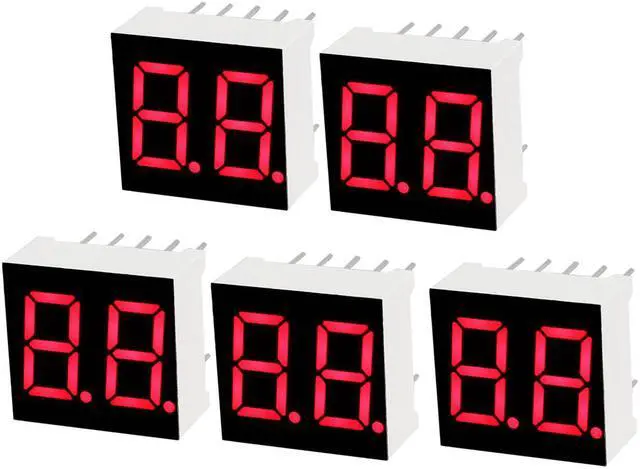

Package Content : 5 x LED Digital Display Tube
