10-in - 1300w Max Power, Single 4W Voice Coil, Armid Fiber IMPP cone, Rubber Surround - Subwoofer

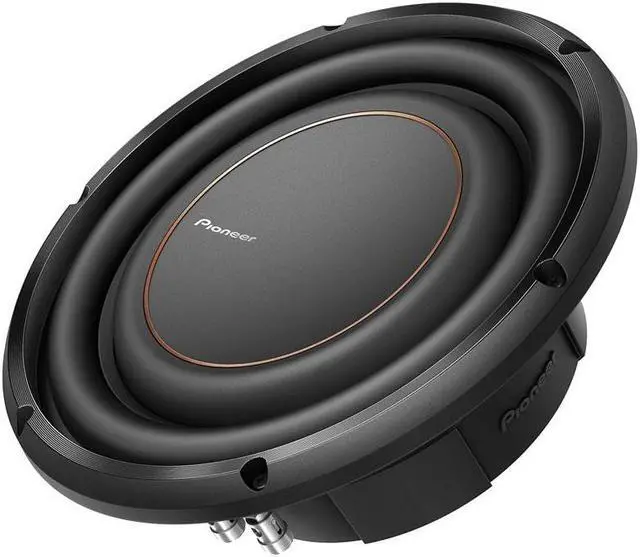

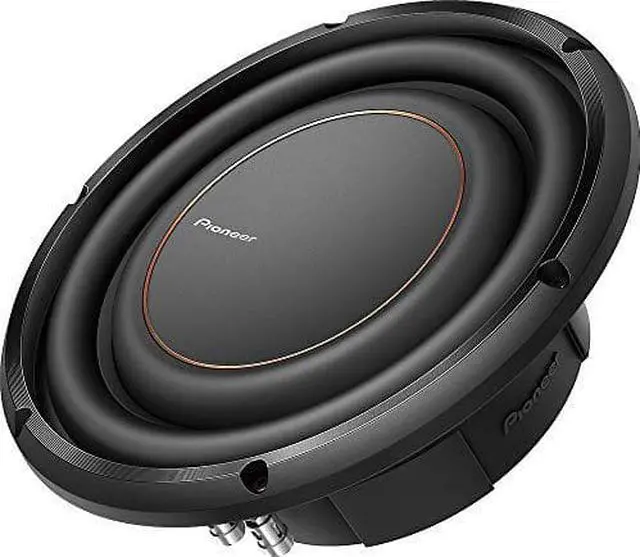

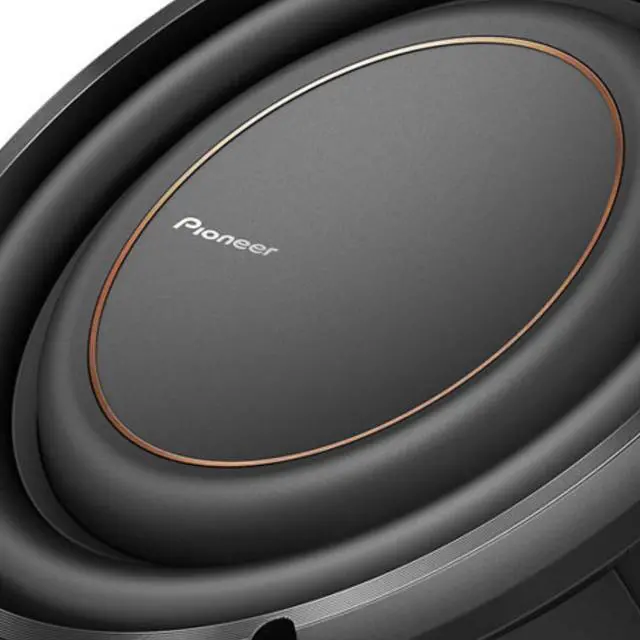

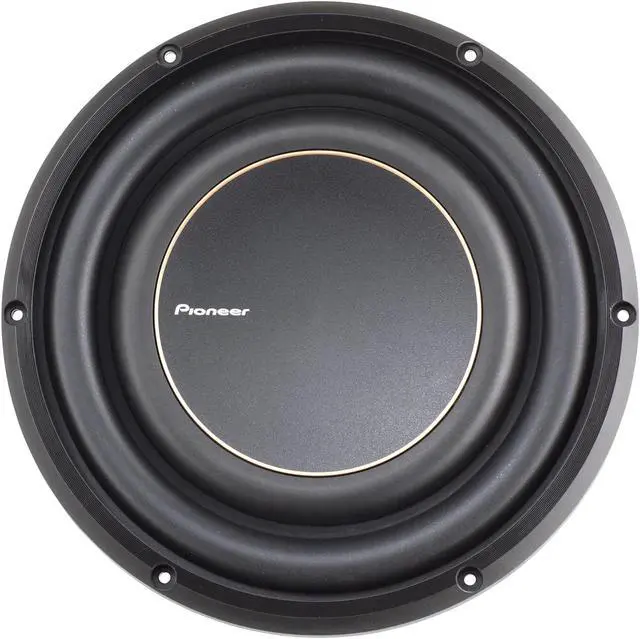

Pioneer TS-D10LS4 10" 1300W Single 4 Voice Coil Shallow Mount Subwoofer

The Pioneer TS-D10LS4 is a powerful 10" shallow mount subwoofer that delivers impressive bass performance in tight spaces. With a maximum power handling of 1300 watts and a single 4-ohm voice coil, this subwoofer provides strong, deep bass while maintaining installation flexibility. The Aramid Fiber Interlaced IMPP cone ensures enhanced durability and responsiveness, producing clear, accurate sound even at high volumes. Designed for shallow installations, the TS-D10LS4 is ideal for vehicles with limited space but high-quality audio needs. It combines superior materials and engineering to elevate your car audio experience.

Product Highlights:

• Condition: New


• 1300W Max / 350W RMS power handling


• 10" Aramid Fiber Interlaced IMPP cone


• Butyl rubber surround with dual Meta-Aramid fiber spider


• Frequency response: 20 Hz – 3.4 kHz


• Single 4-ohm voice coil configuration


• Sensitivity: 76 dB (1W/1m)


• Shallow mounting depth: 3.3" (84mm)


• Recommended sealed enclosure volume: 0.6 cu. ft.


• Cutout dimensions: 9" (23 cm)


• Free-air resonance (Fs): 37 Hz


• Linear excursion (Xmax): 8 mm


• Total speaker Q (Qts): 0.8


• Ferrite magnet weighing 43.4 oz


• Durable stamped metal basket construction


• Copper voice coil wire with glass imide bobbin


• Push-type wire terminals for easy setup

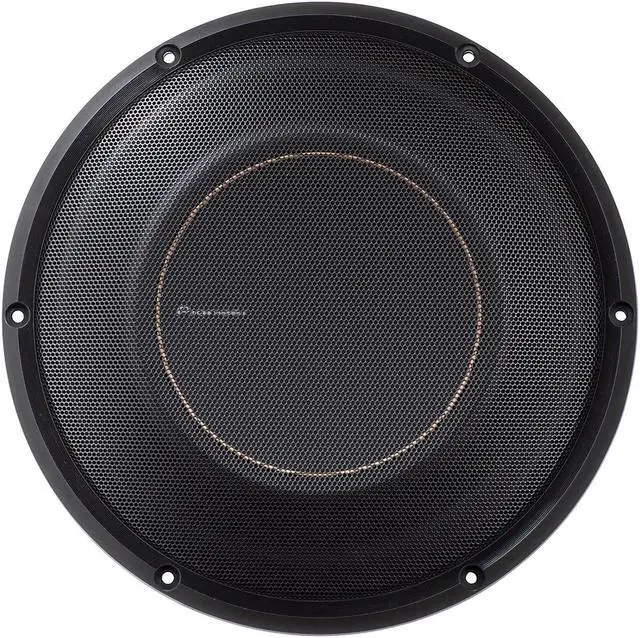

• Subwoofer grille (UD-10GL) sold separately
