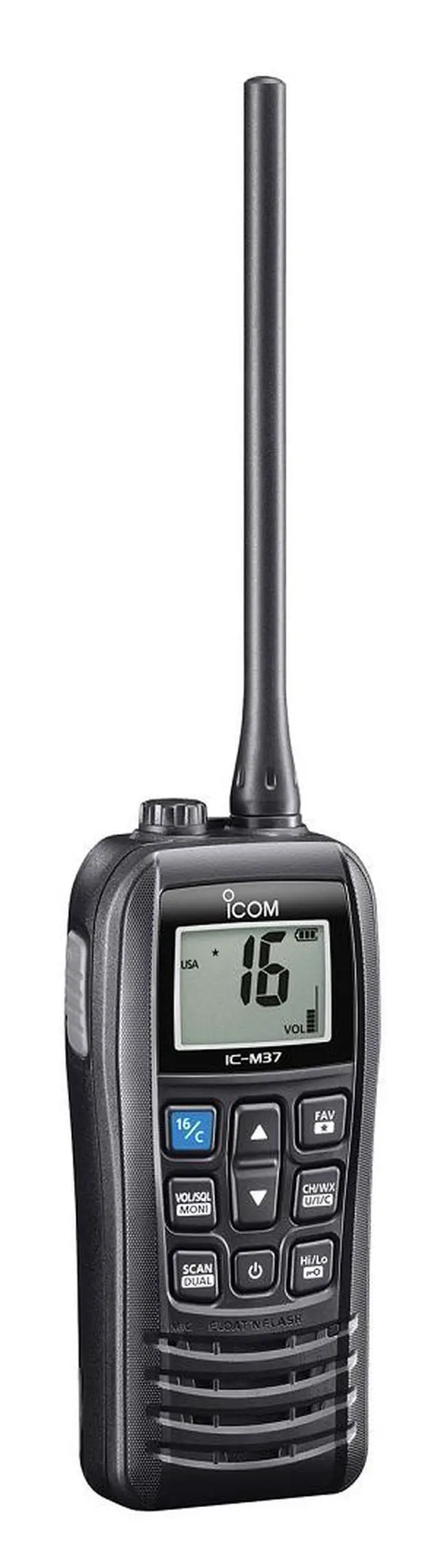

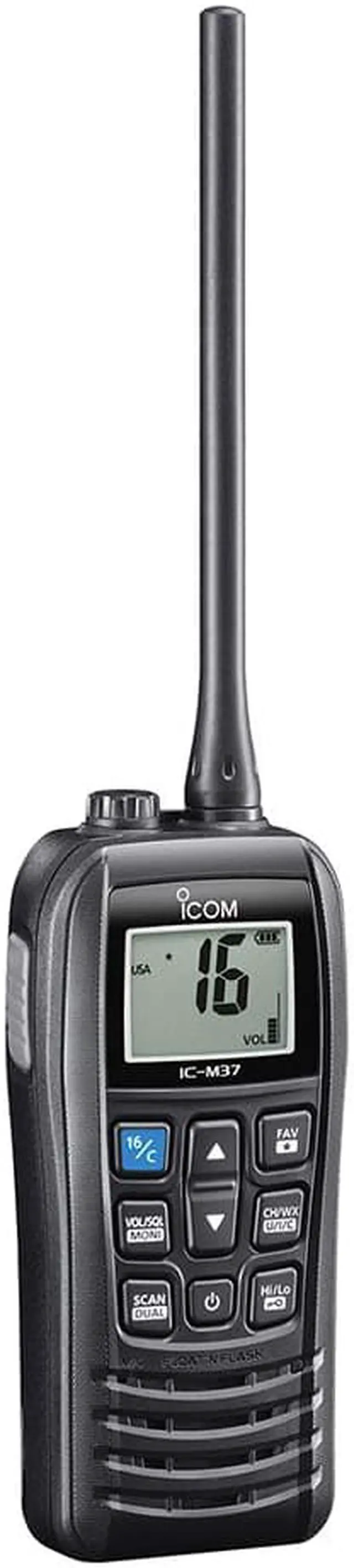

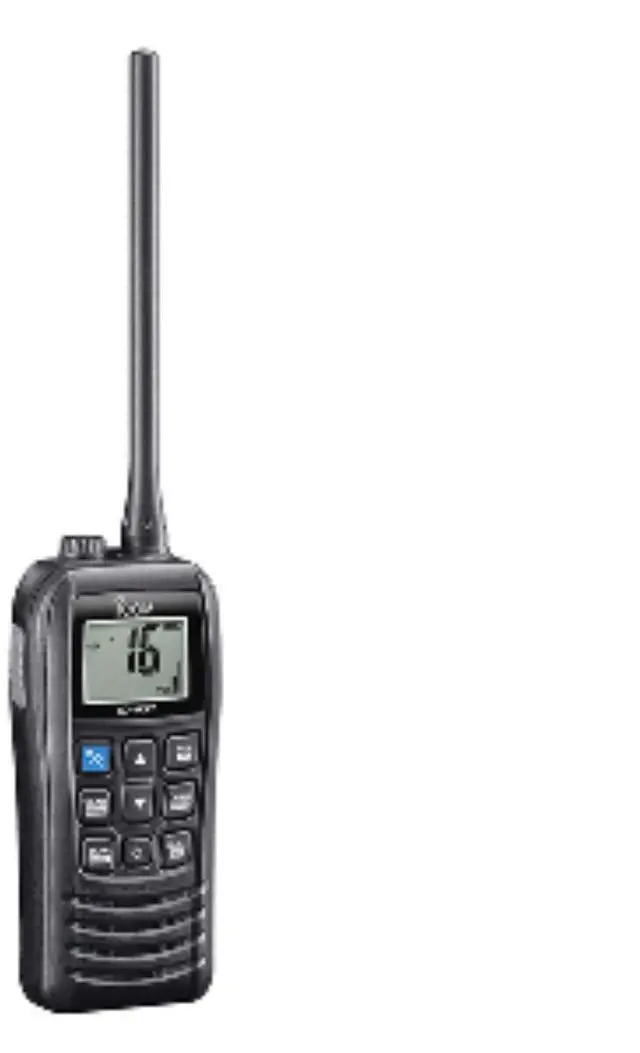

Icom M37 Hand Held VHF 6 Watt Floating

Icom M37 Hand Held VHF 6
Watt FloatingModel: M37 31 USAFloat’ n Flash function700mW audio outputLow battery alert functionDual/Tri-Watch functionInstant access to channel 16 and the Call channelWeather channels with weather alert functionDesigned for commercial and recreational boaters, the M37 comes with 6 watts of power for further communications range. The M37 includes all the great features in the M36, plus Icom’ s exclusive Float’ n Flash and a larger capacity standard battery. The M37 is the perfect size and has an easy-to-grip design with large keys. A bigger LCD screen shows large channel numbers and status icons for easy readability. Icom is proud to include the channel history function in an entry level marine handheld. This feature stores the last five channels used for easy recall at the press of a single button. SpecificationsFrequency RangeTx 156.025 — 157.425 MHzRx 156.050 — 163.275 MHzUsable channelsINT, USA, CAN, WX channelsCurrent drain (at 7.4V DC) Tx ( 6.0 W/ 1.0 W output) 2.75 A/ 1.0 A Rx (Max. audio. Inter SP/Exter SP) 0.4 A/ 0.2 AOperating temperature range-20° C to +60° C; -4° F to +140° FAntenna Impedance50? (Projections not included) 2.4 5.5 1.5 in (with BP-296)Weight (approx.

)293 g, 10.3 oz (with BP-296, antenna and belt clip)Output power (Hi/Low)6W (High), 1W (Low) Max. frequency deviation± 5 kHzFrequency stability± 10 ppmSpurious emissions— 68d Bc typicalSensitivity (at 12dB SINAD) 6W (High), 1W (Low) Max. frequency deviation± 5 kHzFrequency stability± 10 ppmSpurious emissions— 68d Bc typicalSensitivity (at 12dB SINAD) 0.25 µ V typicalSquelch sensitivity (Threshold) 0.25 µ V typicalAdjacent Channel Selectivity70dB typicalSpurious response70dB typicalIntermodulation70dB typicalHum and noise40dB typicalAudio output power (at 10% distortion)Internal speaker 0.7 W typical (8? load)External speaker 0.3 W typical (8? load)Ingress Protection StandardWaterIP57 dust protection and waterproof protection (1 m depth of water for 30 minutes) Dimensions 59.7 140.5 38.7 mmWhat's in the
Box: M37 RadioBP-296 battery pack BC-217SA/SE* AC adapterMB-133 belt clipBC-235 desktop chargerFA-SC59V antennaHand strap
