What is the power requirement for the Algo 8186 PoE SIP Paging Speaker?

The speaker requires 48 V PoE IEEE 802.3af Class 0 and has a maximum power consumption of 12.95W.

What type of speaker is used in the Algo 8186 PoE SIP Paging Speaker?

The Algo 8186 features a double re-entrant horn speaker.

double click image to zoom in

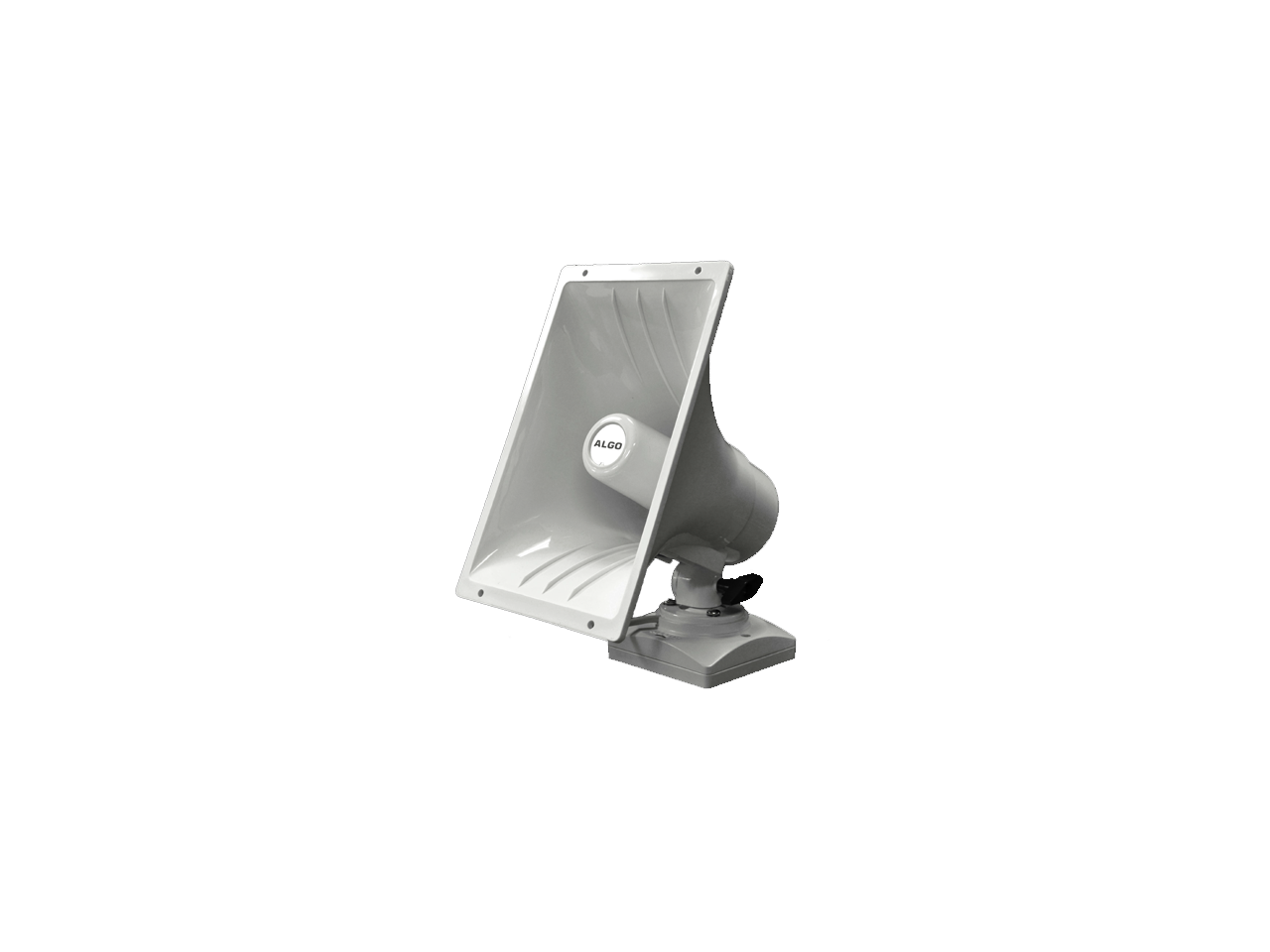

Algo 8186 PoE SIP Paging Speaker and IP Loud Ringer

Internal Memory - 1 GByte
Power - 48 V PoE IEEE 802.3af Class 0
Speaker - Double re-entrant horn speaker
Relay Output - Normally open or normally closed dry contact supervision. Algo 1202 Button, Algo 1203 Switch, EOL resistor termination.
Compliance - EN60950:2001, IEEE 802.3-2008, RFC3261, RoHS, CE, FCC Class B, CISPR 22 Class B, CISPR 24, CSA/UL
Multiple SIP Registrations for Voice Paging or Notification
SIP Page & Zoned Multicast Stream, Zoned Multicast Receive, SIP Loud Ringer Alert
High Volume Audio Output at 110 dBA 1m/1W (1 kHz)
Requires PoE - IEEE 802.3af Class 0 / Max 12.95W - Idle nominal 2.0W
Mounts to Wall or 2 Gang Weatherproof Electrical Box (not included)
