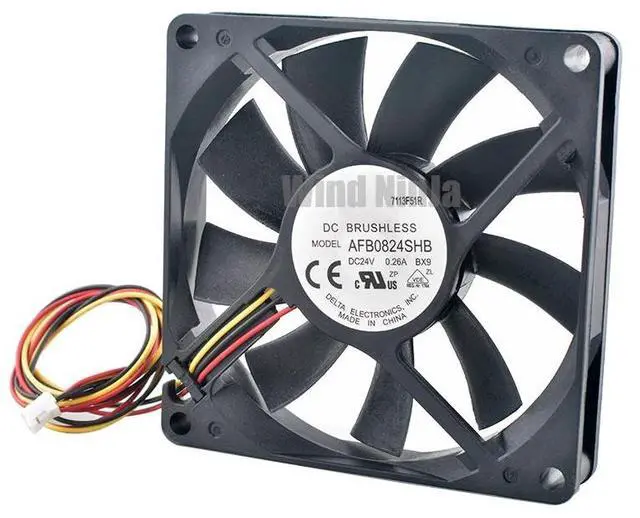

Main image of AFB0824SHB 8cm Dual Ball Bearing Cooling Fan (80x80x15mm), 24V, 0.26A, 4000rpm. Suitable for inverters and computer hardware cooling.

Shop All Traditions (Generic) Products | Visit Jiujishangmao Store

AFB0824SHB 8cm Dual Ball Bearing Cooling Fan (80x80x15mm), 24V, 0.26A, 4000rpm. Suitable for inverters and computer hardware cooling.

AFB Series Component Status: Enabled Rated Voltage: 24 VDC Dimensions: Square - 80mm L x 80mm H Width: 15.00mm Airflow: 42.73 CFM (1.210 m³/min) Static Pressure: 0.216 inch HJ (5.49 mm HJ) Bearing Type: Ball Bearing Fan Type: Axial Characteristics: Noise: 42.5 dB(A) Power: 4.08 W Speed: 4000 RPM Wiring: 2 Leads Protection Rating: -- Operating Temperature: -10~+60 Weight: 58g Rated Current: 0.26 A Rated Voltage: -- Frame Material: Plastic Blade Material: -- Service Life (Temperature): 70,000 hours (40)

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

AFB Series Component Status: Enabled
Rated Voltage: 24
VDC Dimensions: Square - 80mm L x 80mm
H Width: 15.00 mm
Airflow: 42.73 CFM ( 1.210 m³/min)
Static Pressure: 0.216 inch HJ ( 5.49 mm HJ)
Bearing Type: Ball Bearing
Fan Type: Axial
Characteristics:
Noise: 42.5 dB (A)
Power: 4.08
W Speed: 4000
RPM Wiring: 2 Leads
Protection Rating: --
Operating Temperature: -10~+60
Weight: 58g
Rated Current: 0.26
A Rated Voltage: --
Frame Material: Plastic
Blade Material: --
Service Life (Temperature): 70, 000 hours (40)
