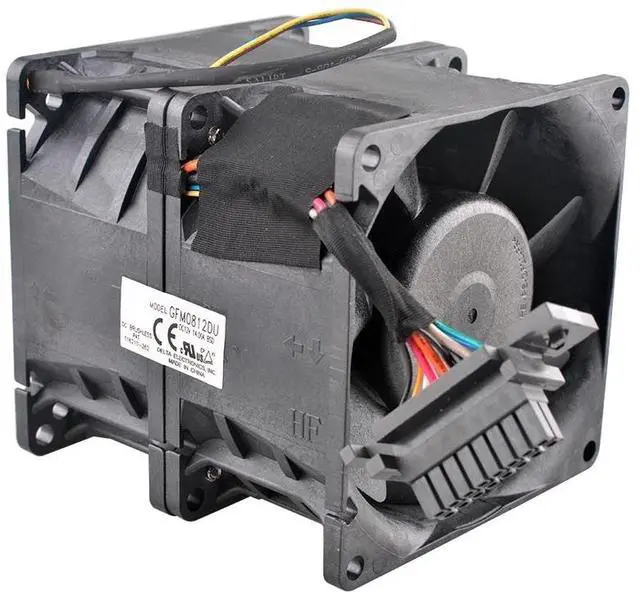

GFM0812DU High-Speed Axial Cooling Fan, 8cm x 80mm, DC12V 14.00A 13800rpm, suitable for server charging docks (80x80x86mm).
- Rated voltage: 12 VDC; Operating voltage: 10.8 12.6 VDC; Input current (average): 9.0 (maximum 10.8) A; Tag safety current: 14.00 A; Input power (average): 108.0 (maximum 129.6) W; Speed: Front 13800 10% RPM; Rear 13200 10% RPM maximum. Airflow (at zero static pressure): 5.398 m³/min (minimum 4.858); 190.63 ft/min (minimum 171.57); Maximum air pressure (at zero airflow): 146.04 mmH2O (minimum 118.29); 5.749 ftH2O (minimum 4.657); Acoustic noise (average): 82.5 dB-A (maximum 86.5); Insulation type: UL Class A; Vibration (fundamental frequency): Overall (radial, axial) <0.90 g; Insulation strength: 10 megohms, minimum. Dielectric strength at 500VDC (between rack and positive): 5 mA maximum. Expected life (L10) at rated voltage (between rack and positive) for one minute at 500VAC 50/60Hz: 70,000 hours of continuous operation at 40°C and 15%~65%RH. Overcurrent protection: The current will stop when the rotor is locked and fixed.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Rated voltage: 12 VDC;
Operating voltage: 10.8 12.6 VDC;
Input current (average): 9.0 (maximum 10.8 ) A;
Tag safety current: 14.00 A;
Input power (average): 108.0 (maximum 129.6 ) W;
Speed: Front 13800 10% RPM; Rear 13200 10% RPM maximum.
Airflow (at zero static pressure): 5.398 m³/min (minimum 4.858 ); 190.63 ft/min (minimum 171.57 ); Maximum air pressure (at zero airflow): 146.04 mmH2O (minimum 118.29 ); 5.749 ftH2O (minimum 4.657 );
Acoustic noise (average): 82.5 dB-A (maximum 86.5 );
Insulation type: UL Class A;
Vibration (fundamental frequency): Overall (radial, axial) < 0.90 g;
Insulation strength: 10 megohms, minimum. Dielectric strength at 500VDC (between rack and positive): 5 mA maximum. Expected life (L10) at rated voltage (between rack and positive) for one minute at 500VAC 50/60Hz: 70, 000 hours of continuous operation at 40°C and 15%~65%RH.
Overcurrent protection: The current will stop when the rotor is locked and fixed.
Operating voltage: 10.8 12.6 VDC;
Input current (average): 9.0 (maximum 10.8 ) A;
Tag safety current: 14.00 A;
Input power (average): 108.0 (maximum 129.6 ) W;
Speed: Front 13800 10% RPM; Rear 13200 10% RPM maximum.
Airflow (at zero static pressure): 5.398 m³/min (minimum 4.858 ); 190.63 ft/min (minimum 171.57 ); Maximum air pressure (at zero airflow): 146.04 mmH2O (minimum 118.29 ); 5.749 ftH2O (minimum 4.657 );
Acoustic noise (average): 82.5 dB-A (maximum 86.5 );
Insulation type: UL Class A;
Vibration (fundamental frequency): Overall (radial, axial) < 0.90 g;
Insulation strength: 10 megohms, minimum. Dielectric strength at 500VDC (between rack and positive): 5 mA maximum. Expected life (L10) at rated voltage (between rack and positive) for one minute at 500VAC 50/60Hz: 70, 000 hours of continuous operation at 40°C and 15%~65%RH.
Overcurrent protection: The current will stop when the rotor is locked and fixed.
