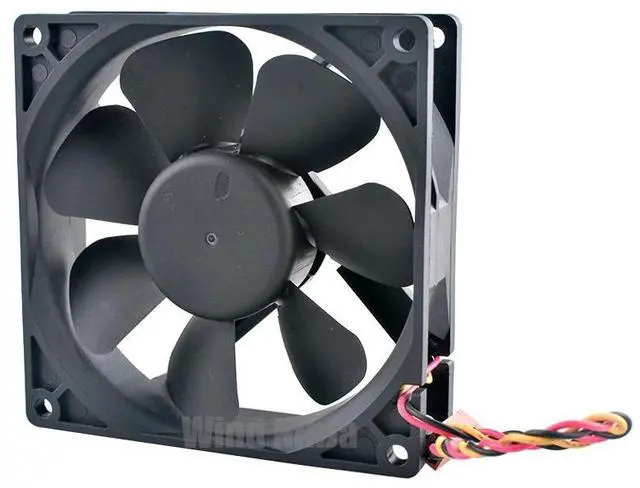

Main image of DSB0912M 92mm Cooling Fan (9.2cm, 92x92x25mm), DC12V 0.19A, 3-pin connector, 2500 RPM. Suitable for CPU and power supply cooling in computer cases.

Shop All Traditions (Generic) Products | Visit Jiujishangmao Store

DSB0912M 92mm Cooling Fan (9.2cm, 92x92x25mm), DC12V 0.19A, 3-pin connector, 2500 RPM. Suitable for CPU and power supply cooling in computer cases.

Dimensions: 90*90*25mm; Hole Spacing: 8cm; Rated Voltage: 12V; Operating Range: 7~13.8V; Rated Current: 0.19A; Input Power: 2.28W; Maximum Speed: 2500RPM (5%); Maximum Airflow: 51.21CFM (1.450m³/min); Maximum Static Pressure: 49Pa (0.177HO); Noise Level: 28dB; Interface: Motherboard 3-P connector with speed measurement function; Cable Length: 13cm; Applications: Industrial equipment cooling, chassis cooling modification, CPU cooler fan, and other cooling applications.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Dimensions: 90*90*25mm;
Hole Spacing: 8cm;
Rated Voltage: 12V;
Operating Range: 7~ 13.8V;
Rated Current: 0.19A;
Input Power: 2.28W;
Maximum Speed: 2500RPM (5%);
Maximum Airflow: 51.21CFM ( 1.450 m³/min); Maximum
Static Pressure: 49Pa ( 0.177HO );
Noise Level: 28dB;
Interface: Motherboard 3-P connector with speed measurement function;
Cable Length: 13cm;
Applications: Industrial equipment cooling, chassis cooling modification, CPU cooler fan, and other cooling applications.
