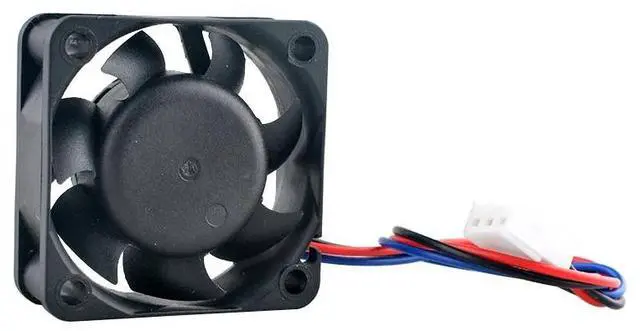

(2 units) AFB0412SHB 3620424811 40mm fan (40x40x15mm), DC12V 0.35A, 3-pin, 11000rpm, dual ball bearing cooling fan, suitable for switches and routers.
- AFB Series Rated Voltage: 12VDC Dimensions: Square - 40mm (L) x 40mm (H) Width: 15.00mm Airflow: 14.83 CFM (0.420 m³/min) Static Pressure: 0.601 inch water column (15.26 mm water column) Bearing Type: Ball bearing Fan Type: Axial flow Characteristics: Noise: 41.5 dB(A) Power: 3.00 W Speed: 11000 RPM Wiring: 3 leads Protection Rating: -- Operating Temperature: -10~+70 Weight: 25.0g Rated Current: 0.25 A Rated Voltage: 7.0 - 13.8 VDC Material: Frame: Plastic Material: Blades: Plastic Service Life (Temperature): 70000 hours (40)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AFB Series Rated Voltage: 12VDC
Dimensions: Square - 40mm (L) x 40mm (H)
Width: 15.00 mm
Airflow: 14.83 CFM ( 0.420 m³/min)
Static Pressure: 0.601 inch water column ( 15.26 mm water column)
Bearing Type: Ball bearing
Fan Type: Axial flow
Characteristics:
Noise: 41.5 dB (A)
Power: 3.00
W Speed: 11000
RPM Wiring: 3 leads
Protection Rating: --
Operating Temperature: -10~+70
Weight: 25.0 g
Rated Current: 0.25
A Rated Voltage: 7.0 - 13.8
VDC Material:
Frame: Plastic
Material:
Blades: Plastic
Service Life (Temperature): 70000 hours (40)
Dimensions: Square - 40mm (L) x 40mm (H)
Width: 15.00 mm
Airflow: 14.83 CFM ( 0.420 m³/min)
Static Pressure: 0.601 inch water column ( 15.26 mm water column)
Bearing Type: Ball bearing
Fan Type: Axial flow
Characteristics:
Noise: 41.5 dB (A)
Power: 3.00
W Speed: 11000
RPM Wiring: 3 leads
Protection Rating: --
Operating Temperature: -10~+70
Weight: 25.0 g
Rated Current: 0.25
A Rated Voltage: 7.0 - 13.8
VDC Material:
Frame: Plastic
Material:
Blades: Plastic
Service Life (Temperature): 70000 hours (40)
