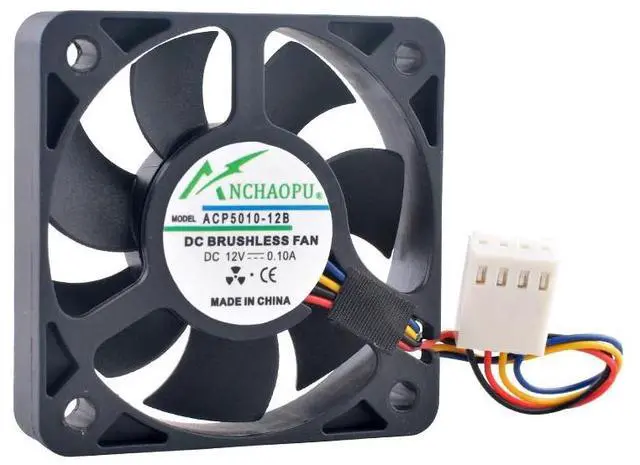

ACP5010-12B Dual Ball Bearing PWM Fan, 50x50x10mm, DC12V, 0.1A, 8000RPM, suitable for industrial embedded chassis, motherboard, and CPU cooling.

Model ACP5010-12B Dimensions: 50x50x10mm (L x W x H)
Operating Voltage: DC12V 10%
Rated Current: 0.1A
Interface Type: 4-pin PWM intelligent speed control
Speed Range: 2000~8000 RPM (PWM control)
Bearing Type: Dual ball bearing
Maximum Airflow: 8.5 CFM
Noise Level: 28 dBA (@ 5000 RPM)
Product Highlights: Industrial-grade heat dissipation performance; 8000
RPM rapid heat dissipation: Handles continuous high loads in industrial equipment, instantly reducing temperature by 10-15. 4-pin
PWM precise speed control: Supports 0-100% stepless speed regulation, power adaptive (30% energy saving compared to 3-pin fans). Ultra-long lifespan design, dual
ball bearing structure: Mean Time Between Failures (MTBF) up to 100, 000 hours, high temperature resistance up to
85.
Applicable scenarios: Industrial
control equipment: PLC controllers, HMI human-machine interfaces, servo drives;
Embedded systems: Raspberry Pi clusters, edge computing gateways, digital signage;
Motherboard/chassis heat dissipation: 1U servers, industrial control motherboards, NAS storage;
Special applications: laser printer fuser units, heat dissipation modules.
