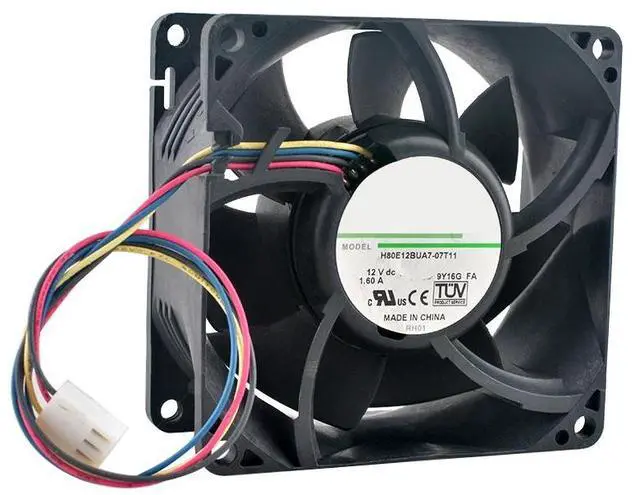

H80E12BUA7-07T11 8cm (80mm) fan, 80x80x38mm, DC12V 1.60A 4-pin 8000rpm high-speed axial fan for charging stations and cooling.
- H80E12BUA7-07T11 Origin: China Dimensions: 80 * 80 * 38mm Rated Voltage: 12V Operating Voltage: 10.2-13.8V Rated Current: 1.60A Input Power: 20.76W Speed: 7800RPM, supports 5% PWM intelligent speed control Connector: Standard motherboard 4-pin interface, cable length approx. 20cm Fan Frame: One-piece injection molding, PBT + 30% glass fiber + V0 flame retardant; Fan Blades: One-piece injection molding, PBT + 30% glass fiber + V0 flame retardant; Fan Rotation Direction: Counterclockwise when viewed from the fan blade direction; Operating Temperature: -10 to 170; Storage Temperature: -40 to +70; Bearing: High-precision double ball bearing; Power Supply Range: ±15% of rated power; Insulation Resistance: Greater than 500 megohms; Withstand Voltage: Leakage current 0.5mA, 500V/1 minute
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
H80E12BUA7-07T11 Origin: China
Dimensions: 80 * 80 * 38mm
Rated Voltage: 12V
Operating Voltage: 10.2 - 13.8V
Rated Current: 1.60A
Input Power: 20.76W
Speed: 7800RPM, supports 5% PWM intelligent speed control
Connector: Standard motherboard 4-pin interface, cable length approx.
20cm Fan Frame: One-piece injection molding, PBT + 30% glass fiber + V0 flame retardant;
Fan Blades: One-piece injection molding, PBT + 30% glass fiber + V0 flame retardant;
Fan Rotation Direction: Counterclockwise when viewed from the fan blade direction;
Operating Temperature: -10 to 170;
Storage Temperature: -40 to +70;
Bearing: High-precision double ball bearing;
Power Supply Range: ±15% of rated power;
Insulation Resistance: Greater than 500 megohms;
Withstand Voltage: Leakage current 0.5 mA, 500V/1 minute
Dimensions: 80 * 80 * 38mm
Rated Voltage: 12V
Operating Voltage: 10.2 - 13.8V
Rated Current: 1.60A
Input Power: 20.76W
Speed: 7800RPM, supports 5% PWM intelligent speed control
Connector: Standard motherboard 4-pin interface, cable length approx.
20cm Fan Frame: One-piece injection molding, PBT + 30% glass fiber + V0 flame retardant;
Fan Blades: One-piece injection molding, PBT + 30% glass fiber + V0 flame retardant;
Fan Rotation Direction: Counterclockwise when viewed from the fan blade direction;
Operating Temperature: -10 to 170;
Storage Temperature: -40 to +70;
Bearing: High-precision double ball bearing;
Power Supply Range: ±15% of rated power;
Insulation Resistance: Greater than 500 megohms;
Withstand Voltage: Leakage current 0.5 mA, 500V/1 minute
