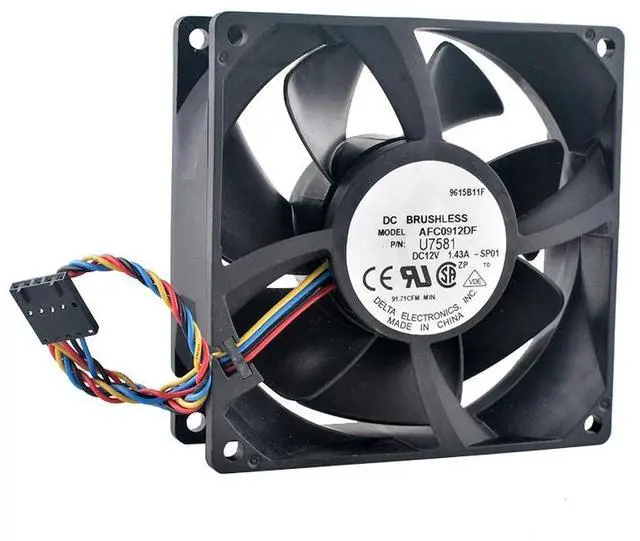

AFC0912DF U7581 9.2cm (92mm) Fan 92x92x32mm DC12V 1.43A 5000rpm
- Rated voltage: 12 VDC; Operating voltage: 10.8-12.6 VDC; Input current: 0.82 (max: 0.98) A; Input power: 9.84 (max: 11.76) W; Speed: 5000 RPM (reference value); Maximum airflow (zero static pressure): 2.885 (min: 2.597) m³/min, 101.90 (min: 91.71) CFM; Maximum air pressure (zero airflow): 15.28 (min: 12.38) mmH, 0.602 (min: 0.488) inchHO; Noise (average): 51.3 (max: 55.3) dB-A; Current indicated on label: 1.43 A; Insulation strength: Minimum 10 megohms (500 V DC, between frame and positive terminal); Dielectric strength: Maximum 5 mA (500 V AC, 60 Hz, continuous 1... (Minutes, between frame and positive terminal) Expected lifespan: 70,000 hours of continuous operation at 40 and 15%~65% relative humidity. Wires: Blue wire for frequency (FOO); Red wire for positive (+); Black wire for negative (-); Yellow wire for control (PWM).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Rated voltage: 12 VDC;
Operating voltage: 10.8 - 12.6 VDC;
Input current: 0.82
(max: 0.98 ) A;
Input power: 9.84
(max: 11.76 ) W;
Speed: 5000 RPM (reference value);
Maximum airflow (zero static pressure): 2.885
(min: 2.597 ) m³/min, 101.90
(min: 91.71 ) CFM;
Maximum air pressure (zero airflow): 15.28
(min: 12.38 ) mmH, 0.602
(min: 0.488 ) inchHO;
Noise (average): 51.3
(max: 55.3 ) dB-A;
Current indicated on label: 1.43 A;
Insulation strength: Minimum 10 megohms (500 V DC, between frame and positive terminal);
Dielectric strength: Maximum 5 mA (500 V AC, 60 Hz, continuous 1... (Minutes, between frame and positive terminal)
Expected lifespan: 70, 000 hours of continuous operation at 40 and 15%~65% relative humidity.
Wires: Blue wire for frequency (FOO); Red wire for positive (+); Black wire for negative (-); Yellow wire for control (PWM).
Operating voltage: 10.8 - 12.6 VDC;
Input current: 0.82
(max: 0.98 ) A;
Input power: 9.84
(max: 11.76 ) W;
Speed: 5000 RPM (reference value);
Maximum airflow (zero static pressure): 2.885
(min: 2.597 ) m³/min, 101.90
(min: 91.71 ) CFM;
Maximum air pressure (zero airflow): 15.28
(min: 12.38 ) mmH, 0.602
(min: 0.488 ) inchHO;
Noise (average): 51.3
(max: 55.3 ) dB-A;
Current indicated on label: 1.43 A;
Insulation strength: Minimum 10 megohms (500 V DC, between frame and positive terminal);
Dielectric strength: Maximum 5 mA (500 V AC, 60 Hz, continuous 1... (Minutes, between frame and positive terminal)
Expected lifespan: 70, 000 hours of continuous operation at 40 and 15%~65% relative humidity.
Wires: Blue wire for frequency (FOO); Red wire for positive (+); Black wire for negative (-); Yellow wire for control (PWM).
