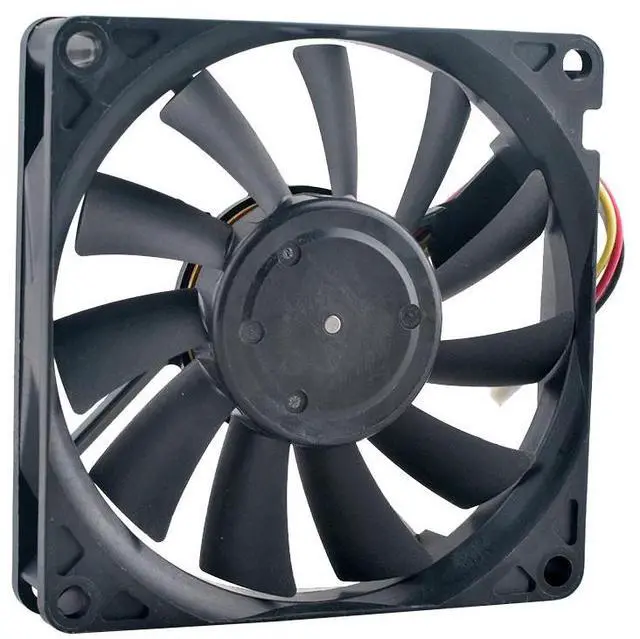

8cm (80mm) fan U80R12MLAB-58, silent axial cooling fan, DC12V 0.12A 4-pin, suitable for projectors, dimensions 80x80x15mm.
- Model: U80R12MLAB-58 Dimensions: 80×80×15MM Voltage: DC12V Current: 0.12A Power: 1.44W Speed: 2250RPM Airflow: 23CFM Air Pressure: 2.3mmH2O Noise: 24dB-A Functions: Supports speed measurement and alarm functions Bearing Type: Hydraulic bearing Wiring: Red wire is positive, black wire is negative, yellow wire is speed measurement wire, white wire is alarm wire (PWM not supported) Service Life: Expected to last 50,000 hours at 25 Operating Temperature Range: -20~70
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: U80R12MLAB-58
Dimensions: 80×80×15MM
Voltage: DC12V
Current: 0.12A
Power: 1.44W
Speed: 2250RPM
Airflow: 23CFM
Air Pressure: 2.3 mmH2O
Noise: 24dB-A
Functions: Supports speed measurement and alarm functions
Bearing Type: Hydraulic bearing
Wiring: Red wire is positive, black wire is negative, yellow wire is speed measurement wire, white wire is alarm wire (PWM not supported)
Service Life: Expected to last 50, 000 hours at 25
Operating Temperature Range: -20~70
Dimensions: 80×80×15MM
Voltage: DC12V
Current: 0.12A
Power: 1.44W
Speed: 2250RPM
Airflow: 23CFM
Air Pressure: 2.3 mmH2O
Noise: 24dB-A
Functions: Supports speed measurement and alarm functions
Bearing Type: Hydraulic bearing
Wiring: Red wire is positive, black wire is negative, yellow wire is speed measurement wire, white wire is alarm wire (PWM not supported)
Service Life: Expected to last 50, 000 hours at 25
Operating Temperature Range: -20~70
